EQUIPMENT DETAILS

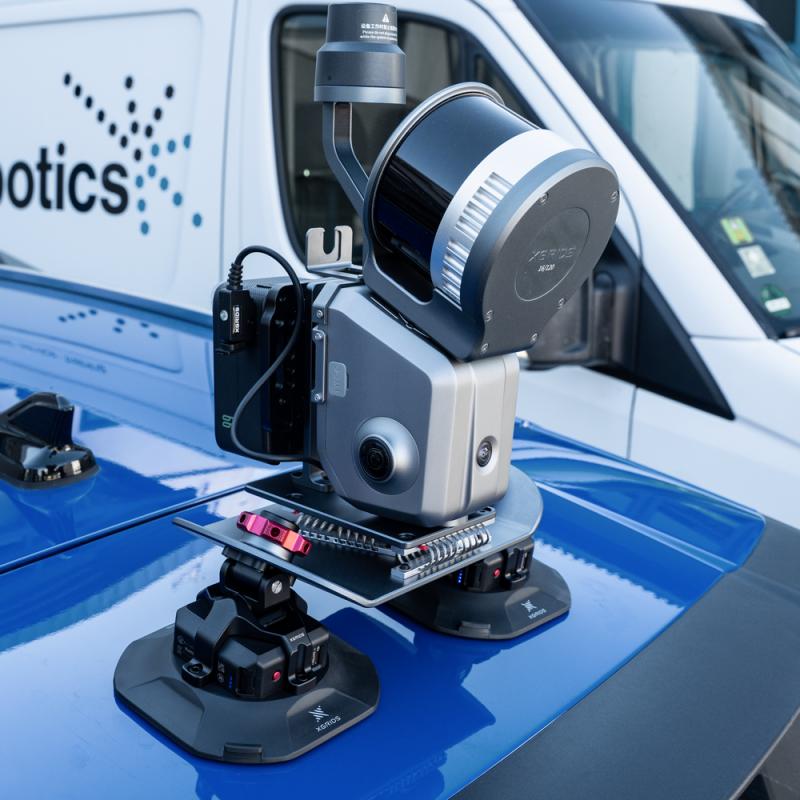

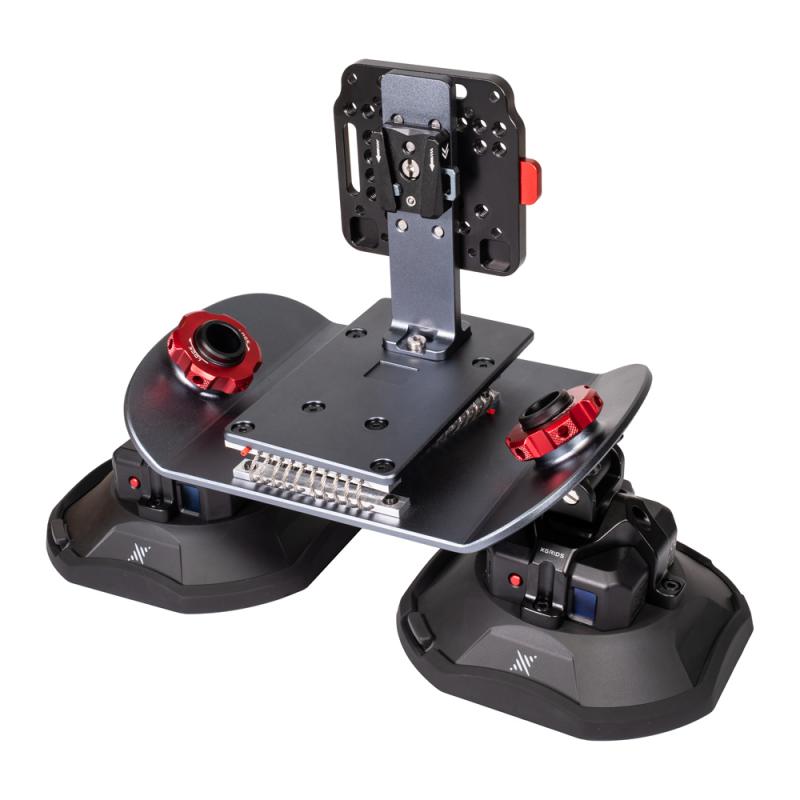

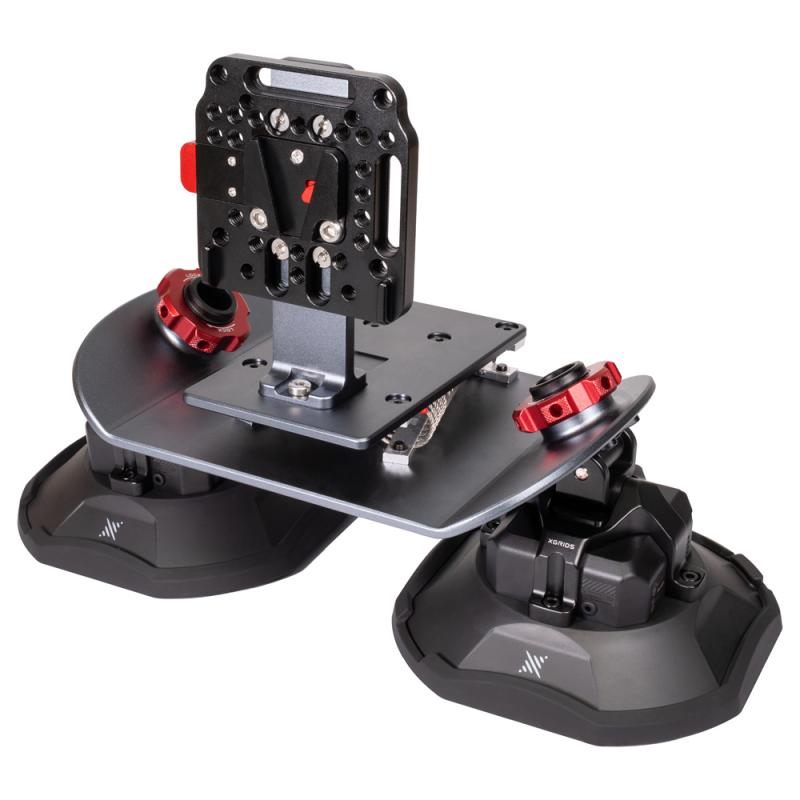

With the new vehicle mount for the Lixel L2 Pro, XGRIDS provides a secure and stable solution for mounting the mobile laser scanner on vehicles — ideal for road mapping, infrastructure surveying, and urban planning where large areas must be captured efficiently and accurately.

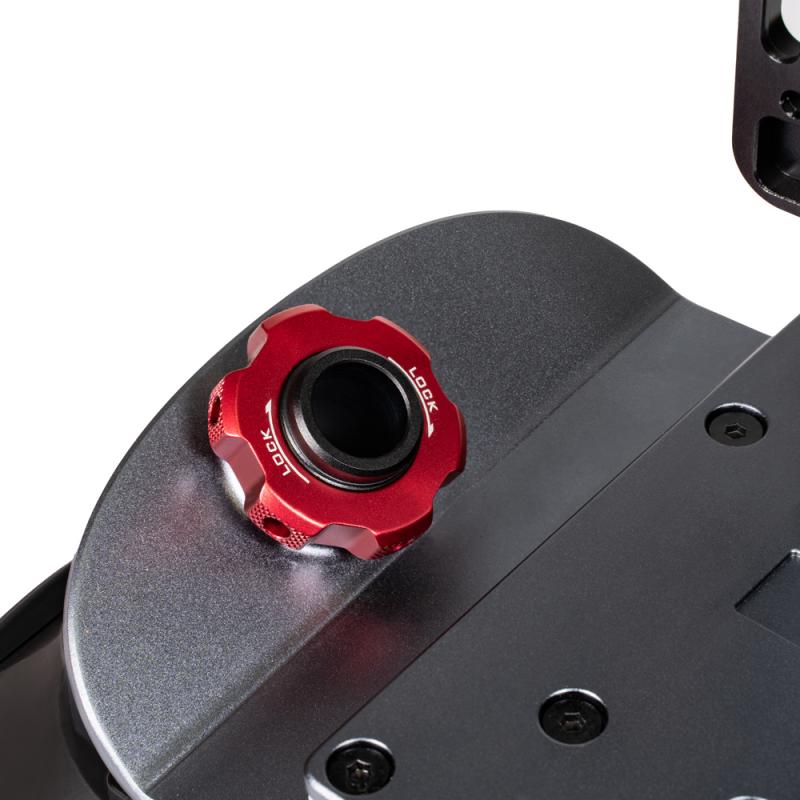

Thanks to the robust suction cup mount with real-time monitoring, the system remains firmly fixed even at higher speeds. The live point cloud preview allows immediate data checking while driving, helping detect gaps instantly and reduce post-processing effort.

Product characteristics

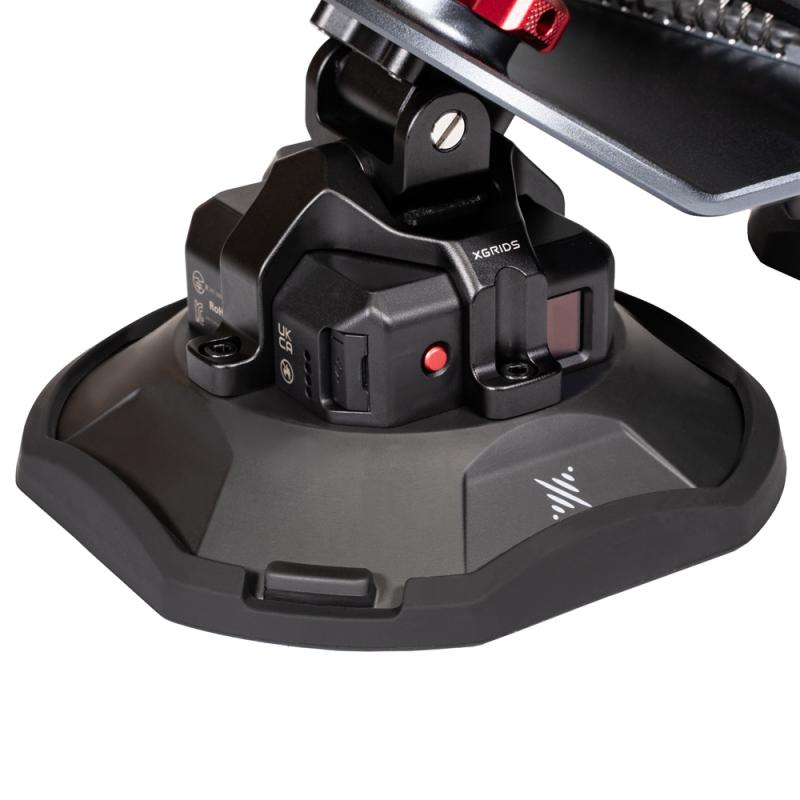

• Intelligent suction mounting with monitoring system
• Live real-time point cloud preview
• Supports point cloud coloring for improved visualization
• Up to 3 hours of operating time per battery charge
• Mount weight: 1,964 g

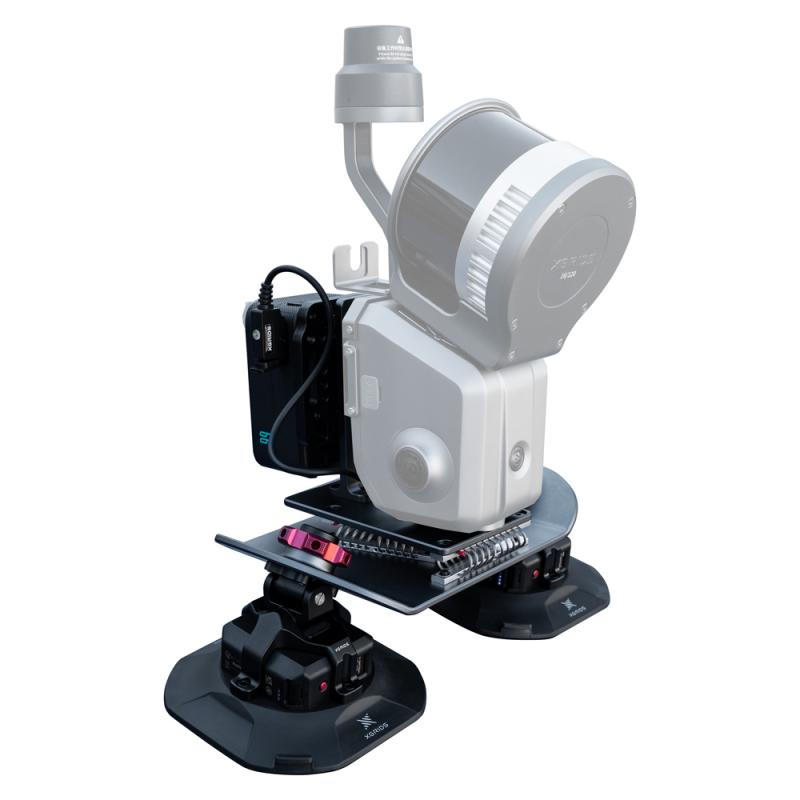

• Total system weight (mount + battery + L2 Pro): 4,413 g
• RTK support for high-accuracy positioning
• Recommended driving speed: 20–30 km/h
• Maximum speed: 40 km/h

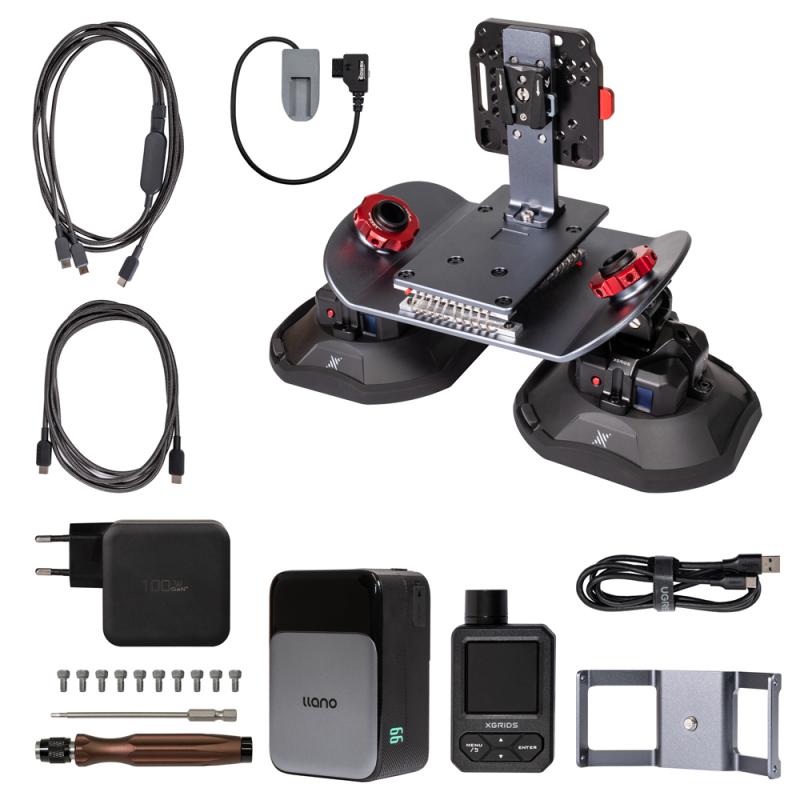

Delivery content

• 1× vehicle mount
• 1× battery for vehicle mount
• 1× battery cable
• 1× charging cradle
• 1× 3-in-1 cable
• 1× USB-C cable
• 1× wireless monitor
• 1× L2 Pro mount
• 1× screw set (incl. screwdriver)
• 1× user manual
