EQUIPMENT DETAILS

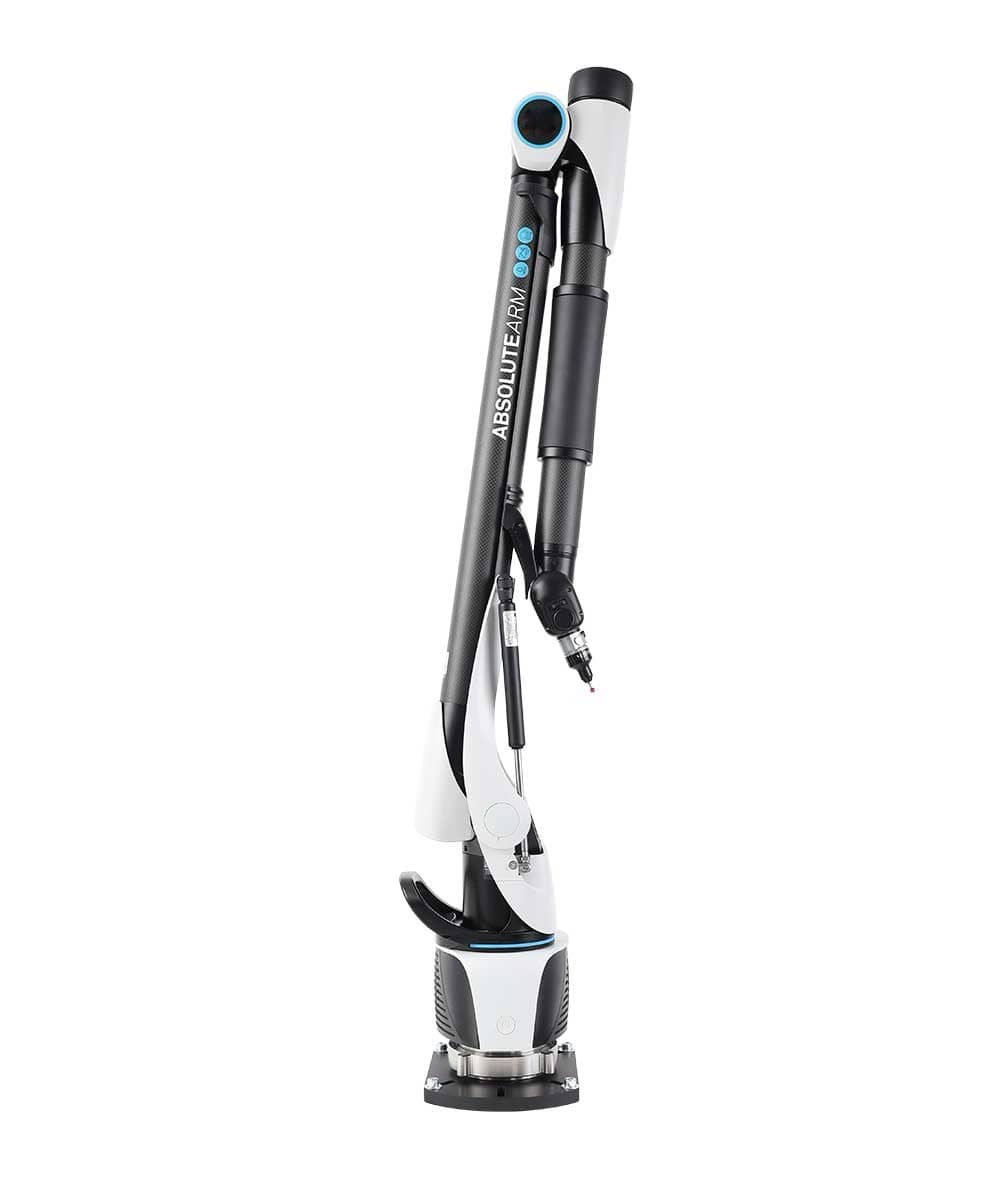

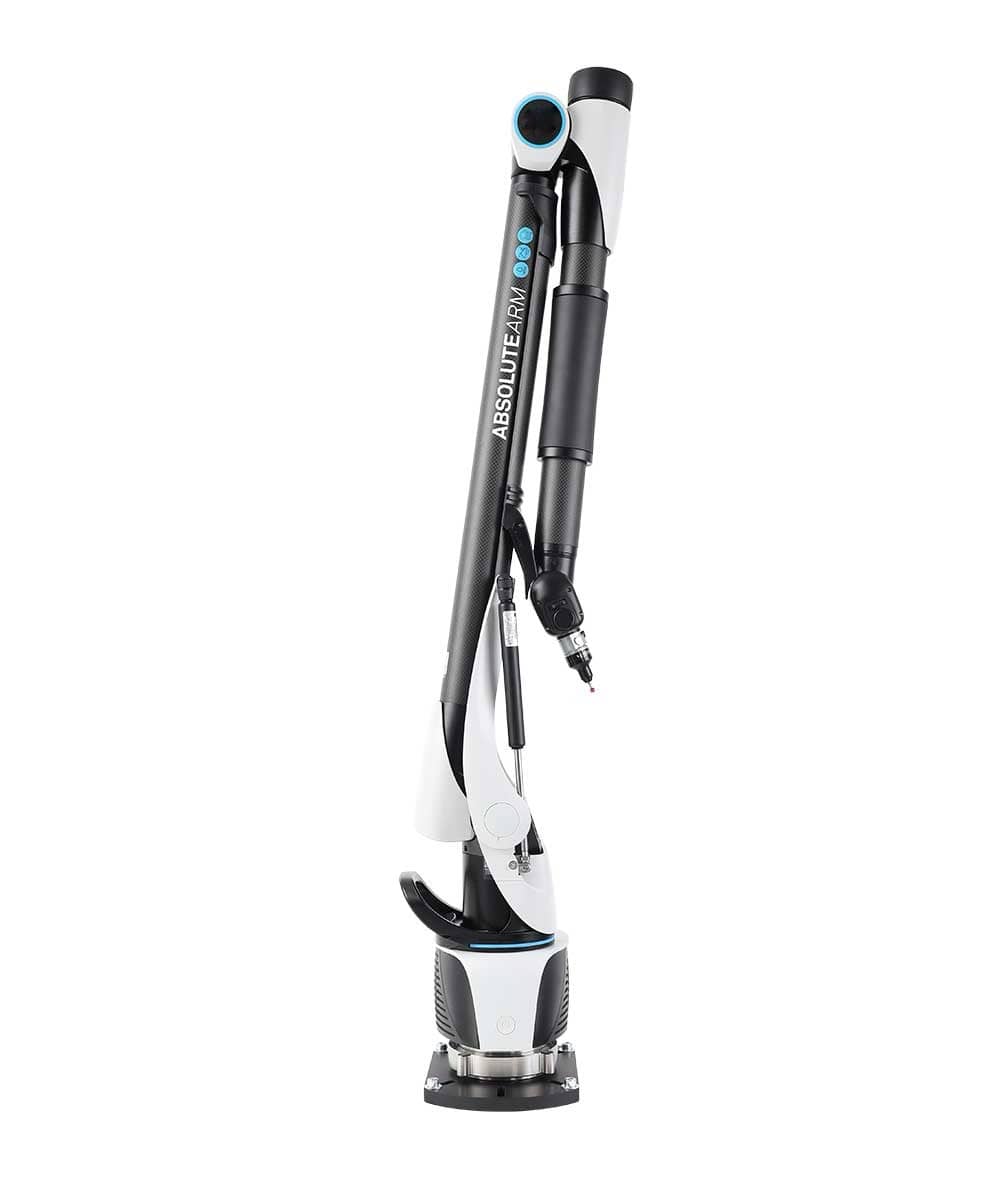

The Hexagon Absolute Arm V3P 8335 6-Axis is a high-performance portable coordinate measuring machine (CMM) designed for precise tactile inspection and measurement of medium-to-large components in industrial environments.

This configuration (Model 8335) belongs to the 83 Series and provides a 3.5 m measuring range (3.73 m max reach), making it ideal for applications requiring extended reach without compromising accuracy. It is particularly suited for inspection of large assemblies, tooling verification, and alignment tasks in manufacturing, aerospace, automotive, and heavy industry.

The 6-axis configuration is optimized for tactile probing, ensuring accurate point measurement and reliable dimensional analysis. The integrated Absolute Encoder technology eliminates the need for warm-up or referencing, allowing operators to start measuring immediately and maintain consistent performance throughout the workflow.

Constructed from high-quality carbon-fiber materials, the arm offers excellent rigidity and thermal stability, even under changing environmental conditions. The Zero-G counterbalance system significantly reduces operator fatigue and enhances control, ensuring precise measurements over long working sessions.

The Absolute Arm integrates seamlessly with leading metrology software platforms such as PolyWorks, SpatialAnalyzer, and PC-DMIS, enabling efficient inspection workflows and advanced reporting capabilities.

Key features include:

* Model-specific configuration: V3P 8335 (83 Series)
* Measuring range: 3.5 m (3.73 m max reach)
* High-precision tactile measurement (6-axis)
* Absolute encoders – instant readiness without referencing
* Carbon-fiber construction for stability and durability
* Zero-G counterbalance for ergonomic operation
* Portable and flexible CMM solution
* IP54-rated for industrial environments
* Compatible with industry-standard metrology software
