EQUIPMENT DETAILS

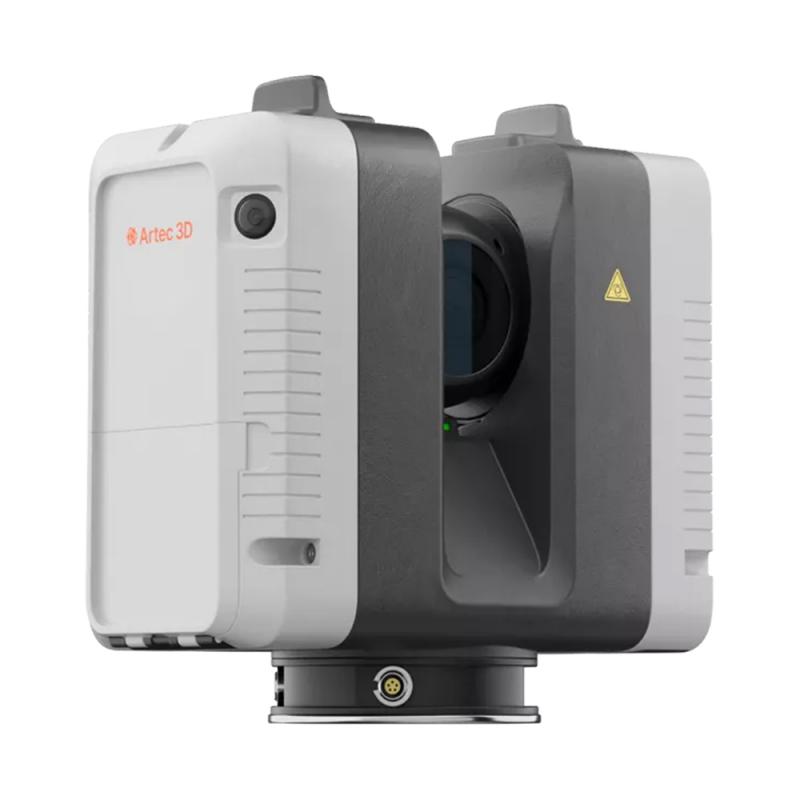

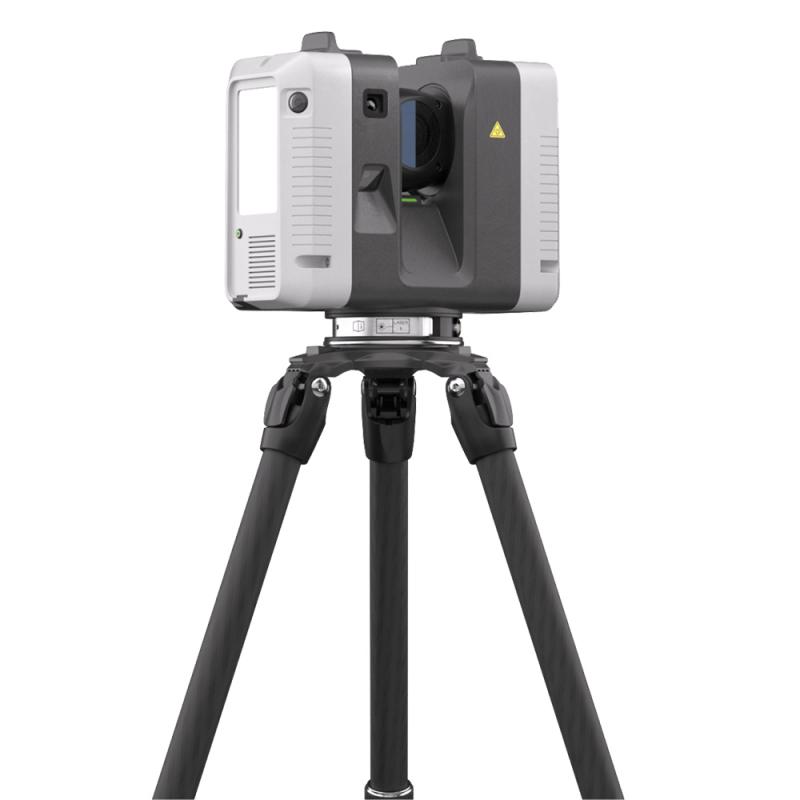

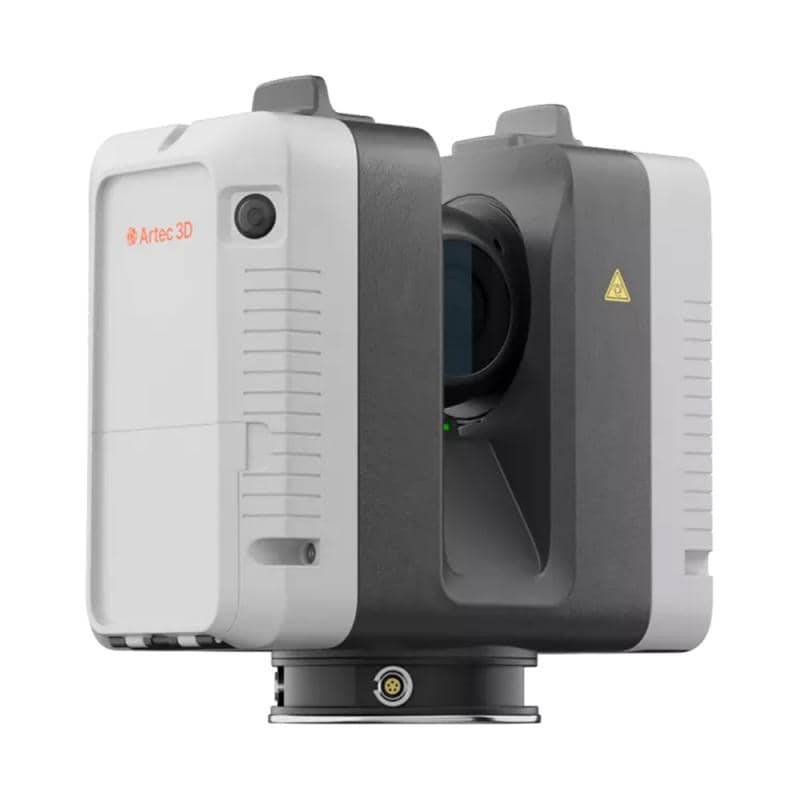

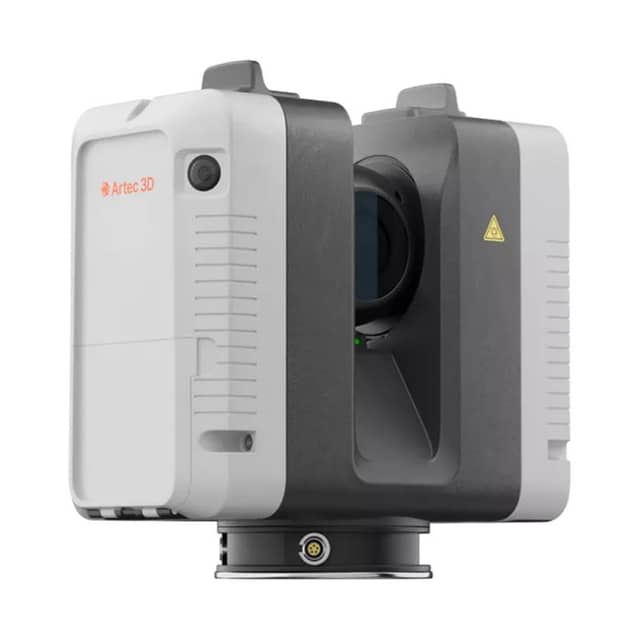

Lightning-Fast Long-Range Laser 3D Scanner with Metrology-Grade Accuracy

Artec Ray II is a high-precision, long-range wireless LiDAR 3D scanner designed for capturing large to massive objects, environments, and industrial facilities with exceptional accuracy and speed. Built for professional reverse engineering, inspection, digital twin creation, forensics, and civil infrastructure projects, Ray II delivers uncompromised performance from distances of up to 130 meters.

With metrology-grade precision, HDR texture capture, onboard control, and wireless operation, Artec Ray II is a powerful and fully portable solution for demanding large-scale 3D scanning tasks.

Key Features

Long-Range, High-Accuracy Scanning
• 3D point accuracy:
• 1.9 mm @ 10 m
• 2.9 mm @ 20 m
• 5.3 mm @ 40 m
• Angular accuracy: 18” (0.87 mm @ 10 m)
• Resolution settings: 3 / 6 / 12 mm @ 10 m
• Range: 0.5 – 130 m

Ray II meets strict professional standards for large-scale measurement and inspection.

Lightning-Fast Data Capture
• Up to 2,000,000 points per second
• Full dome capture at highest resolution in just 1.7 minutes
• Optimized scanning times with or without texture

Capture vehicles in minutes, aircraft and full-sized buildings in hours.

Brilliant HDR Texture
• 36 MP 3-camera system
• 432 MPx spherical image capture
• Automatic HDR (5 brackets)

Ray II produces true-to-life digital replicas with rich color detail — ideal for heritage preservation, forensic documentation, and digital twins.

Wireless & Fully Portable
• Integrated WiFi (802.11 b/g/n)
• Onboard touchscreen control (480 × 800 WVGA display)
• Artec Remote App (iOS & Android)
• Weight: 5.35 kg (without batteries)
• Hot-swappable battery system (up to 8 hours operation)
• IP54 water and dust protection

Set up in seconds. No targets required. No external computer needed.

Advanced Smart Features
• Real-time registration with Visual Inertial System (VIS)
• Automatic removal of moving objects
• Check & Adjust calibration procedure
• Integrated GNSS, altimeter, and compass
• Scan-to-CAD export via Artec Studio

Ray II automatically aligns scans and ensures stable, repeatable results across large environments.

Applications

Artec Ray II is ideal for:
• Civil infrastructure inspection (bridges, tunnels, dams)
• Aerospace & aviation
• Automotive & shipbuilding

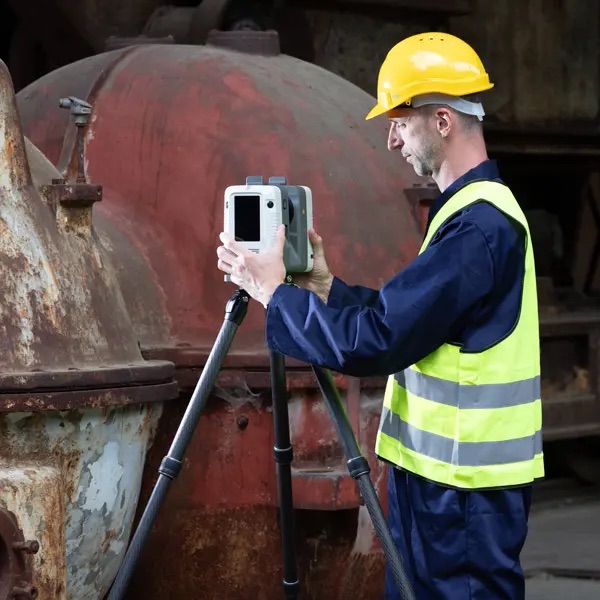

• Industrial facilities & factory floors
• Wind turbines & power plants
• Digital twin creation
• Reverse engineering
• Quality inspection

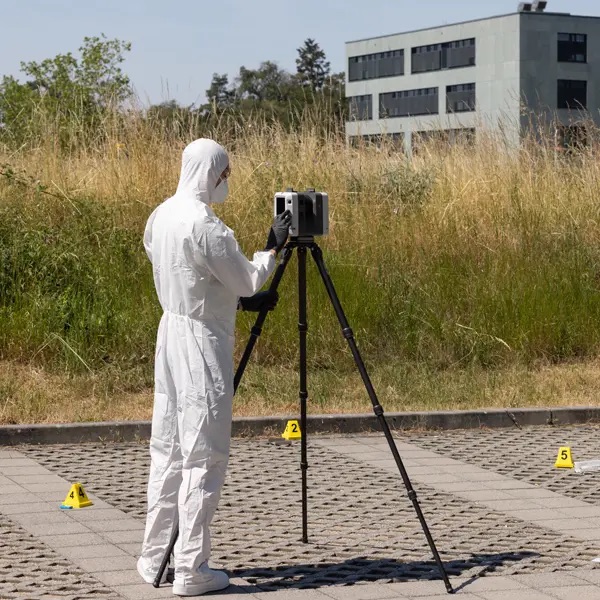

• Forensics & crime scene documentation
• Archaeology & heritage preservation
• Large-scale industrial design

Seamless Integration

Ray II integrates perfectly with:
• Artec Leo for detailed handheld scanning of specific areas
• All other Artec 3D scanners
• Artec Studio for processing, inspection, and Scan-to-CAD export
• SOLIDWORKS and other CAD platforms
• Geomagic Control X for inspection workflows

The combination of Ray II for large environments and Leo for detailed areas creates a powerful wireless scanning ecosystem.

Technical Overview
• Scanning technology: Time-of-Flight (WFD-enhanced)
• Laser class: Class 1 (1550 nm, eye-safe)
• Field of view: 360° horizontal / 300° vertical
• Operating temperature: -5°C to +40°C
• Data storage: 256 GB exchangeable USB 3.0

Why Choose Artec Ray II?

✔ Long-range scanning up to 130 meters
✔ Metrology-grade accuracy
✔ 2 million pts/sec capture speed
✔ Brilliant HDR color
✔ Fully wireless operation
✔ Onboard control & remote app
✔ Hot-swappable batteries
✔ Seamless integration with Artec ecosystem
