Professional Photogrammetry System for High-Precision Industrial Measurement

Artec Metrology Kit Entry is a professional optical coordinate measuring system designed for industrial inspection, reverse engineering, deformation analysis, and photogrammetry-assisted 3D scanning. Delivering metrology-grade precision with high volumetric accuracy, this solution integrates seamlessly into existing engineering workflows and operates both as a standalone optical system or as a referencing tool for 3D scanners.

Compact, portable, and easy to deploy, the Entry version provides reliable, certified measurement performance for demanding engineering environments.

Key Advantages

High-Precision Optical Measurement
• Point-based accuracy (RMS): up to 0.004 mm + 0.006 mm/m
• Length measurement accuracy (MPE):
0.025 mm + 0.025 mm × length (m)
• Volumetric accuracy with Artec scanners:
• Artec Leo / Eva: 0.125 mm + 0.025 mm/m
• Artec Space Spider: 0.075 mm + 0.025 mm/m

The system provides reliable repeatable results suitable for industrial inspection and dimensional verification.

Professional Photogrammetry Workflow
• 20 MP digital camera (Canon EOS 6D)
• 28 mm AICON metric wide-angle lens
• Field of view: 65° × 46°
• White-light flash illumination
• Capture speed: up to 4 images per second

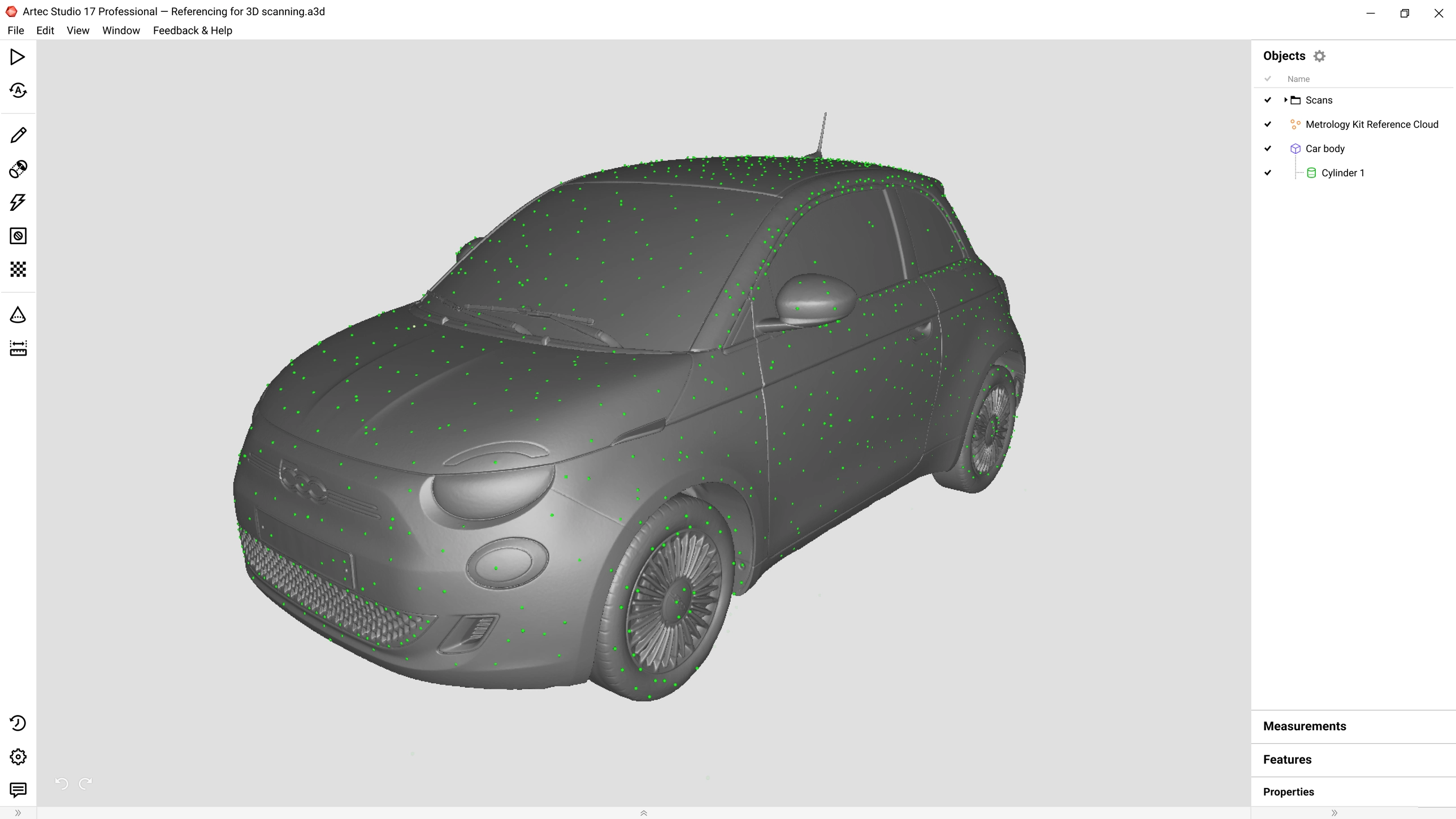

Using the Metrology Kit plugin in Artec Studio, you can generate a highly accurate target cloud and combine it with 3D scanning data in a unified workflow.

Standalone or Referencing Tool

The Entry version can be used as:

✔ A standalone optical measurement system
✔ A volumetric accuracy enhancement tool for 3D scanners

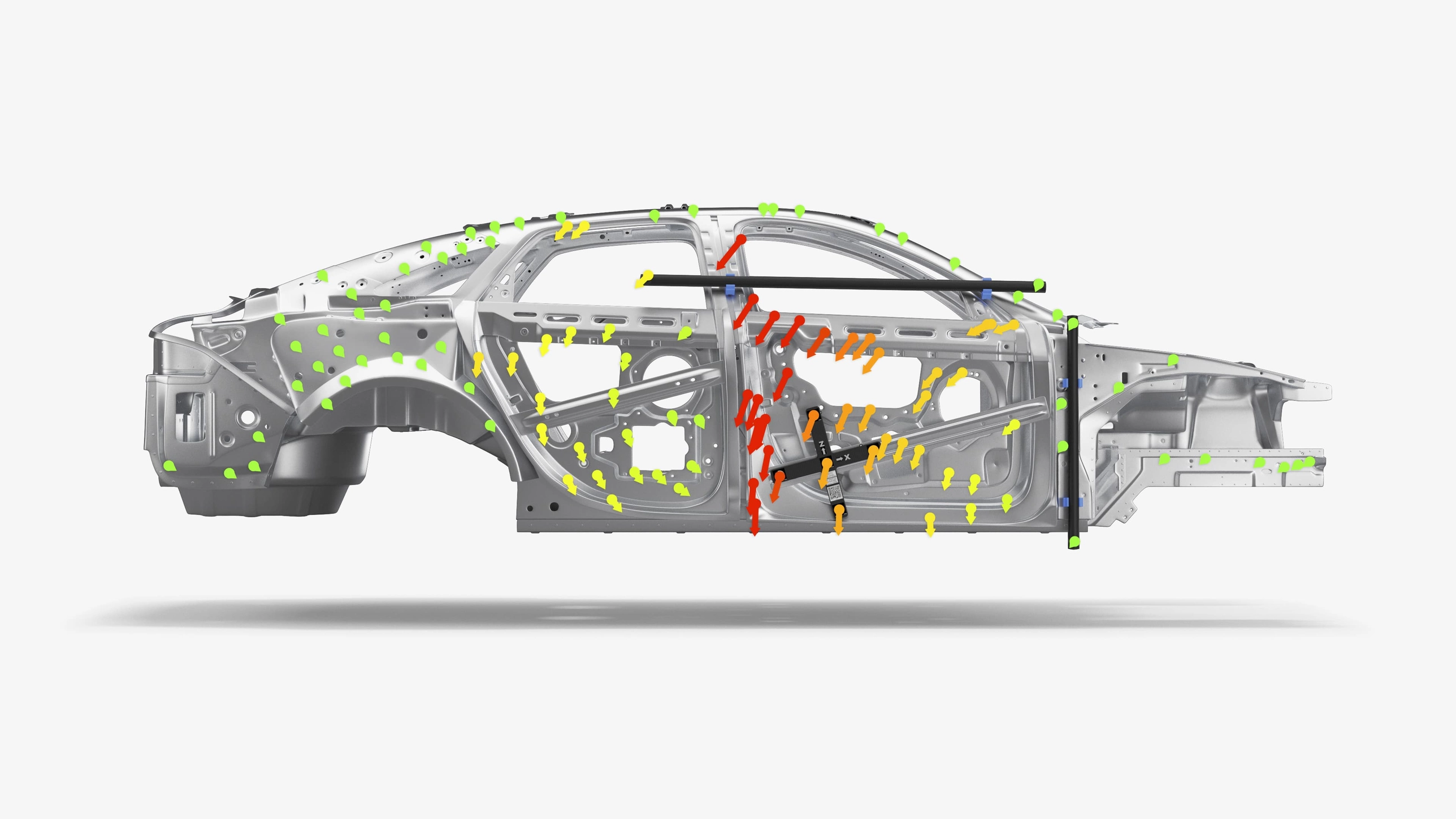

✔ A deformation analysis solution
✔ A reference system for large-scale measurements

Photogrammetry data can significantly increase the volumetric accuracy of handheld scanners over distance.

Portable & Field-Ready
• Rugged transport case
• Total system weight (with case): approx. 7.7 kg
• Recommended operating temperature: +5°C to +45°C
• CE & RoHS conformity

The kit is suitable for workshop environments, production floors, and outdoor industrial sites.

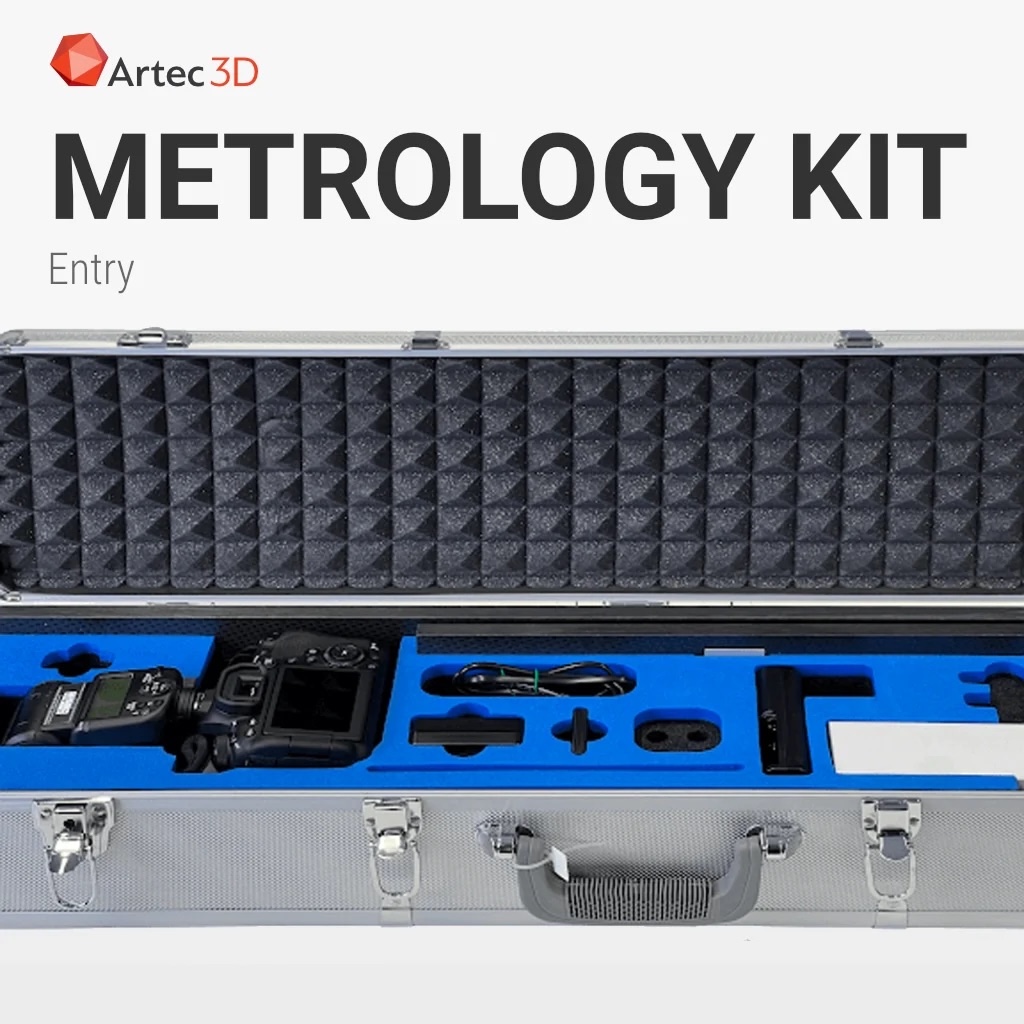

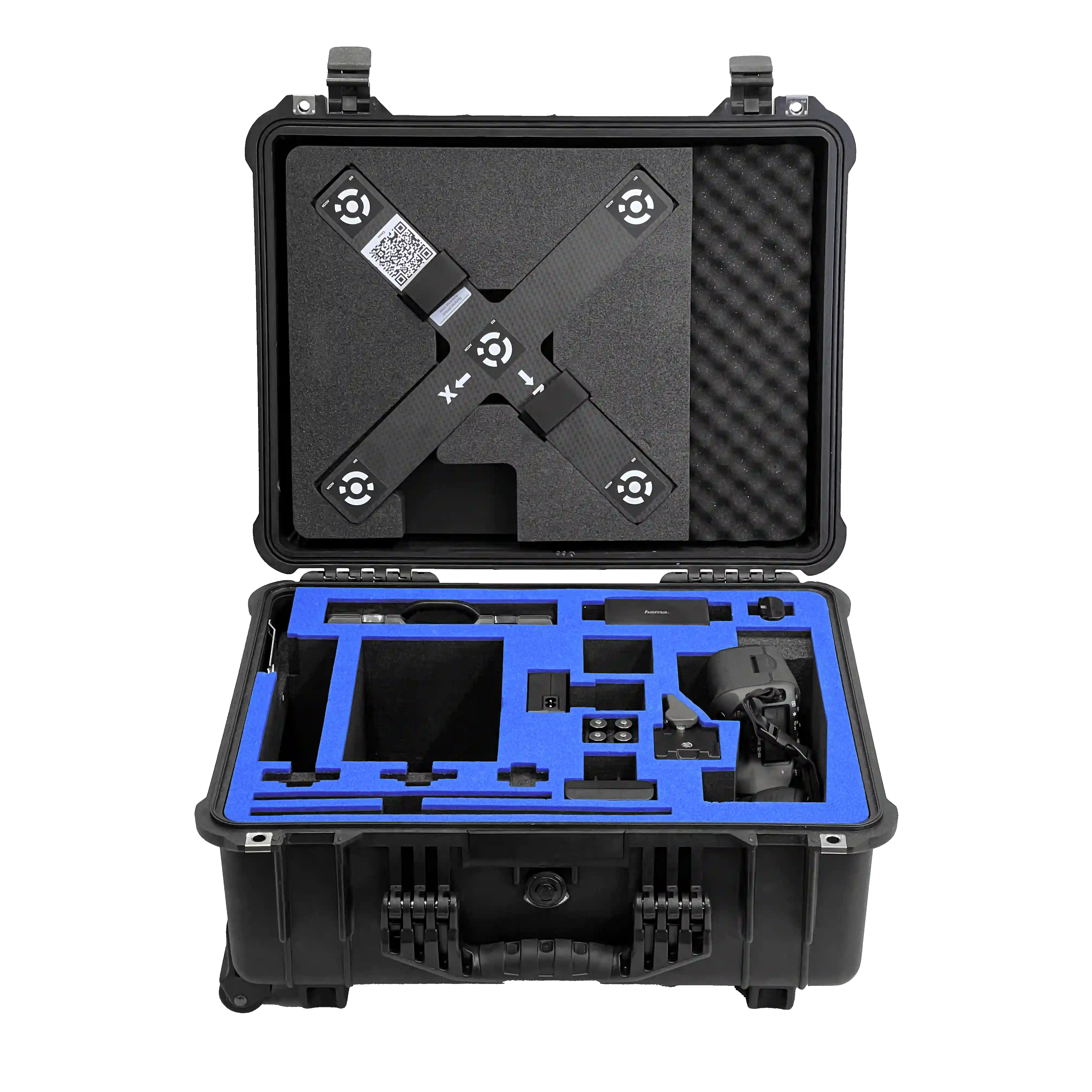

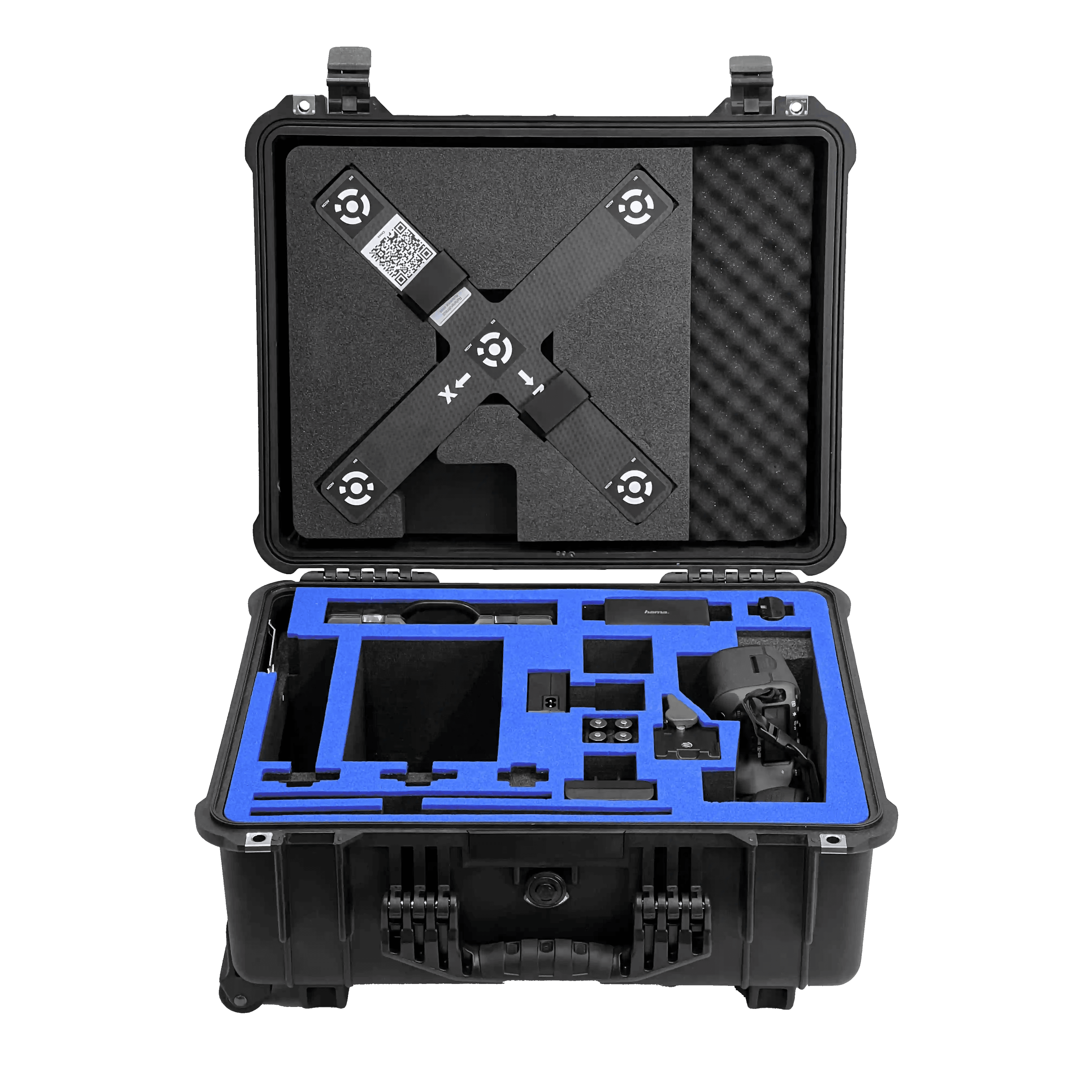

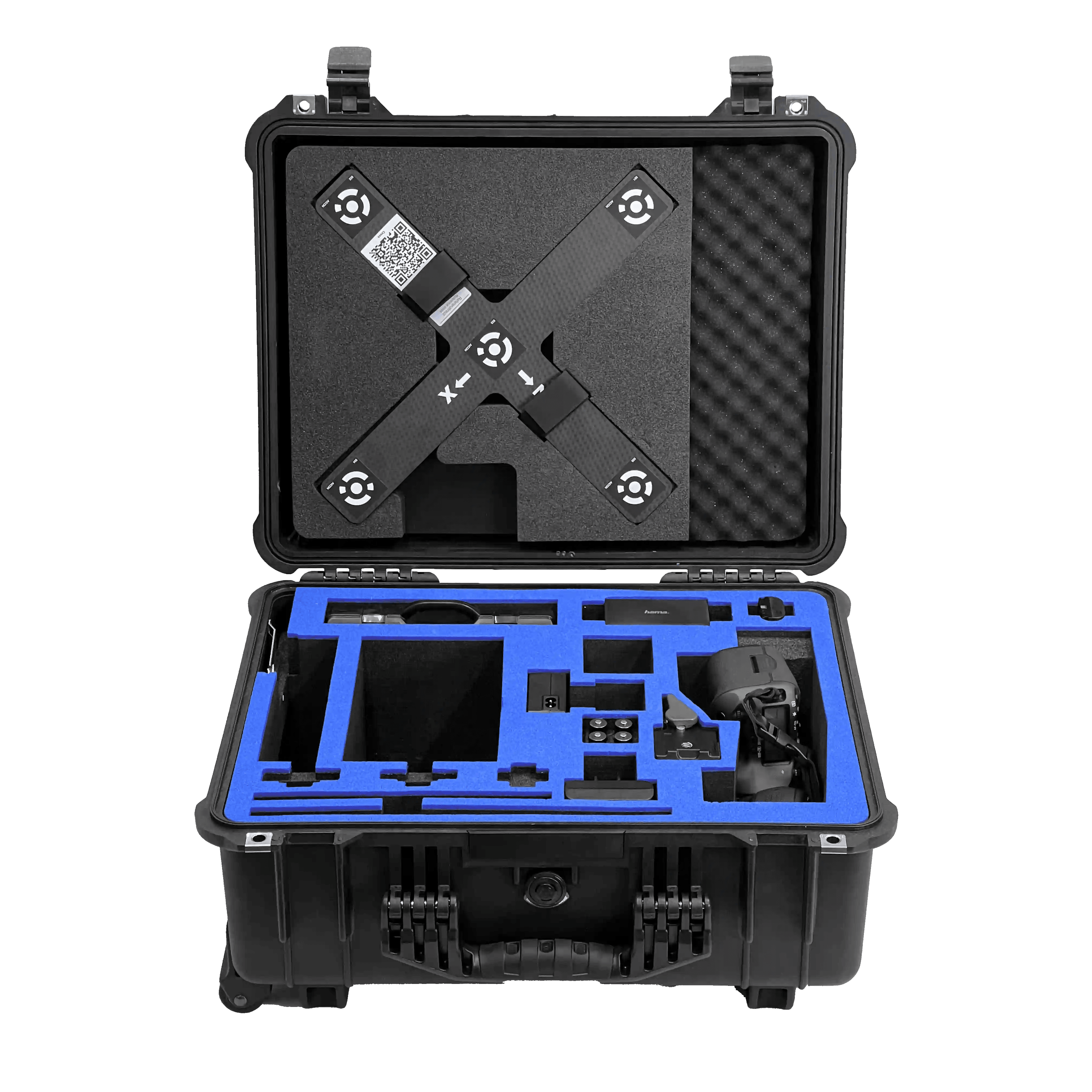

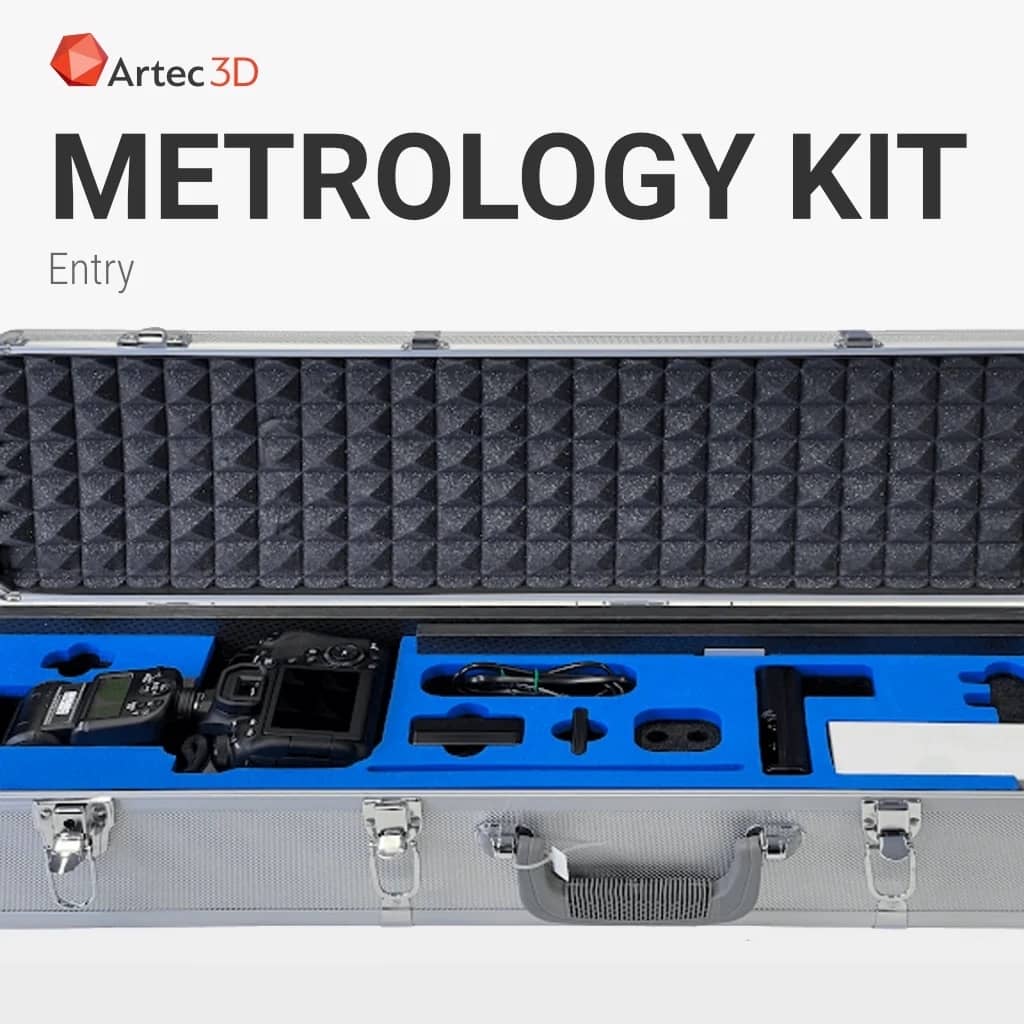

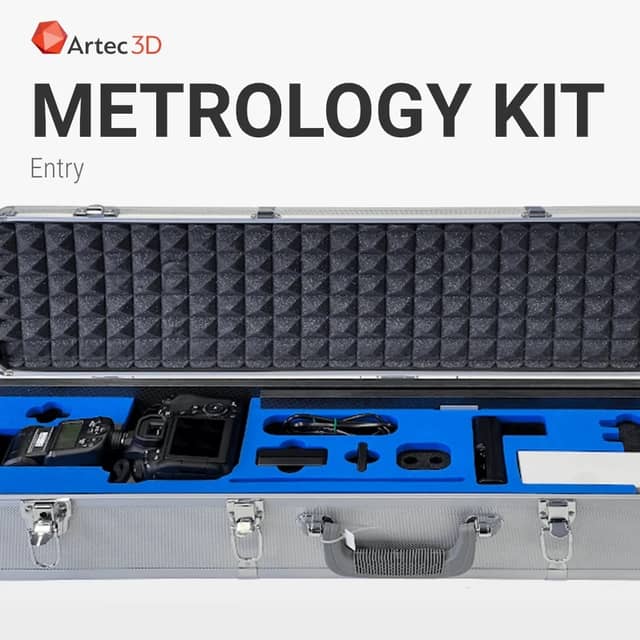

What’s Included – Entry Version
• 20 MP digital camera (Canon EOS 6D)
• 28 mm AICON metric wide-angle lens
• Metrology Kit plugin for Artec Studio
• Adjustable camera settings
• Basic set of measurement targets
• Scale bars
• Factory-calibrated scale cross 800
• DAkkS certificate for complete measuring system
• Robust transport case

Applications

The Entry version is ideal for:
• Industrial inspection
• Dimensional measurement
• Reverse engineering
• Quality control
• Deformation analysis

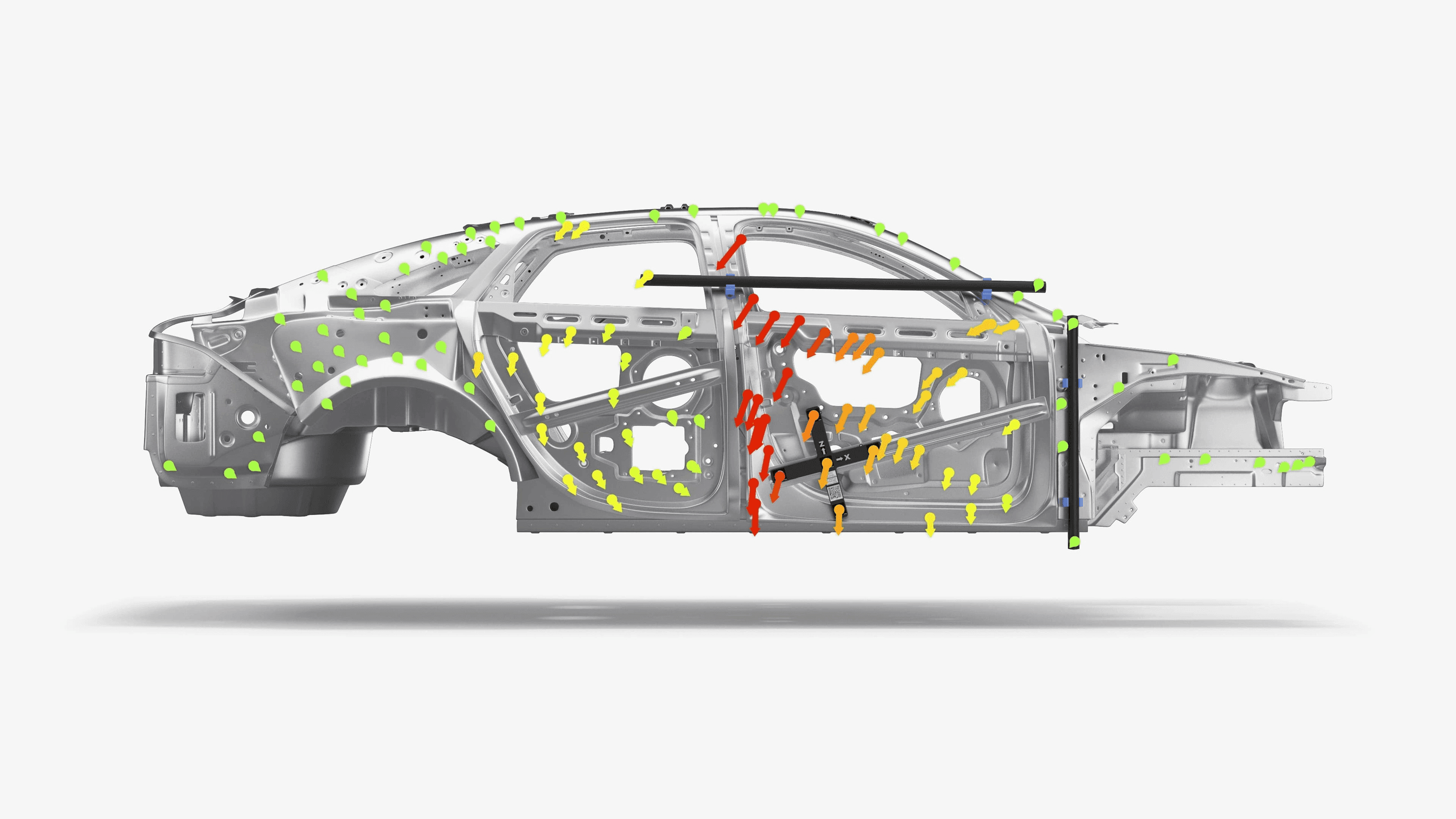

• Automotive production line inspection
• Aerospace component measurement
• Manufacturing verification

Why Choose the Entry Version?

✔ Professional photogrammetry at a lower investment level
✔ Reliable industrial-grade accuracy
✔ Seamless integration with Artec Studio
✔ Improves volumetric accuracy of 3D scanning workflows
✔ Portable and workshop-ready solution
✔ DAkkS-certified measurement components
