EQUIPMENT DETAILS

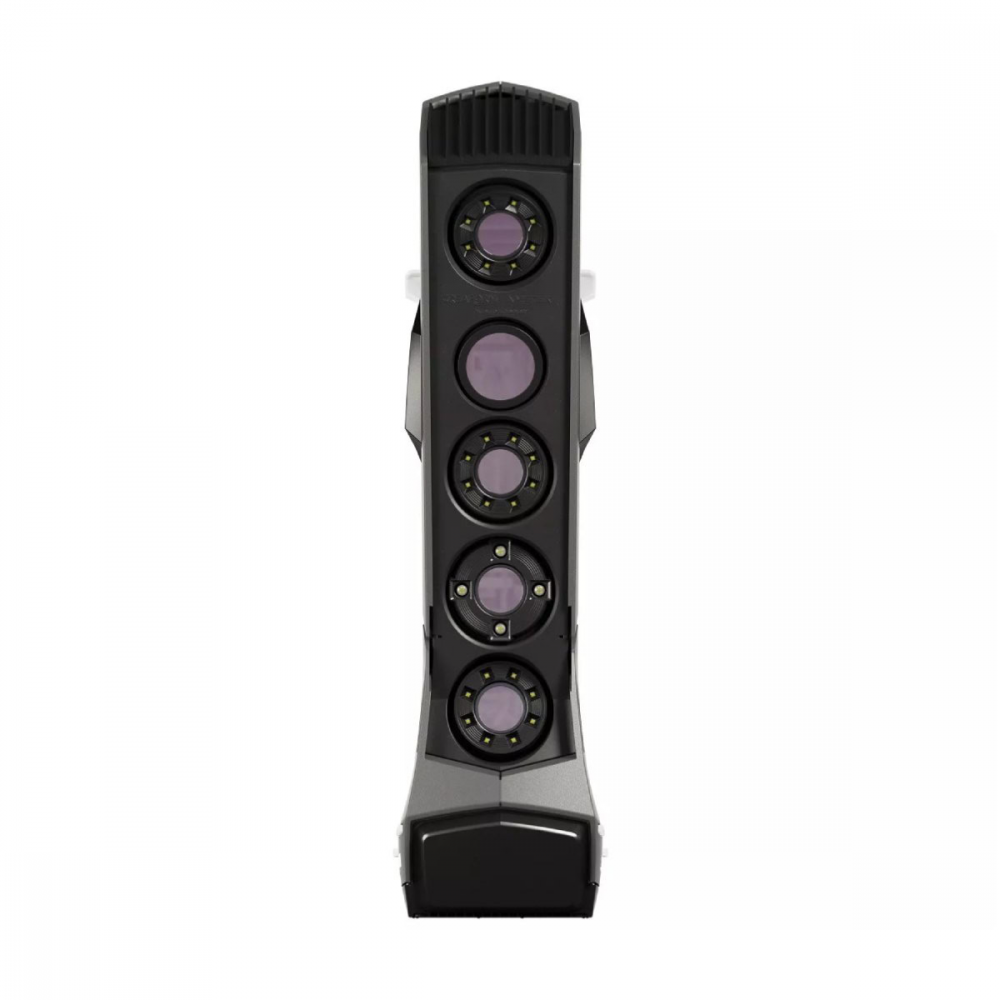

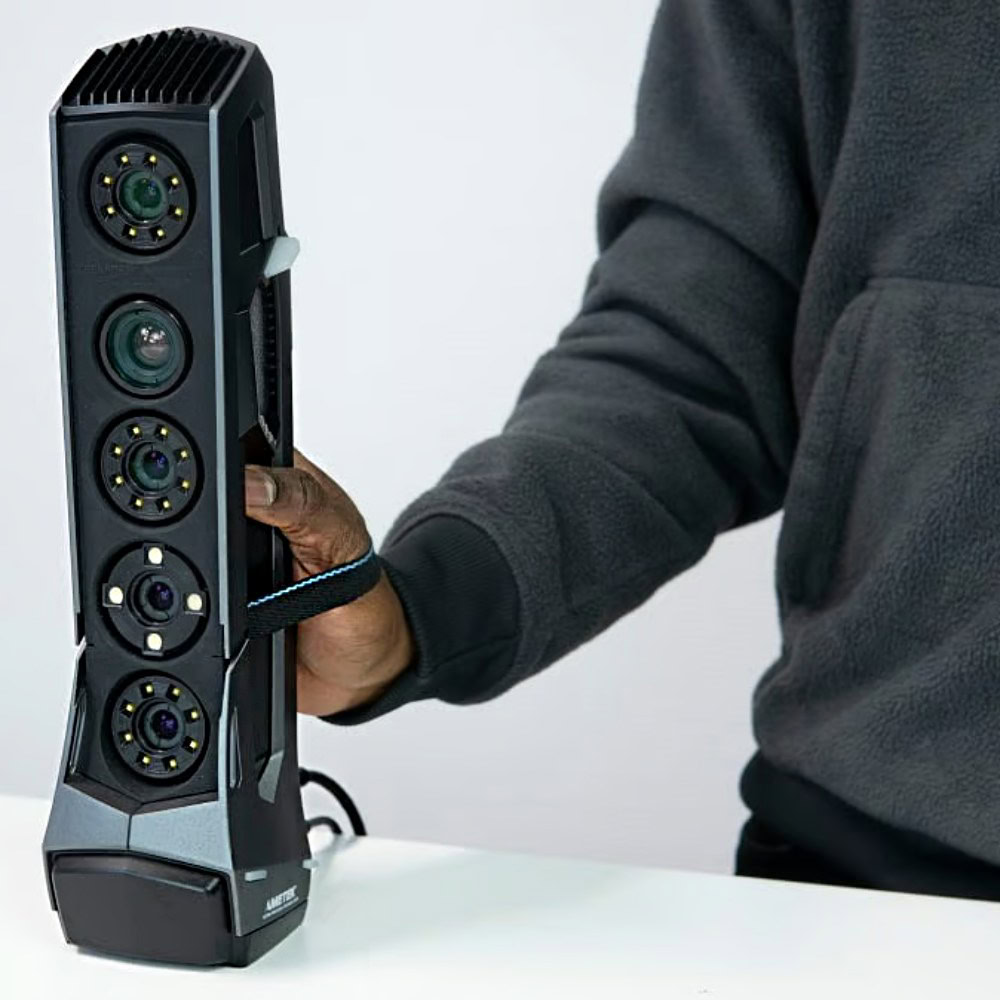

Creaform Go!SCAN SPARK is a high-performance portable 3D scanner designed for fast, easy, and full-color 3D data acquisition.

It is one of the fastest handheld 3D scanners in its class, delivering high-resolution geometry and realistic texture capture without complex setup procedures. The device is ready to use in under two minutes and does not require extensive calibration or preparation.

Go!SCAN SPARK integrates seamlessly with Creaform.OS™ and the Creaform Metrology Suite™, enabling scan-to-CAD, inspection, automation, and dynamic tracking workflows.

Designed for product development, reverse engineering, and quality control, it significantly reduces time-to-market by delivering ready-to-use mesh files with high accuracy and rich color information.

Technical Specifications

• Scanner Type: Handheld Structured Light
• Light Source: White light (99 stripes)
• Accuracy: Up to 0.050 mm
• Volumetric Accuracy: 0.050 mm + 0.100 mm/m
• Measurement Speed: Up to 1,500,000 measurements/s
• Resolution: 0.100 mm
• Working Distance: 200 – 650 mm
• Recommended Part Size Range: 0.1 – 4 m
• Weight: 1.25 kg
• Color Capture: Full texture acquisition
• Software: Creaform.OS™
• Output: Ready-to-use mesh files
