EQUIPMENT DETAILS

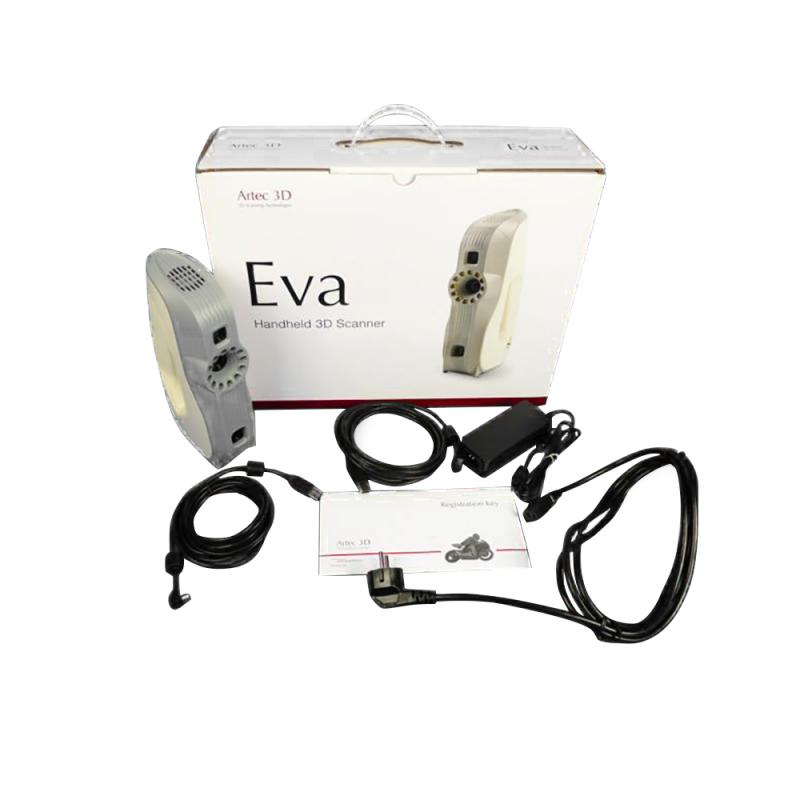

Upgrade to Artec Eva (from Eva Lite)

This product represents the official upgrade from Artec Eva Lite to the full-featured Artec Eva.
By purchasing this upgrade, you unlock full-color texture capture, hybrid geometry & texture tracking, and all advanced scanning capabilities of the standard Artec Eva model.

Professional Portable 3D Scanner for Fast & Accurate Scanning

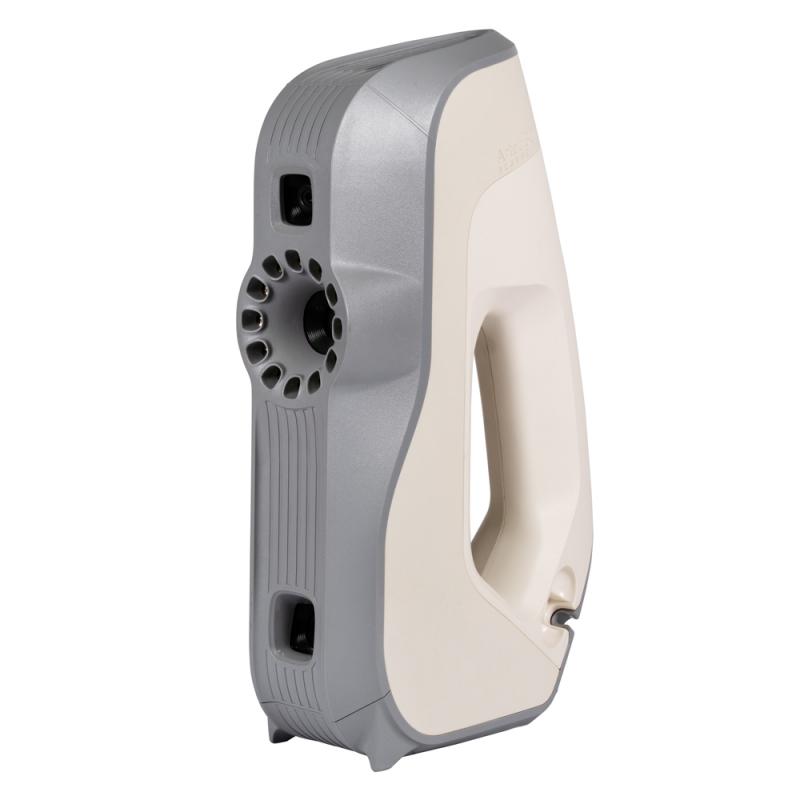

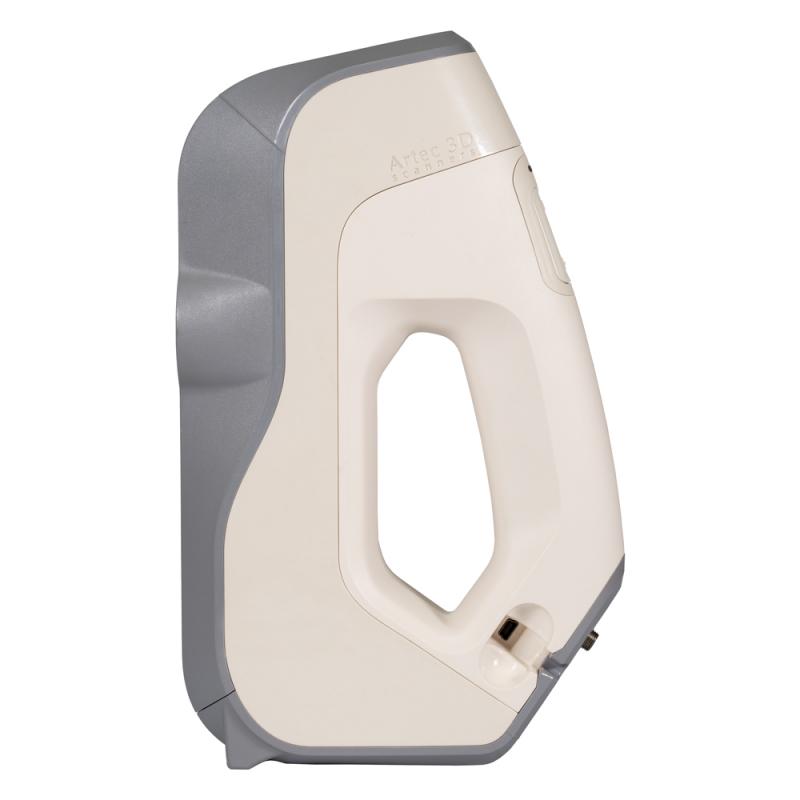

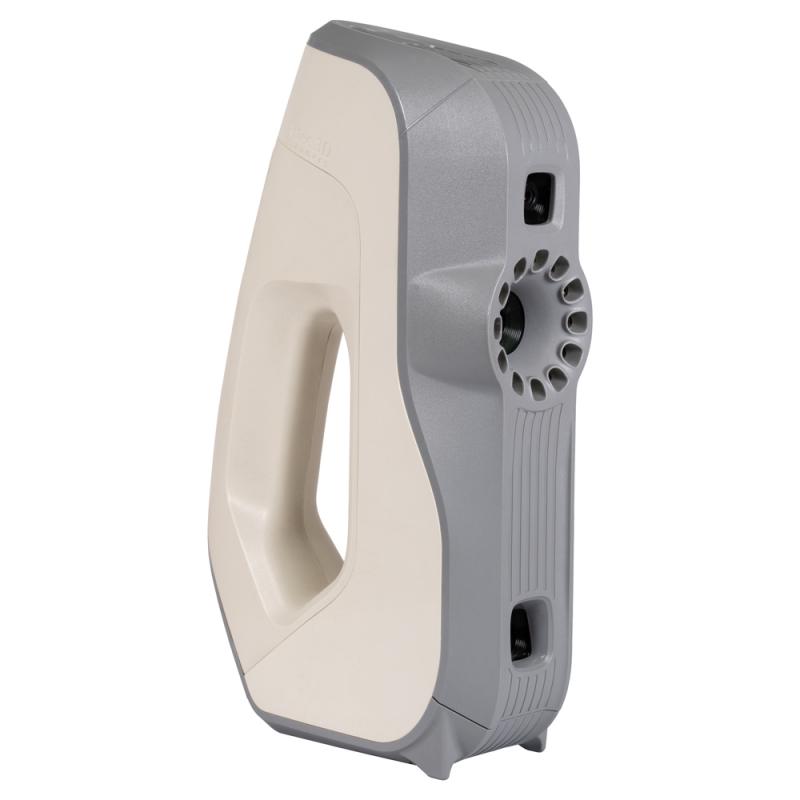

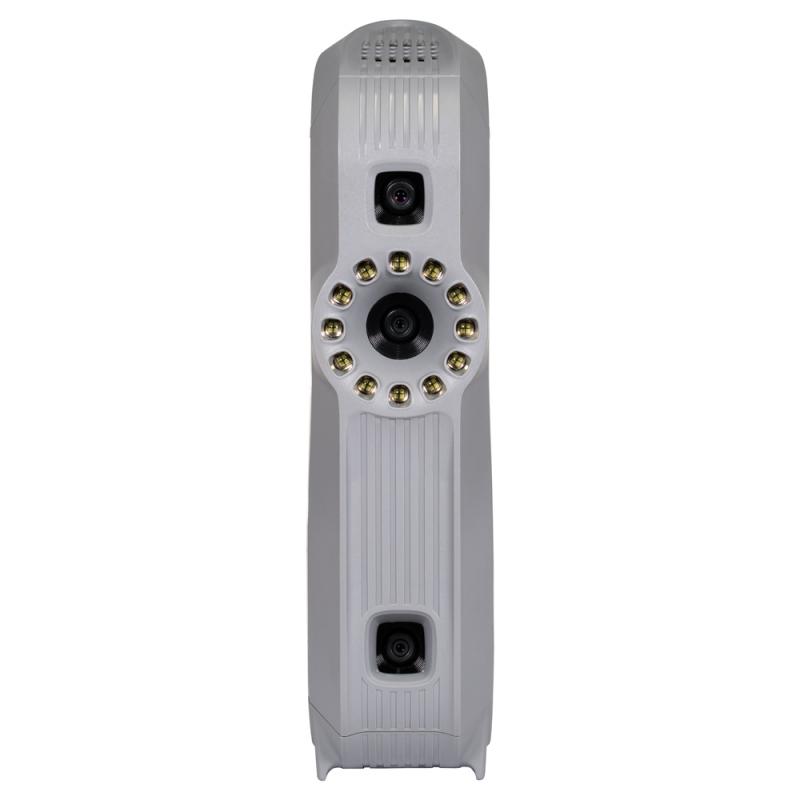

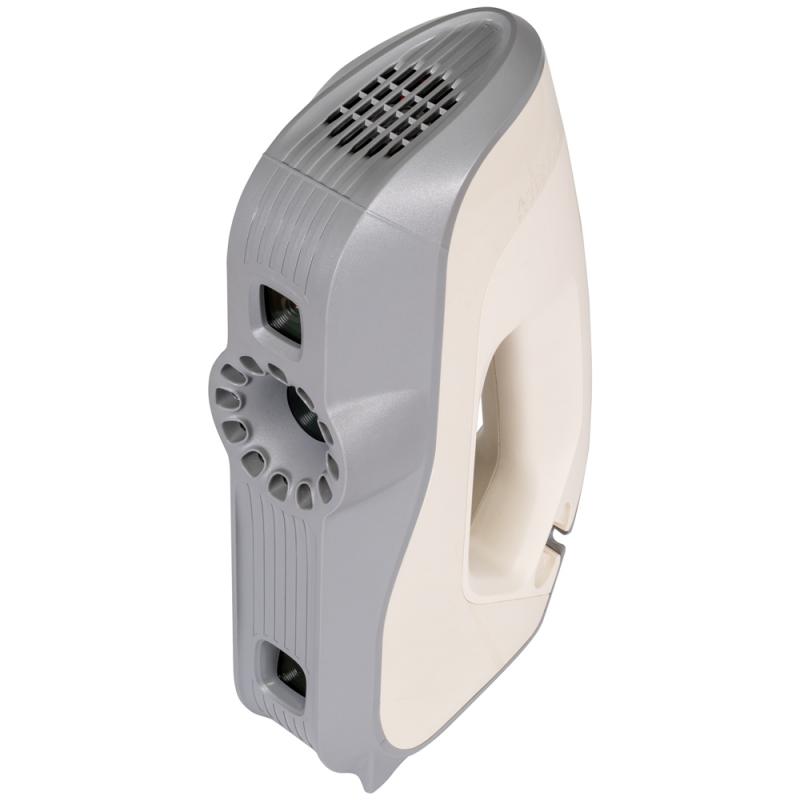

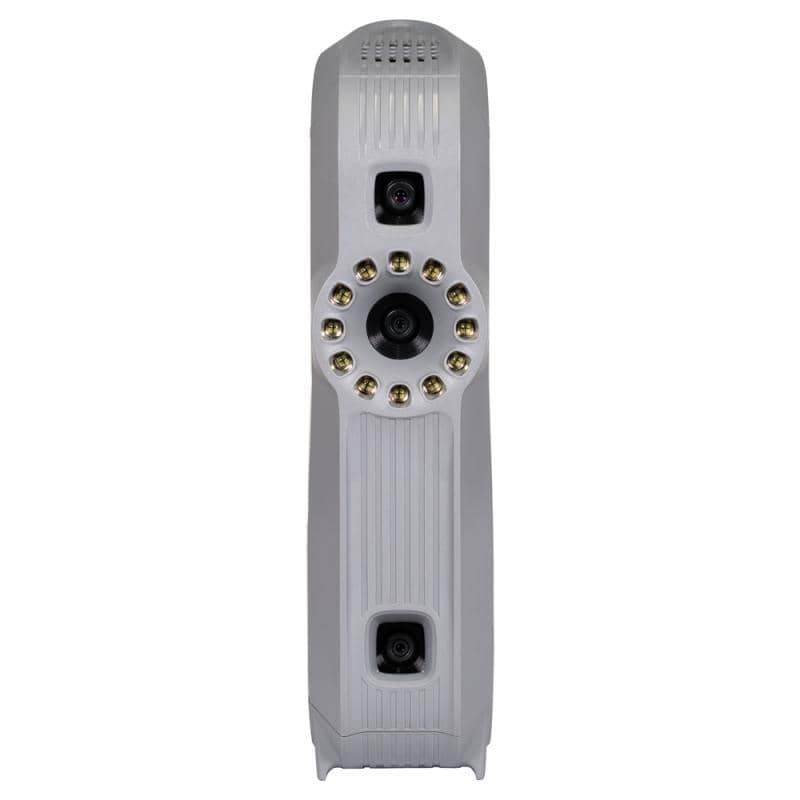

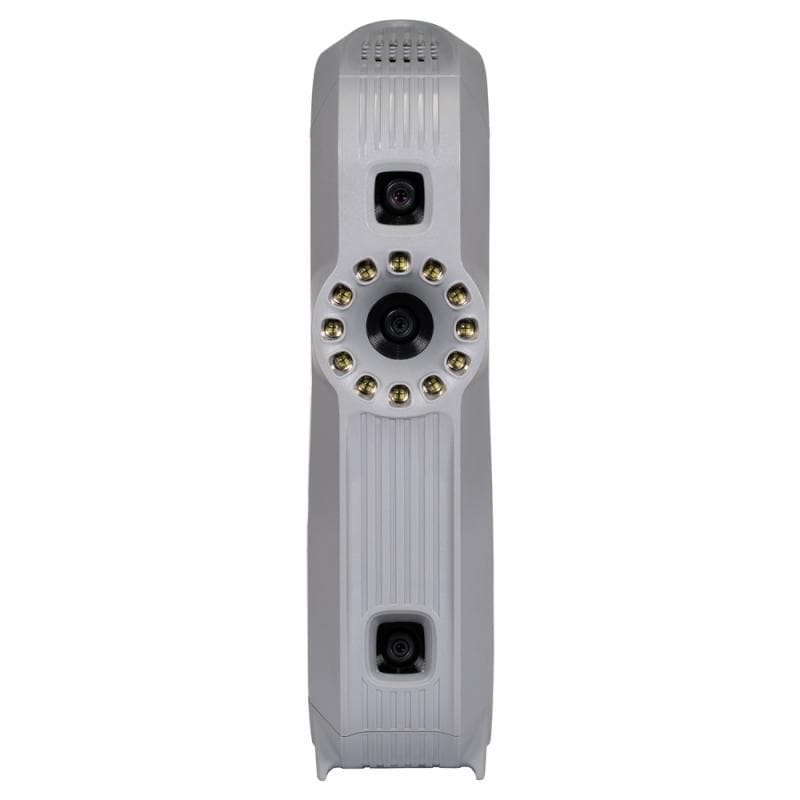

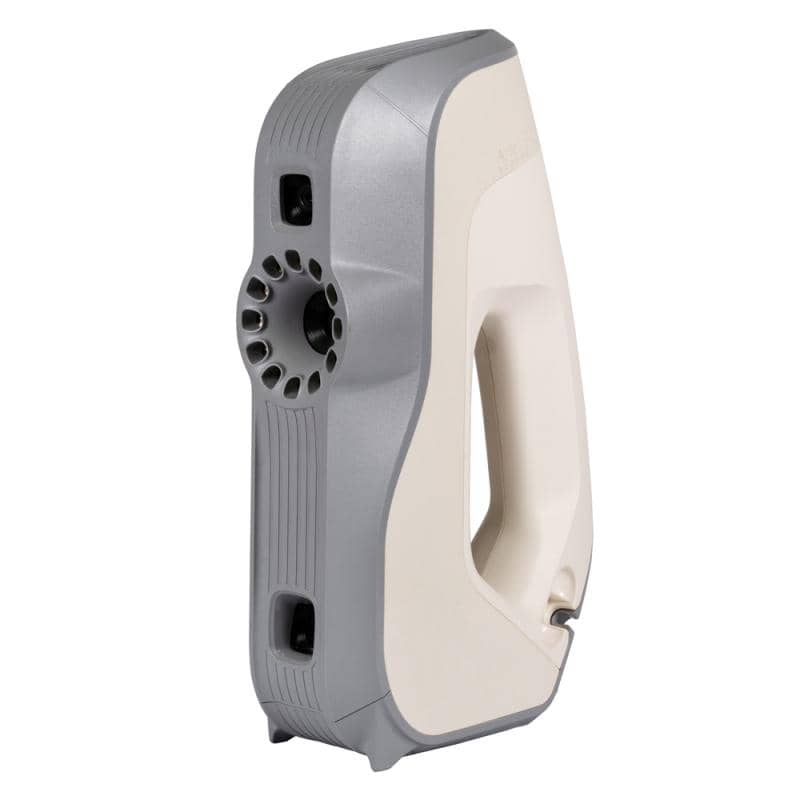

Artec Eva is a market-leading handheld 3D scanner designed for capturing fast, precise, and full-color 3D models of medium-sized objects. Built on safe white structured-light technology, Eva combines high accuracy, speed, and ease of use in a lightweight and portable device trusted by thousands of professionals worldwide, including NASA, Siemens, and IKEA.

Whether for reverse engineering, quality inspection, product design, healthcare, or CGI, Artec Eva delivers reliable, high-resolution results with minimal setup.

Key Features

High Accuracy & Resolution
• 3D accuracy: up to 0.1 mm
• 3D resolution: up to 0.2 mm
• HD Mode powered by Artec’s AI neural engine for sharper, noise-free scans
• 1.3 MP texture resolution with full-color capture (24 bpp)

Fast Data Capture
• Up to 16 frames per second
• Up to 18 million points per second
• No calibration required — just point and scan

Target-Free Scanning
Hybrid geometry and texture tracking allows accurate scanning without markers or targets.

Excellent Performance on Challenging Surfaces
Eva can capture:
• Black surfaces
• Shiny and reflective materials
• Smooth and featureless areas

Portable & Lightweight
• Weight: only 0.9 kg
• Compact dimensions: 262 × 158 × 63 mm
• Compatible with Artec battery pack (up to 6 hours of scanning)

Full-Color 3D Scanning
Perfect for creating realistic 3D assets for:
• CGI & animation
• AR / VR applications
• Digital heritage preservation
• Games and film production

Applications

Artec Eva is widely used across industries, including:
• Reverse engineering
• Quality inspection
• Automotive & aerospace
• Manufacturing & prototyping
• Healthcare & prosthetics
• Forensics
• Architecture & design
• Education & research

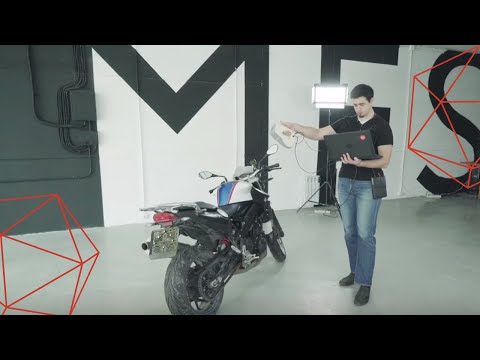

It is ideal for scanning objects starting from 10 cm in size, such as mechanical parts, furniture, sculptures, alloy wheels, motorcycle components, and human bodies.

Technical Specifications
• Working distance: 0.4 – 1 m
• Field of view: up to 536 × 371 mm
• Angular field of view: 30 × 21°
• 3D reconstruction rate: up to 16 FPS
• Data acquisition speed: up to 18 mln points/sec
• Interface: USB 2.0 (USB 3.0 compatible)
• Output formats: STL, OBJ, PLY, WRL, AOP, ASC, PTX, E57, XYZRGB
• CAD formats: STEP, IGES, X_T
• Supported OS: Windows 7/8/10 x64
• Warranty: 2 years

Software: Artec Studio

Artec Eva works seamlessly with Artec Studio, a professional 3D data processing software featuring:
• Smart Autopilot mode for guided workflow
• Advanced manual tools for full control
• Scan-to-CAD functionality
• Enhanced color reproduction and automatic glare removal
• Export-ready files for CAD, inspection, and 3D printing

Why Choose Artec Eva?

✔ Proven structured-light technology
✔ Fast setup and intuitive workflow
✔ AI-powered HD Mode
✔ No targets or calibration required
✔ Excellent balance of speed and accuracy
✔ Lightweight and portable design
✔ Long-term investment with continuous software upgrades
