EQUIPMENT DETAILS

Creaform MetraSCAN BLACK+ | Elite is a high-accuracy optical CMM 3D scanning system engineered for advanced shop floor metrology and industrial quality control.

Designed for manufacturing professionals who require certified measurement performance in real production environments, the BLACK+ | Elite delivers enhanced accuracy, improved volumetric performance, and advanced setup assistance tools.

Insensitive to vibration, part movement, and environmental instability, the system ensures stable, repeatable results directly on the shop floor.

The Elite version provides superior volumetric accuracy and improved automatic volume extension performance compared to the standard BLACK+ model.

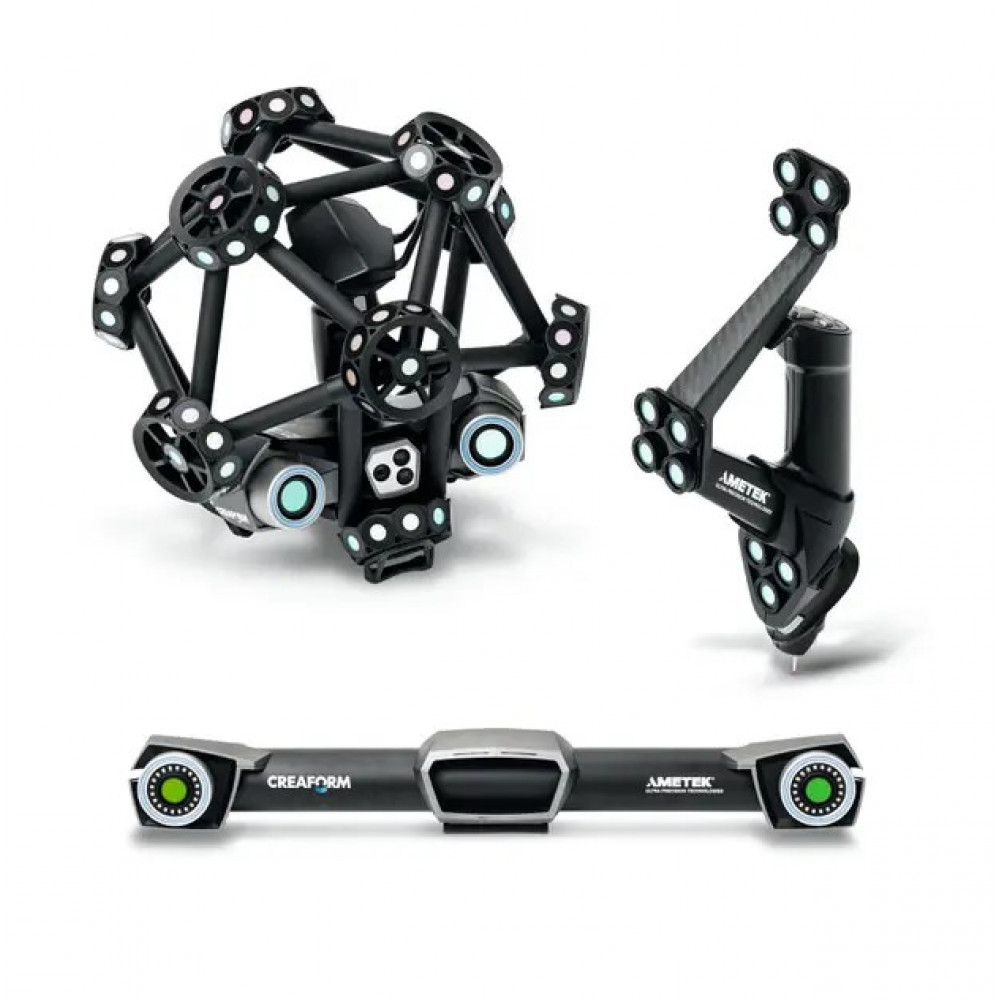

The system includes:

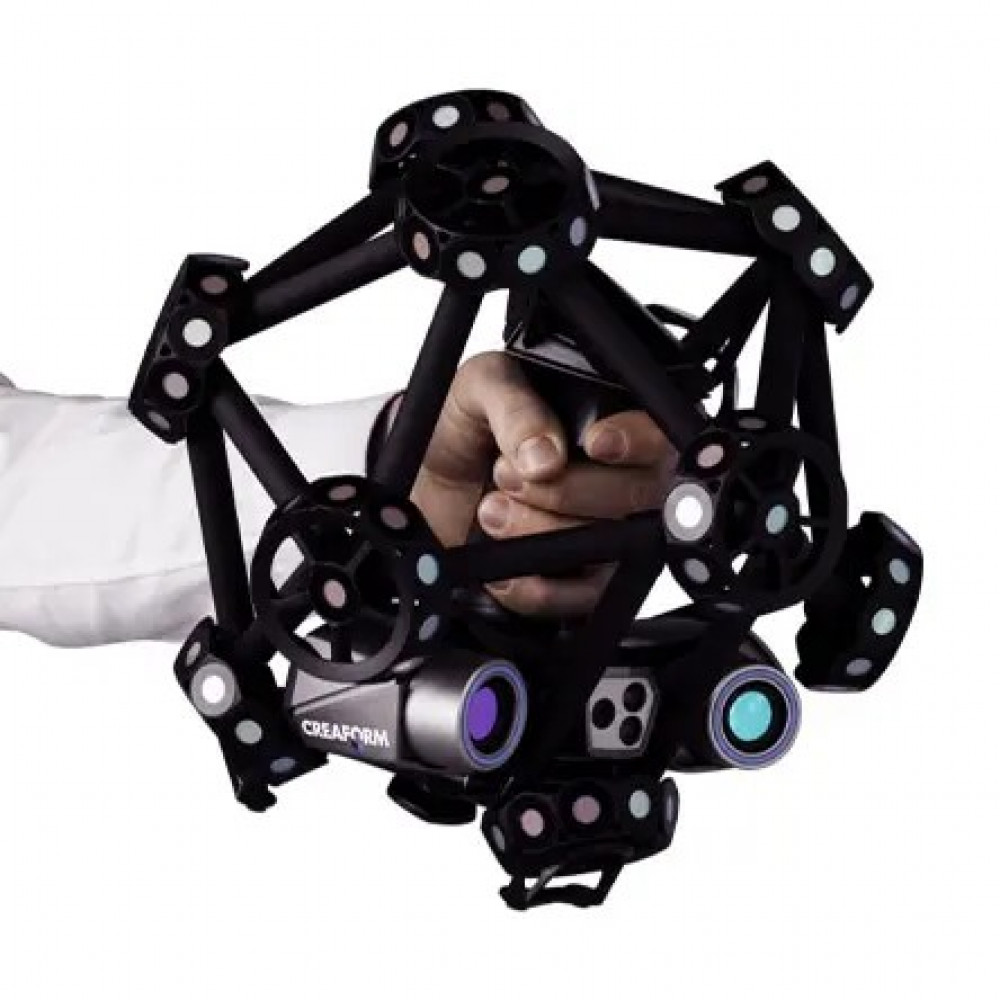

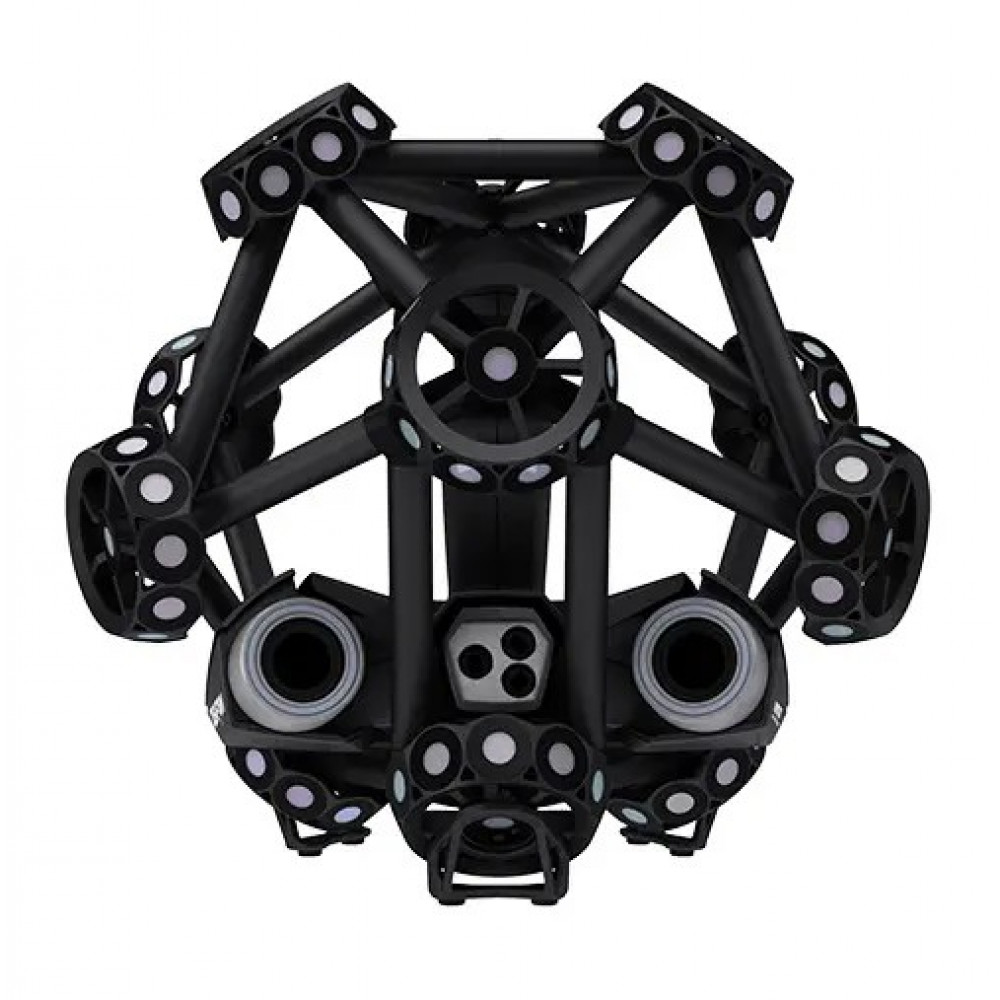

• MetraSCAN BLACK+ | Elite scanner
• C-Track optical tracker
• VXelements metrology platform
• Optional HandyPROBE Next+ integration

Compliant with ISO 10360 and VDI/VDE 2634 Part 3 standards .

Technical Specifications

• Scanner Type: Optical CMM 3D Scanner
• Accuracy: 0.025 mm
• Volumetric Accuracy:
• 9.1 m³: 0.064 mm
• 16.6 m³: 0.078 mm
• Automatic Volume Extension Accuracy: 0.025 mm + 0.015 mm/m
• Probing Accuracy with HandyPROBE Next+: 0.025 mm
• Acceptance Test: Based on VDI/VDE 2634 Part 3 and ISO 10360
• Setup Assistance Tools: Included
• Light Source: 30 blue laser lines (+1 extra line)
• Scanning Area: 310 × 350 mm
• Recommended Part Size Range: 0.2 – 6 m
• Scanner Weight: 1.49 kg
• C-Track Weight: 5.7 kg
• Probe Weight: 0.5 kg
• Laser Class: 2M (eye safe)
