EQUIPMENT DETAILS

Creaform MetraSCAN BLACK+ is a high-performance optical CMM 3D scanning system designed specifically for manufacturing and metrology professionals who require fast, reliable, and certified measurement directly on the shop floor.

Unlike traditional fixed CMM systems, the MetraSCAN BLACK+ is insensitive to vibrations, part movement, and environmental instability. It delivers consistent metrology-grade performance in real production environments.

The system combines:

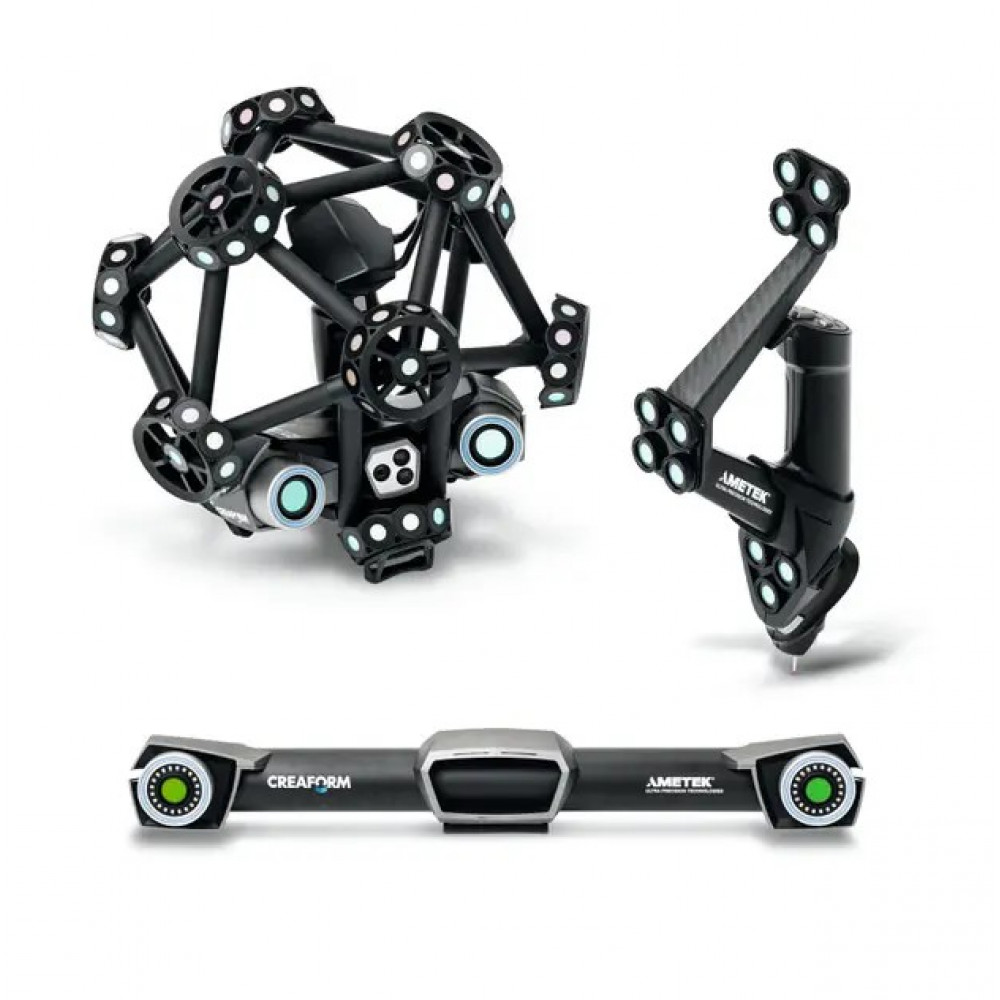

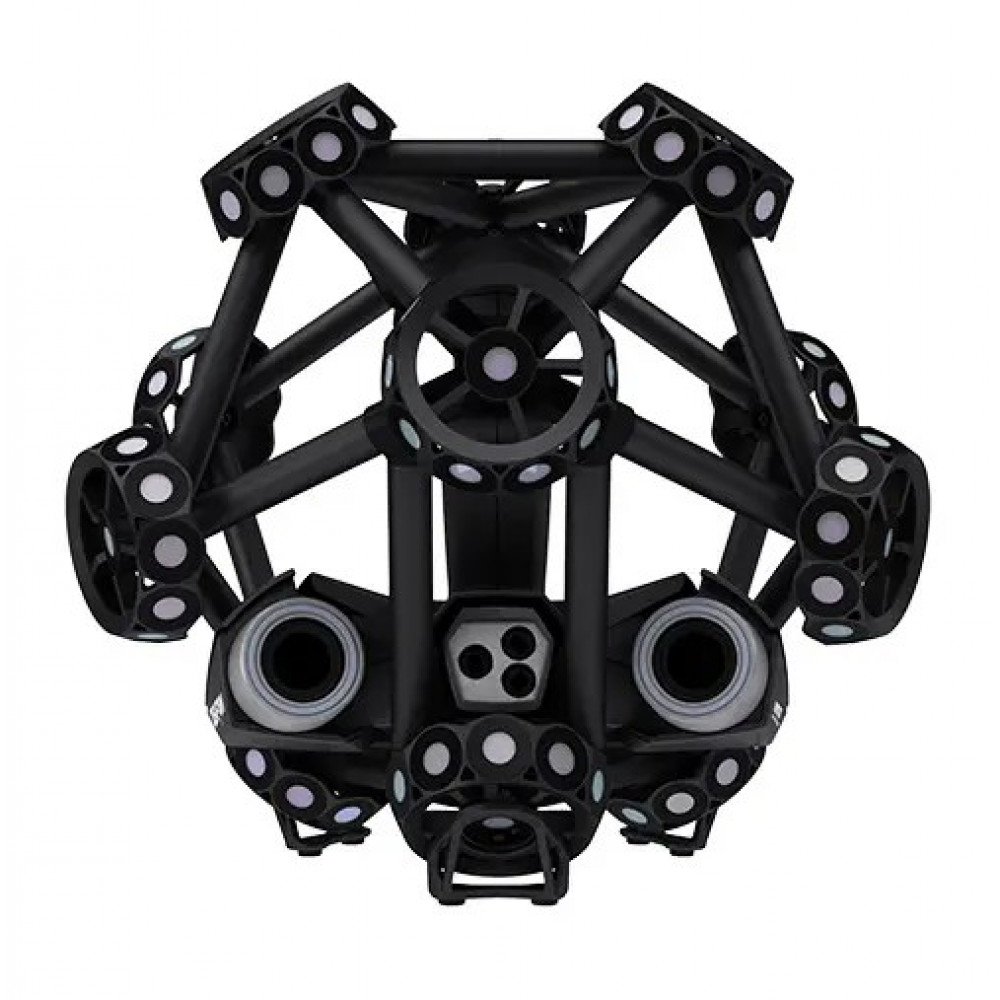

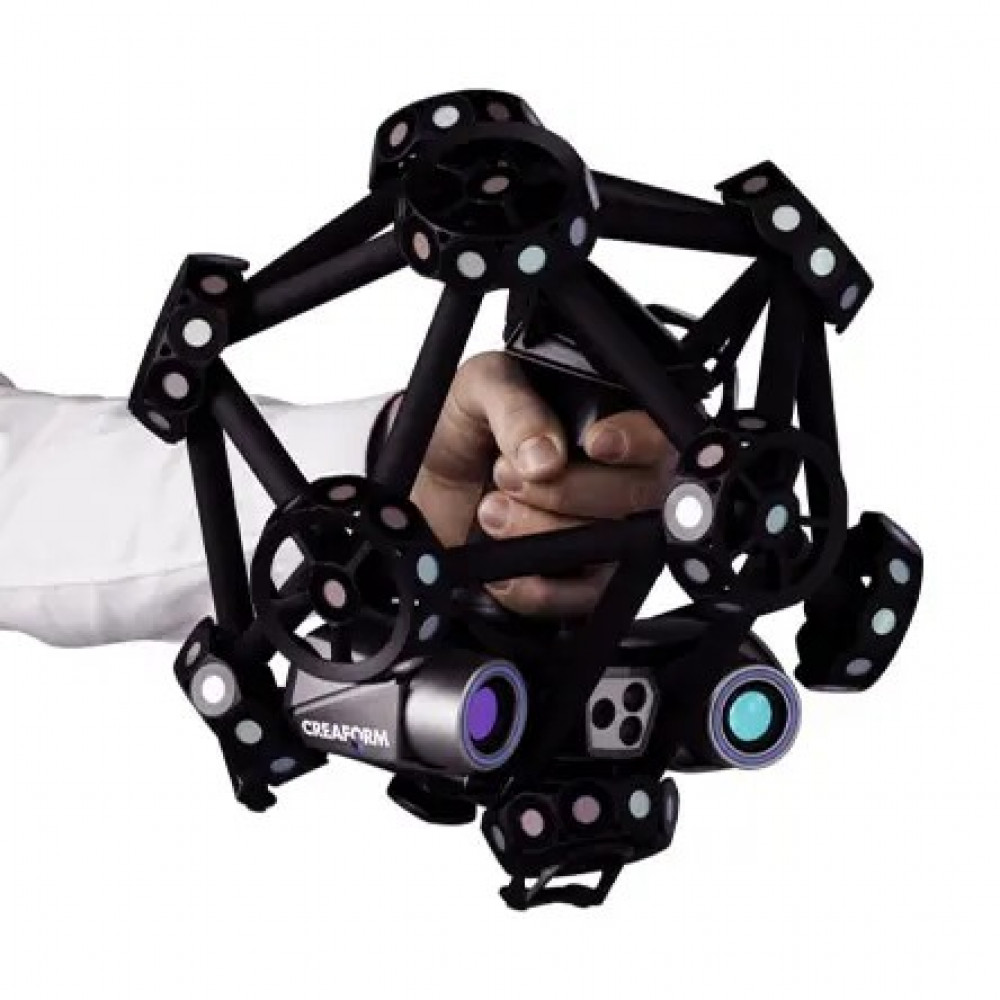

• MetraSCAN BLACK+ optical 3D scanner
• C-Track optical tracker
• Optional integration with HandyPROBE Next+
• VXelements metrology software platform

Engineered for quality control, dimensional inspection, and production validation, the BLACK+ significantly improves measurement efficiency, reliability, and flexibility.

It is ISO 17025 accredited and compliant with VDI/VDE 2634 Part 3 and ISO 10360 standards

Technical Specifications

• Scanner Type: Optical CMM 3D Scanner
• Accuracy: 0.035 mm
• Volumetric Accuracy:
• 9.1 m³: 0.086 mm
• 16.6 m³: 0.122 mm
• Automatic Volume Extension Accuracy: 0.035 mm + 0.020 mm/m
• Acceptance Test: Based on VDI/VDE 2634 Part 3 and ISO 10360
• Light Source: 30 blue laser lines (+1 extra line)
• Scanning Area: 310 × 350 mm
• Recommended Part Size Range: 0.2 – 6 m
• Measurement Capabilities (at 0.3 m):
• Pin: 0.750 mm
• Hole: 1.250 mm
• Step: 0.025 mm
• Wall: 0.500 mm
• Scanner Weight: 1.49 kg
• C-Track Weight: 5.7 kg
• Probe Weight (optional): 0.5 kg
• Laser Class: 2M (eye safe)

Software Platform

VXelements Metrology Suite:

• Live meshing
• Automatic Volume Extension
• Dynamic environment compensation
• Real-time deviation analysis
• Integrated inspection workflows

Optional integration with:

• HandyPROBE Next+ for hybrid probing and scanning inspection
