EQUIPMENT DETAILS

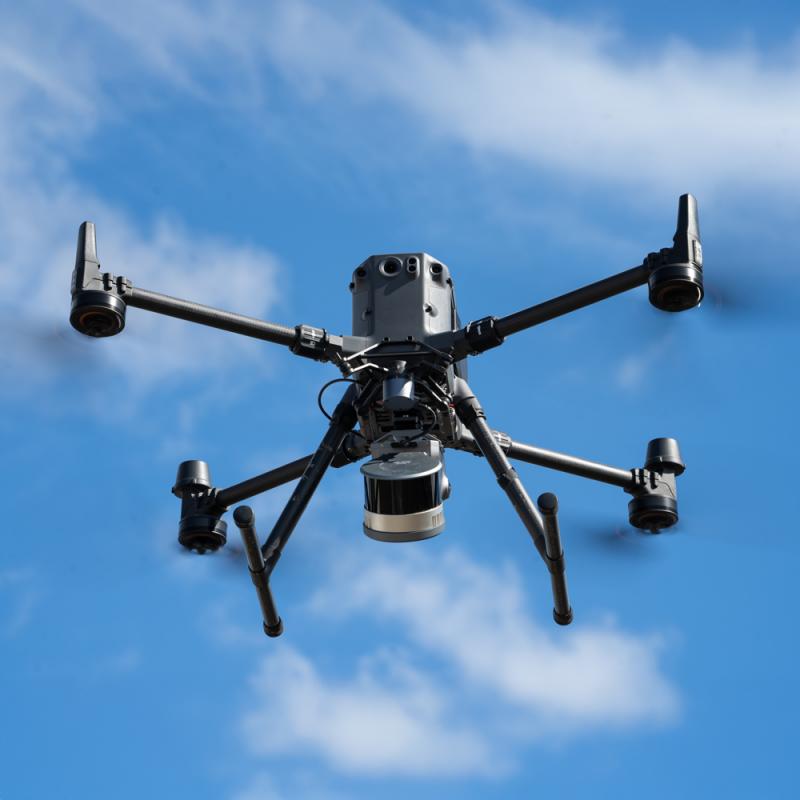

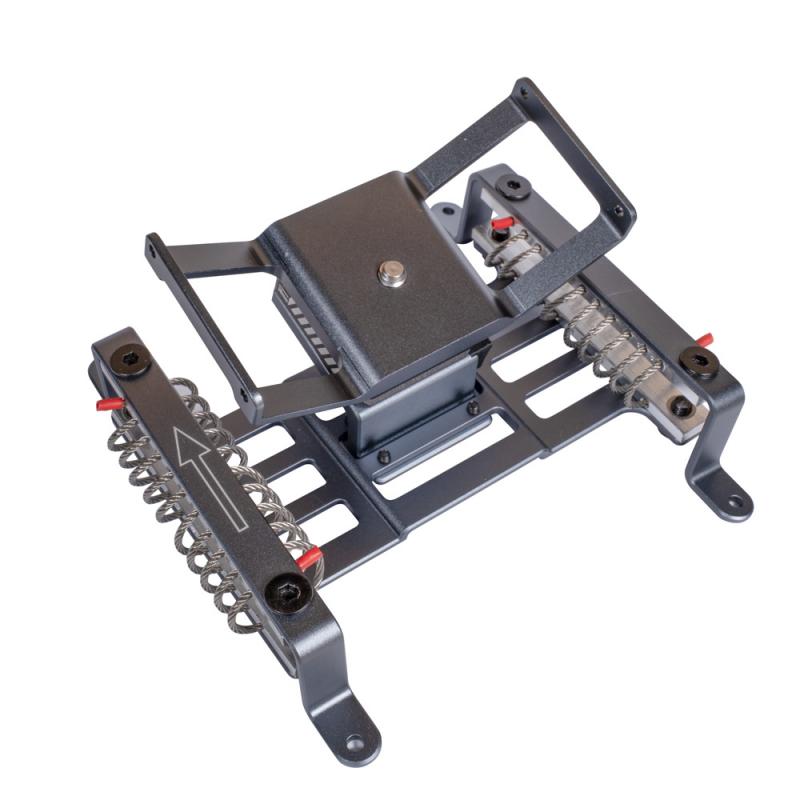

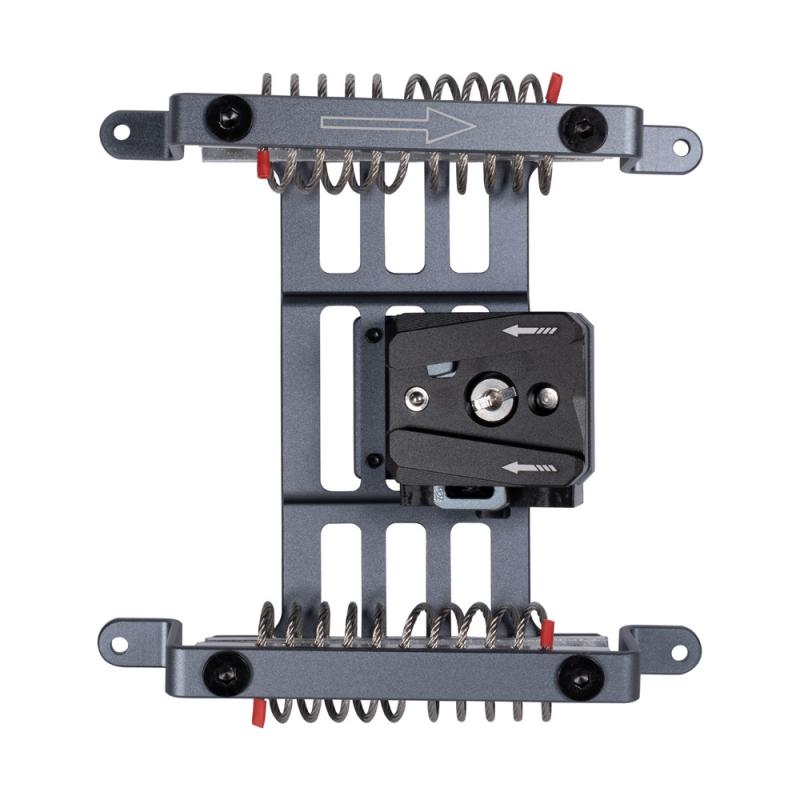

With the specially developed UAV mount for the XGRIDS Lixel L2 Pro, you can expand your mobile laser scanning capabilities with a powerful aerial solution. The mount enables secure, low-vibration mounting of the L2 Pro on compatible UAVs — ideal for topographic surveys, construction progress documentation, agriculture and forestry, and large-scale terrain surveys.

Thanks to its robust construction, the scanner remains reliably stable during longer flights, while the low additional weight ensures optimal flight time and energy efficiency. Combined with RTK support and point cloud coloring, it generates highly accurate, georeferenced 3D data from the air.

Product characteristics

• Stable, vibration-dampened construction for accurate aerial scans
• Supports point cloud coloring for improved analysis and visualization
• RTK-compatible for georeferenced datasets
• Weight of mount: 408 g
• Total weight with L2 Pro: approx. 2.2 kg
• Recommended flight altitude: 30 m
• Maximum flight altitude: 50 m
• Recommended flight speed: 3 m/s
• Maximum flight speed: 5 m/s

Compatibility

• UAV models: DJI Matrice 300, DJI Matrice 350
• Software: Lixel Studio version 3.3 or higher recommended

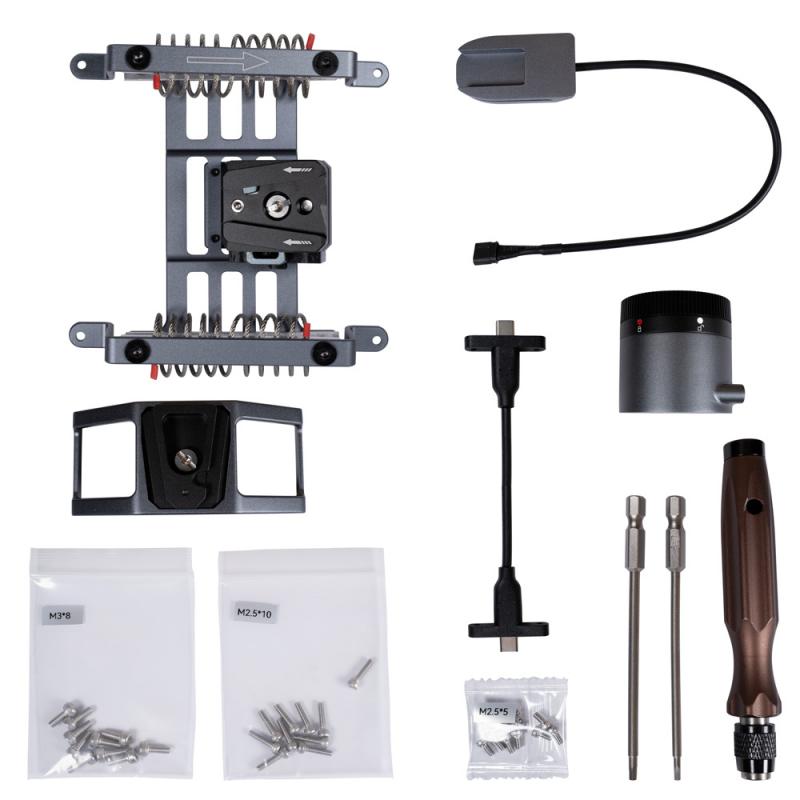

Delivery content

• 1× UAV mount for XGRIDS Lixel L2 Pro

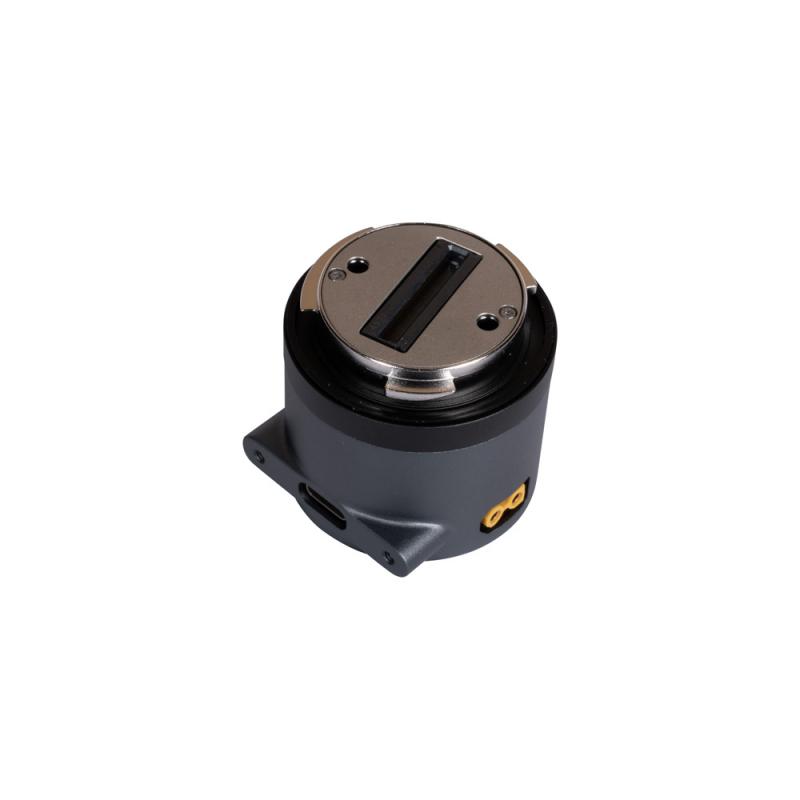

• 1× Gimbal adapter ring
• 1× power cable
• 1× USB-C cable
• 1× tool kit
• 1× user manual
