EQUIPMENT DETAILS

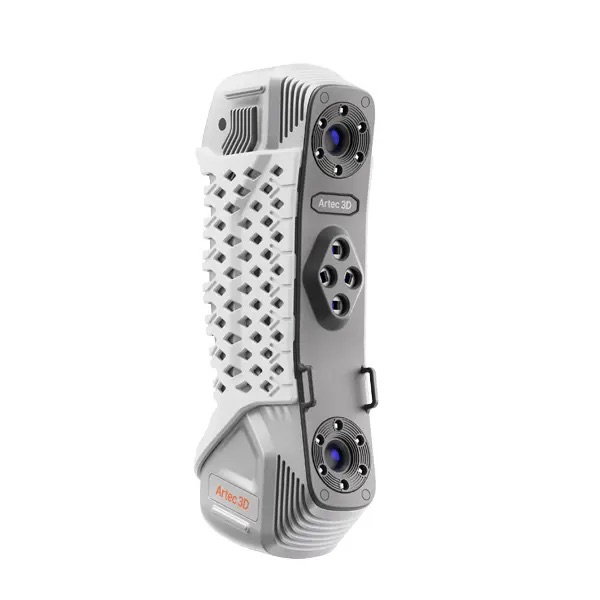

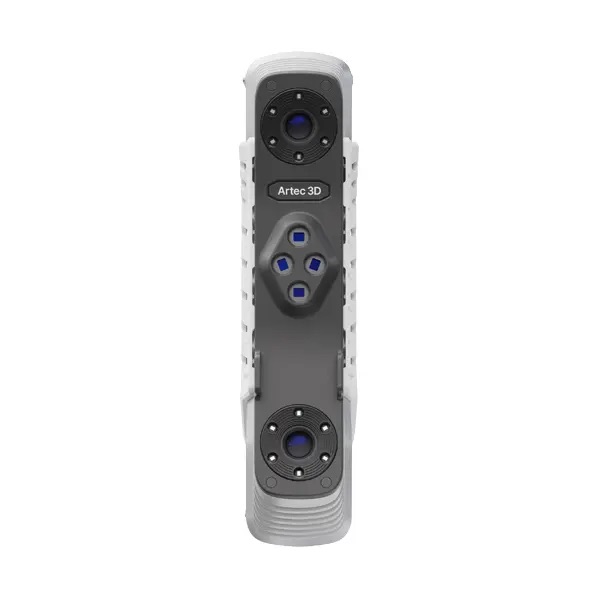

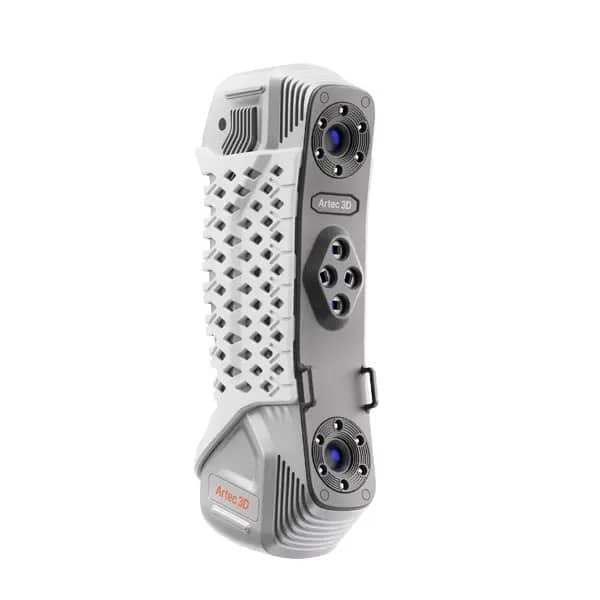

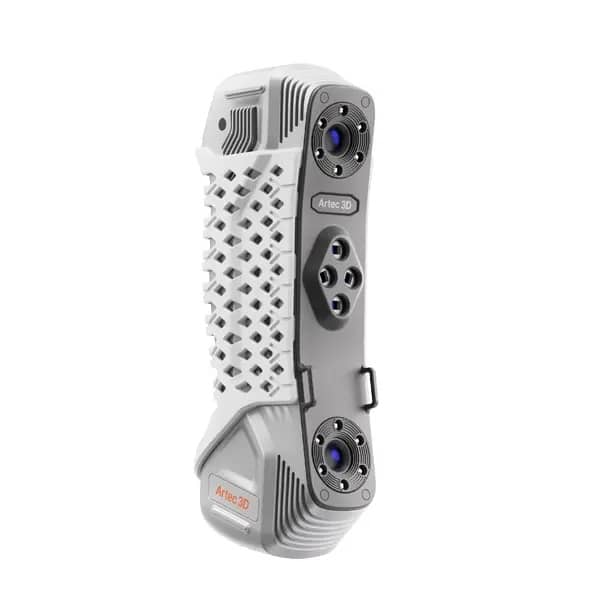

Metrology-Grade Handheld Laser 3D Scanner with 0.02 mm Accuracy

Artec Point is a high-precision, target-based handheld laser 3D scanner engineered for industrial metrology, quality inspection, and reverse engineering. Delivering up to 0.02 mm accuracy and 0.02 mm resolution, this ISO-certified device captures complex geometries, black and reflective surfaces, and intricate details with exceptional repeatability.

Compact, robust, and built for demanding industrial environments, Artec Point brings laboratory-level precision directly to the shop floor.

Key Advantages

True Metrology-Grade Accuracy
• 3D point accuracy: up to 0.02 mm
• 3D resolution: up to 0.02 mm
• Volumetric accuracy:
• 0.015 mm + 0.035 mm/m
• 0.015 mm + 0.015 mm/m with Artec Metrology Kit
• ISO 17025 accredited (based on VDI/VDE 2634 & JJF 1951)

Artec Point consistently delivers highly repeatable measurement data suitable for advanced industrial inspection.

Target-Based Laser Precision

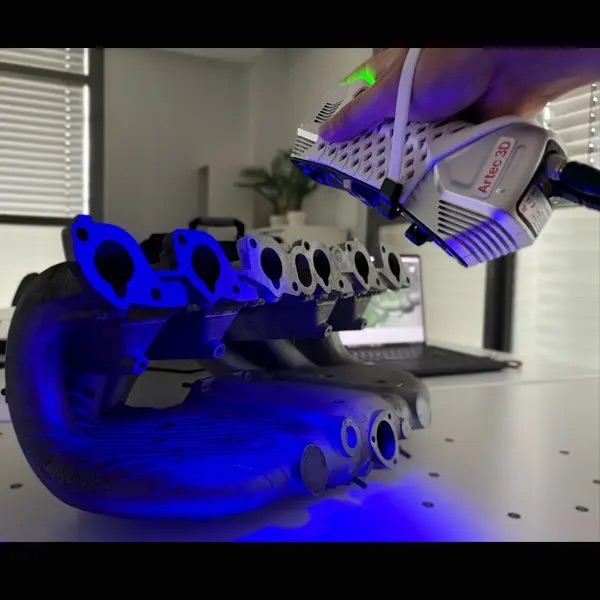

Unlike structured-light scanners, Artec Point uses a blue Class II laser (eye-safe) with precision targets for maximum tracking stability and measurement reliability.

Perfect for:
• Quality control
• Tolerance checking
• Dimensional verification
• Manufacturing inspection workflows

Three Dedicated Scanning Modes

Adapt instantly to different surfaces and geometries:
• Grid Mode – High-speed 17 × 17 crossed-laser grid for larger objects
• Parallel Laser Mode – Optimized for complex geometry capture
• Single Laser Mode – Designed for deep holes and hard-to-reach areas

Switch modes at the click of a button to maximize scanning efficiency.

Ultra-Fast & Stable Tracking
• Capture rate: up to 120 FPS
• Scanning rate: up to 2.8 million measurements per second
• Wide scanning area: 700 × 600 mm
• Depth of field: 550 mm

Steadfast tracking ensures hole-free scans and consistent performance across operators.

Lightweight & Industrial-Ready
• Weight: 570 grams
• IP50 dust protection
• Durable metal casing

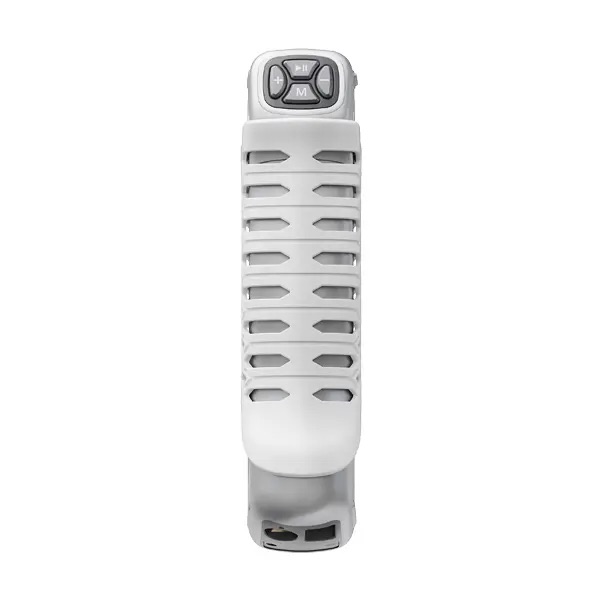

• Ergonomic one-handed operation

Designed for industrial shop floors, heavy industry, and production environments.

Seamless Workflow with Artec Studio

Artec Point integrates fully with Artec Studio, enabling:
• Real-time 3D Radar visualization
• Instant mesh generation
• Built-in inspection tools
• 3D Compare Map & tolerance checking
• Direct export to Geomagic Control X
• Scan-to-CAD functionality
• CAD comparison without leaving the interface

Combine scans with other Artec scanners for expanded workflows.

Applications

Artec Point is ideal for:
• Quality control & batch inspection
• Reverse engineering
• Retrofitting legacy parts
• Aftermarket part development
• Maintenance, repair & overhaul (MRO)
• Mold inspection
• Heavy industrial components

Industries

Best suited for:
• Automotive
• Aerospace
• Manufacturing
• Heavy Industry
• Mold-making
• Energy Sector

Technical Overview
• Scanner type: Handheld (target-based laser)
• Light source: Blue laser, Class II (eye-safe)
• 3D point accuracy: up to 0.02 mm
• Volumetric accuracy: up to 0.015 mm + 0.035 mm/m
• Capture rate: up to 120 FPS
• Measurement rate: up to 2.8 mln measurements/s
• Field of view: 700 × 600 mm
• Depth of field: 550 mm
• Weight: 570 g
• Certification: ISO 17025, VDI/VDE 2634
• Protection: IP50

Why Choose Artec Point?

✔ 0.02 mm metrology-grade accuracy
✔ ISO-certified measurement reliability
✔ Target-based industrial precision
✔ 3 scanning modes for complex geometry
✔ Ultra-lightweight handheld design
✔ Built for demanding industrial environments
✔ Seamless inspection workflow in Artec Studio
