EQUIPMENT DETAILS

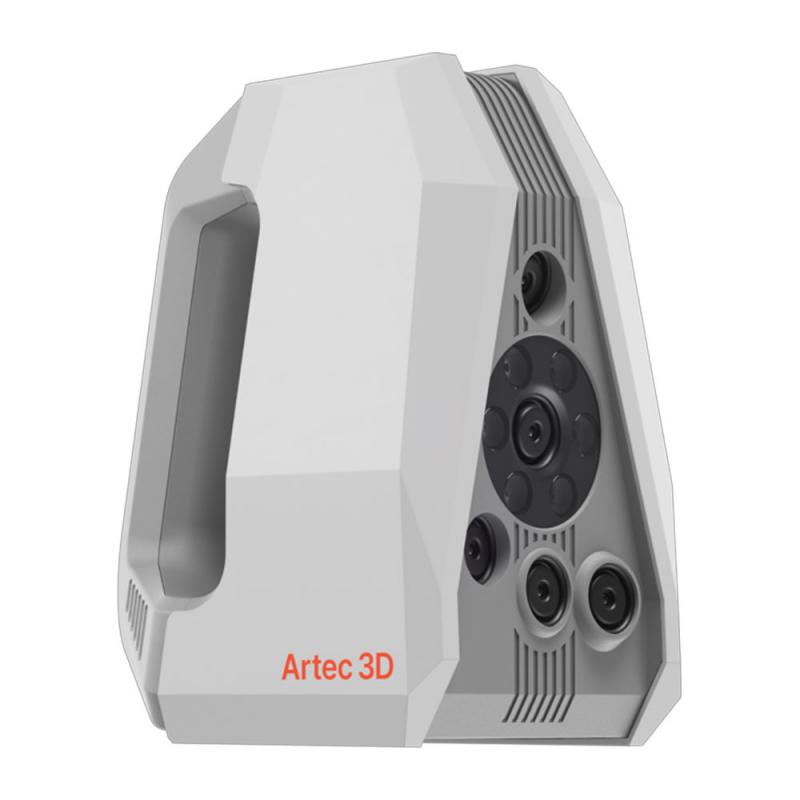

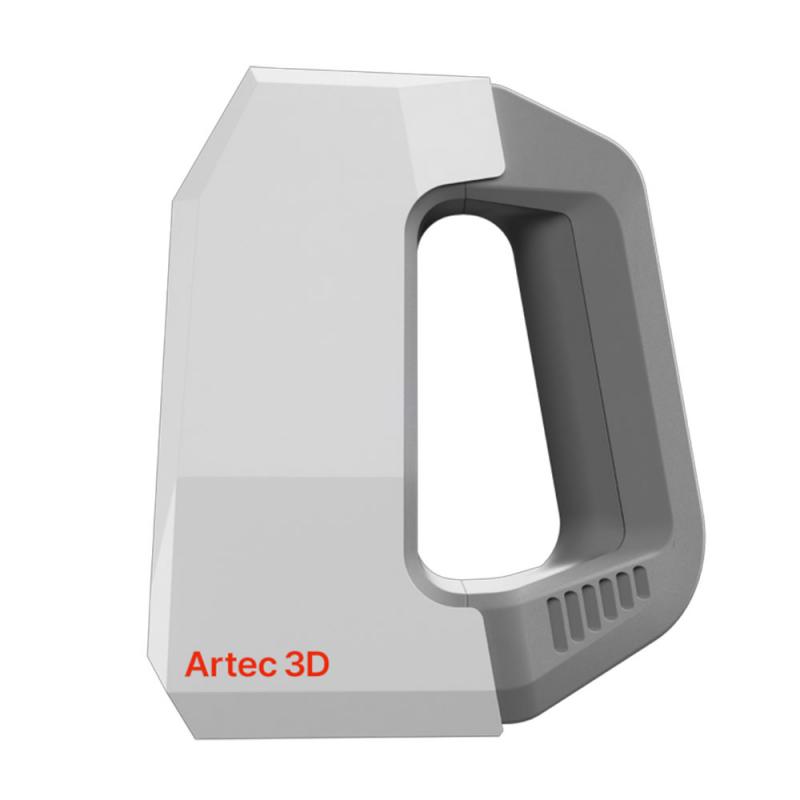

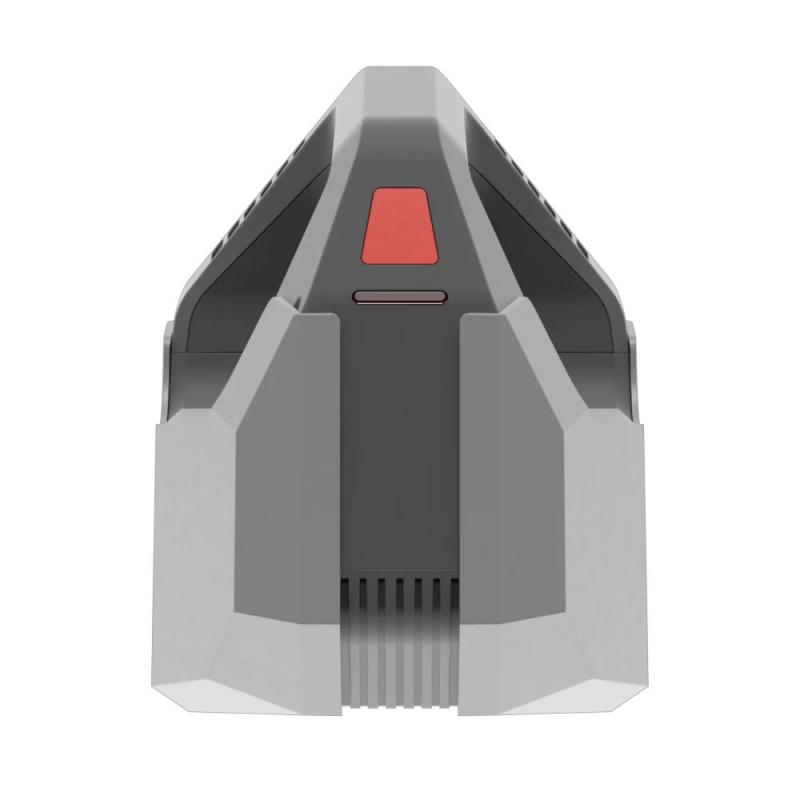

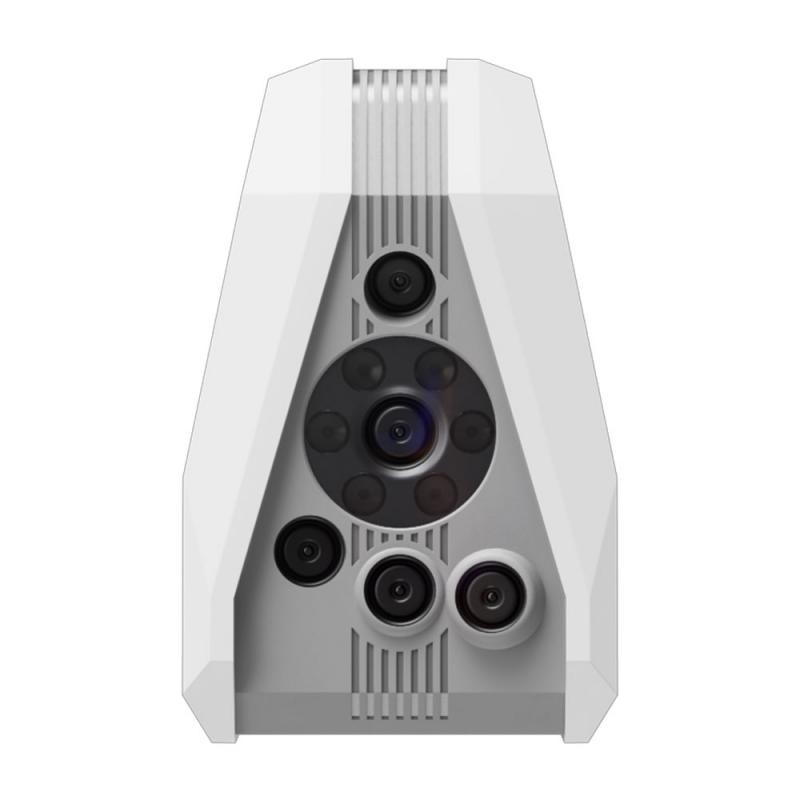

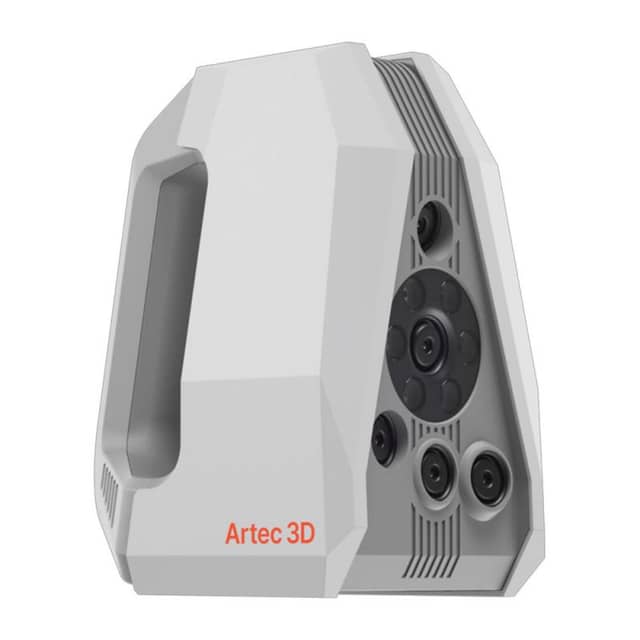

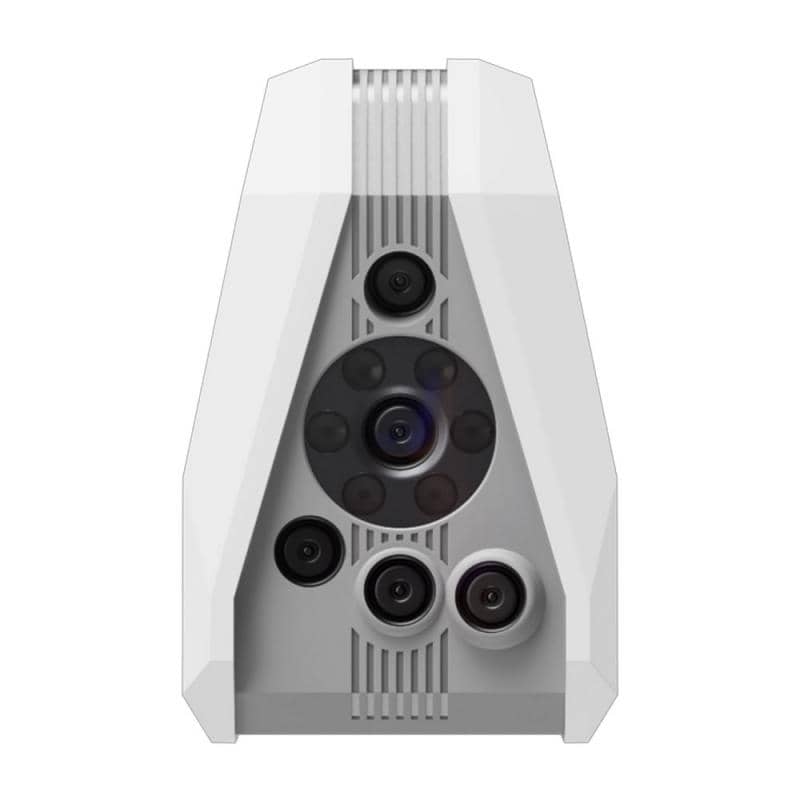

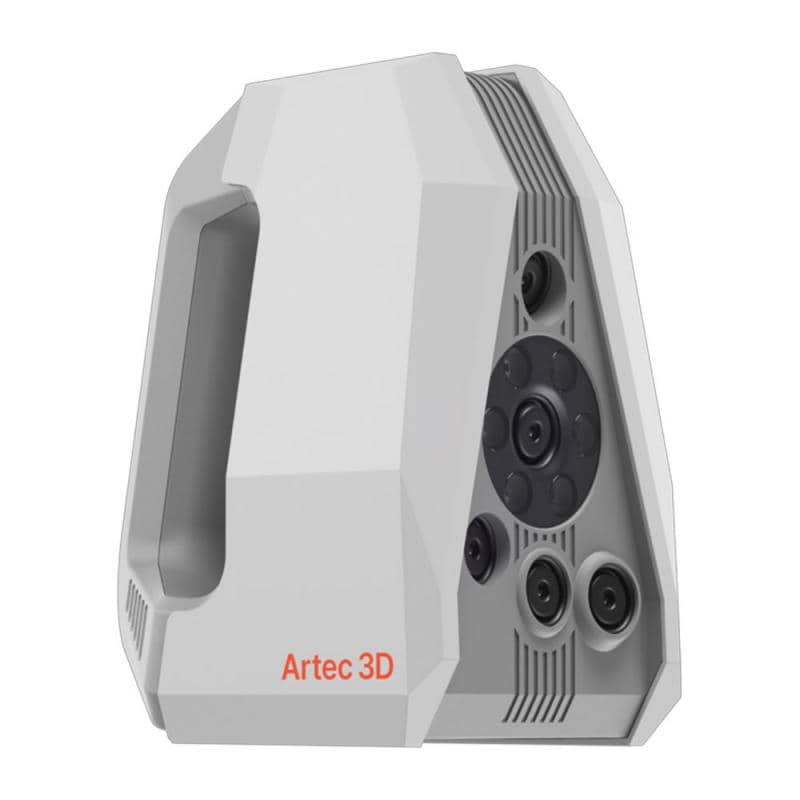

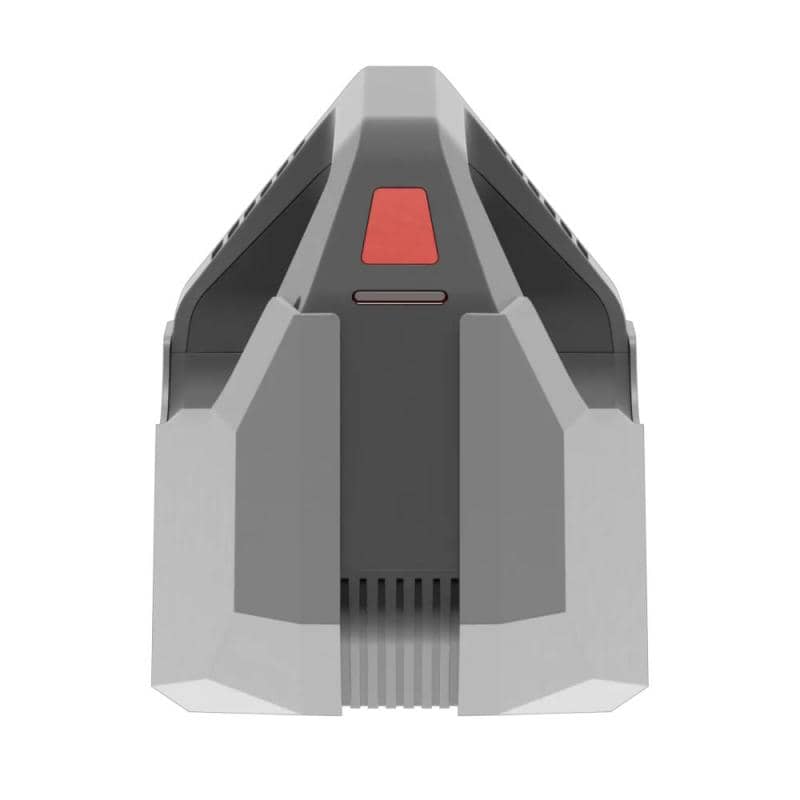

Ultra-High Resolution Target-Free Handheld 3D Scanner

Artec Spider II is an industry-leading handheld 3D scanner engineered for capturing intricate details, sharp edges, and complex geometries with exceptional precision. Powered by advanced blue-light technology, Spider II delivers ultra-high resolution and full-color 3D data suitable for professional reverse engineering, inspection, digital twin creation, and product development workflows.

With 0.05 mm resolution and 0.05 mm accuracy, Spider II faithfully digitizes everything from fine engravings on coins to detailed industrial components, producing highly accurate, true-to-life 3D models.

Key Advantages

Ultra-High Precision
• 3D resolution: up to 0.05 mm
• 3D accuracy: up to 0.05 mm
• High repeatability for inspection-grade applications
• Excellent depth capture, including sharp edges and deep features

Target-Free Scanning

Spider II uses advanced geometry and color tracking technology, allowing:
• Scanning without markers
• Faster setup
• Clean capture in restricted or sensitive environments
• Contact-free operation (ideal for medical and forensic use)

Blue-Light Technology
• 450 nm structured blue-light source
• Stable performance under various lighting conditions
• Enhanced detail capture on complex surfaces

Realistic Color Capture
• 5 MP texture resolution
• 24 bpp color depth
• High-fidelity digital replicas for design, CGI, and visualization

Comfortable & Efficient Workflow
• Real-time fusion: up to 30 FPS
• Working distance: 0.19 – 0.3 m
• Field of view (closest): 128 × 104 mm
• Field of view (furthest): 171 × 152 mm
• Lightweight: 0.95 kg
• No targets required

Designed for Complex Surfaces

Spider II performs reliably on:
• Black surfaces
• Shiny or reflective materials
• Fine mechanical features
• Deep holes and sharp contours

Applications

Artec Spider II is optimized for high-detail professional workflows:
• Reverse Engineering
• Quality Inspection (QI)
• Scan-to-CAD
• Digital Twins
• Product Development
• Prototyping
• Industrial Design
• Documentation & Archiving
• Maintenance, Repair & Overhaul (MRO)

Industries

Spider II is particularly suited for:
• Manufacturing
• Automotive
• Forensics
• Healthcare & Medical Engineering
• Art & Design
• CGI & Visual Effects
• Science & Education

Technical Specifications
• Scanner type: Handheld
• Accuracy: up to 0.05 mm
• Resolution: up to 0.05 mm
• 3D reconstruction rate: up to 30 FPS
• Working distance: 0.19 – 0.3 m
• Object size range: S–M
• Texture resolution: 5 MP
• Interface: Thunderbolt 3 (compatible with Thunderbolt 4)
• Supported OS: Windows 10 (x64), Windows 11
• 3D mesh formats: OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
• CAD formats: STEP, IGES, X_T
• Weight: 0.95 kg
• Warranty: 2 years

Software: Artec Studio

Artec Spider II operates with professional Artec Studio software, featuring:
• Autopilot mode for automated workflows
• Manual mode for advanced control
• Built-in Scan-to-CAD tools
• Reverse engineering and inspection modules
• Multi-scanner data fusion within the Artec ecosystem
• Annual feature updates to keep your system future-ready

Why Choose Artec Spider II?

✔ Ultra-high 0.05 mm resolution
✔ Target-free professional scanning
✔ Blue-light precision technology
✔ Exceptional detail capture for small and intricate objects
✔ Seamless integration with Artec ecosystem
✔ Inspection-ready data quality
✔ Lightweight and portable industrial solution
