EQUIPMENT DETAILS

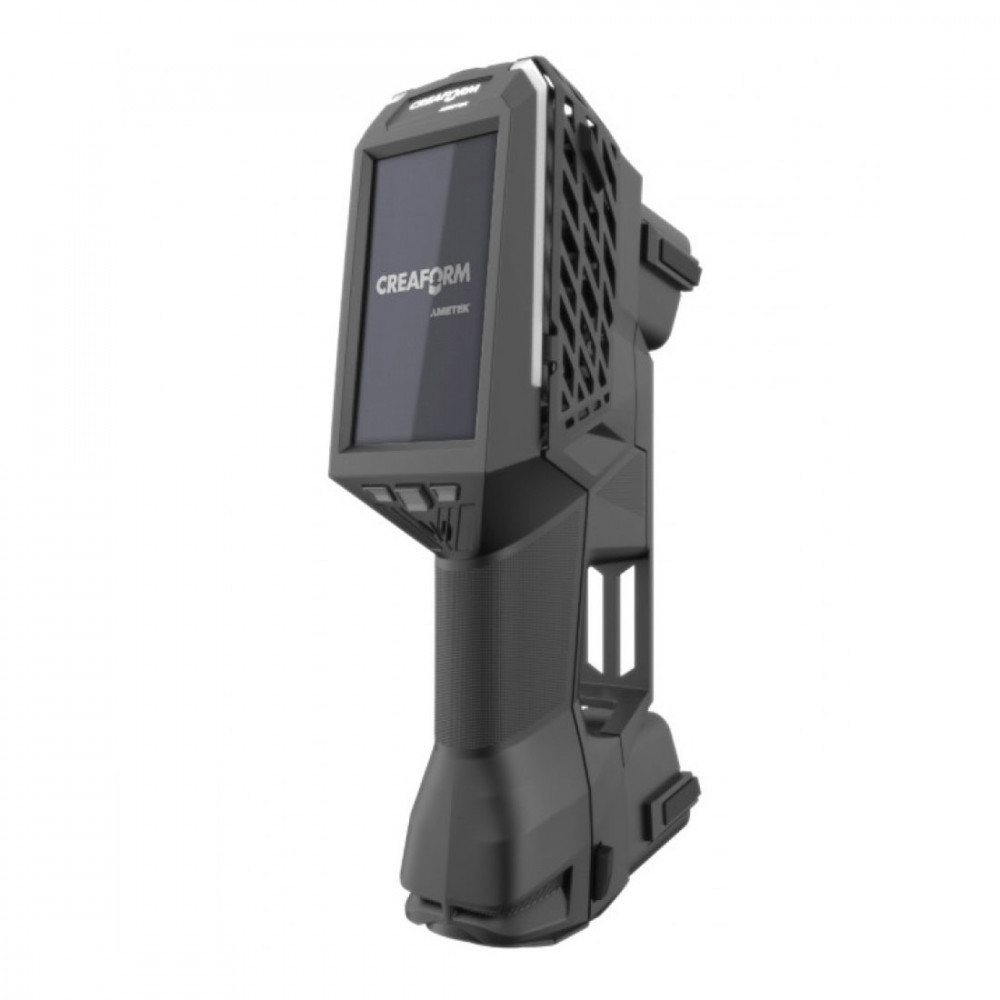

Creaform HandySCAN EVO | Elite is a next-generation metrology-grade handheld 3D laser scanner optimized for efficiency, mobility, and industrial accuracy.

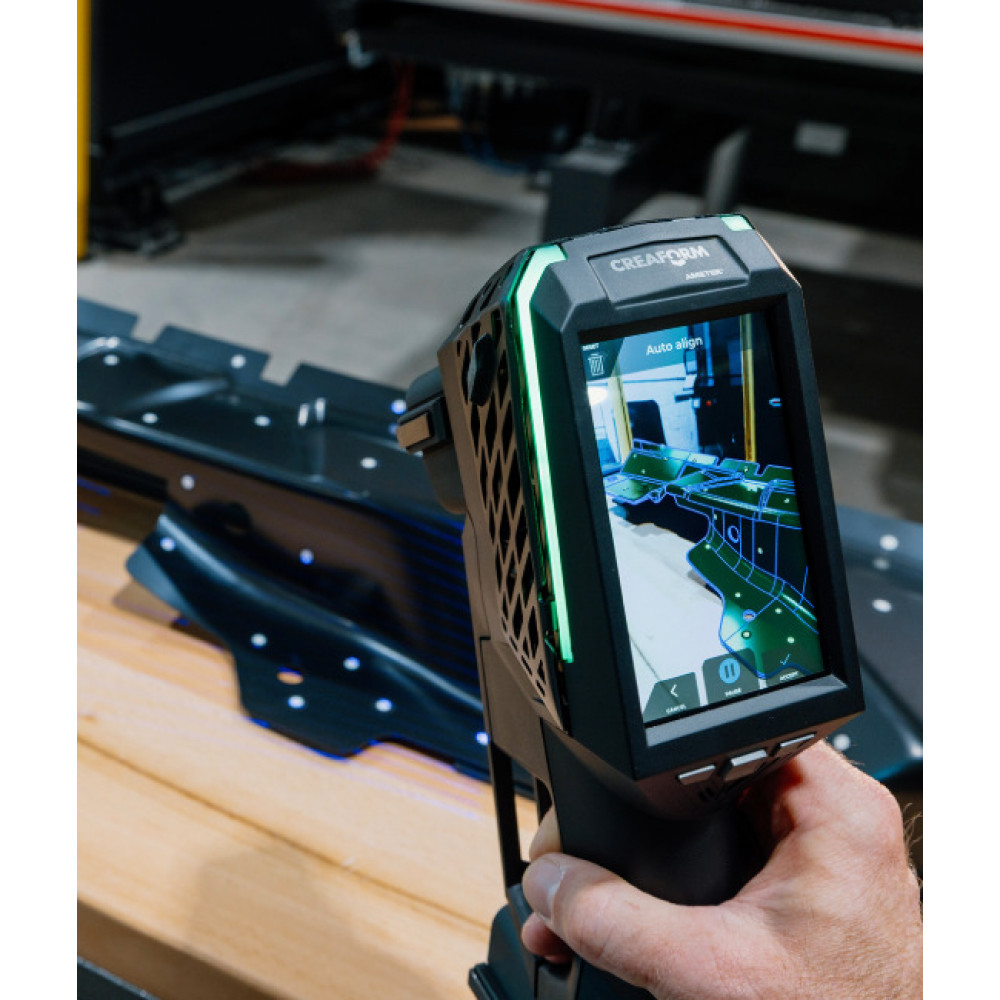

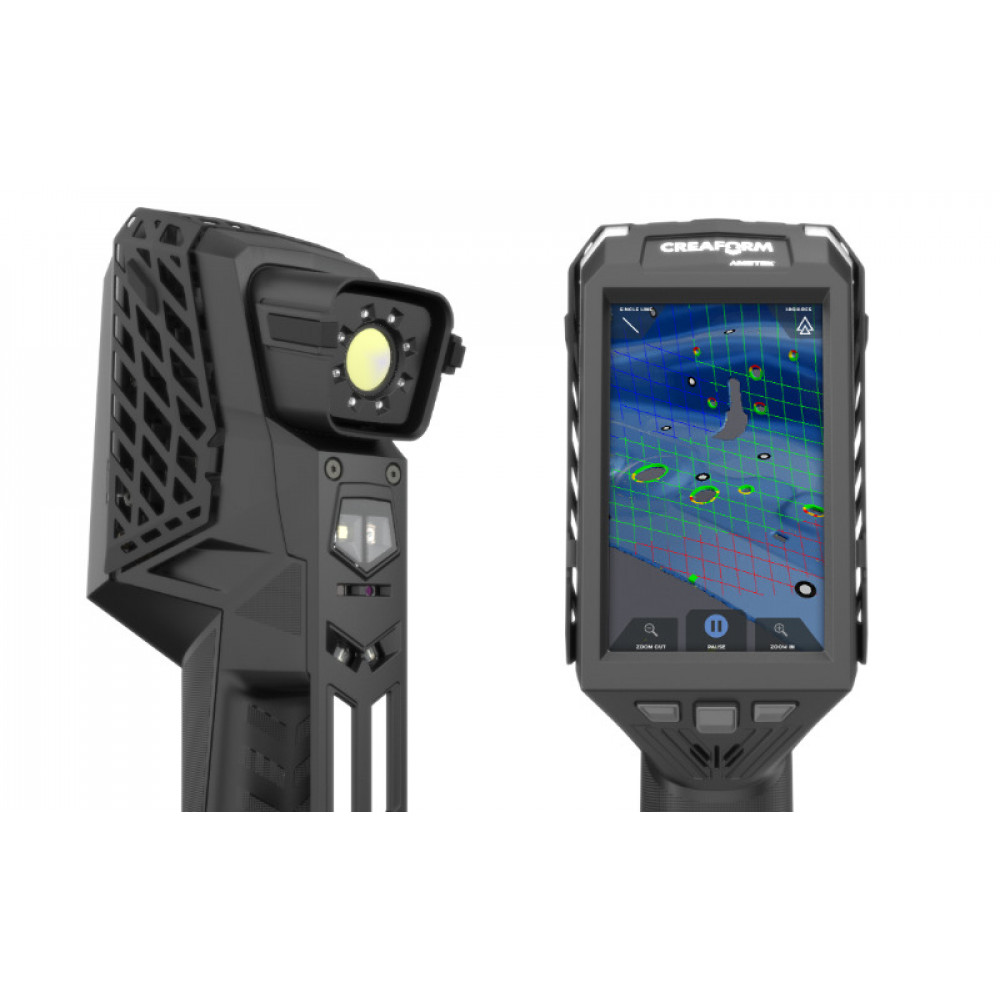

Part of the HandySCAN 3D™ lineup, the EVO Series introduces an embedded 4.3” touchscreen interface, wireless capability, augmented reality (AR) functionality, and an integrated 12 MP photo camera — significantly enhancing inspection workflows and documentation processes.

The EVO | Elite delivers accredited metrology accuracy based on ISO 10360 standards while offering real-time calibration, automatic alignment, and intelligent clean-up functions.

Designed for quality control, reverse engineering, and advanced industrial measurement, it provides full integration with Creaform.OS™ and Creaform Metrology Suite™ modules (Scan-to-CAD, Inspection, Automation, Dynamic Tracking).

Technical Specifications

• Scanner Type: Portable Laser 3D Scanner
• Accuracy: 0.020 mm
• Accuracy (Limited Edition): 0.015 mm
• Volumetric Accuracy:
• 0.020 mm + 0.020 mm/m
• 0.020 mm + 0.015 mm/m (Accu+ Kit)
• 0.015 mm + 0.015 mm/m (Limited Edition + Accu+)
• Acceptance Test: ISO 10360
• Light Source: 46 blue laser lines (+1 extra line) + laser pointer
• Working Distance: 200 – 750 mm
• Scanner Controls: 4.3” touchscreen + physical buttons
• Photo Camera: 12 MP, AR-enabled
• Real-Time Calibration: Included
• Automatic Alignment & Clean-Up: Included
• Weight: 1.04 kg
• Laser Class: 2M (eye safe)
