EQUIPMENT DETAILS

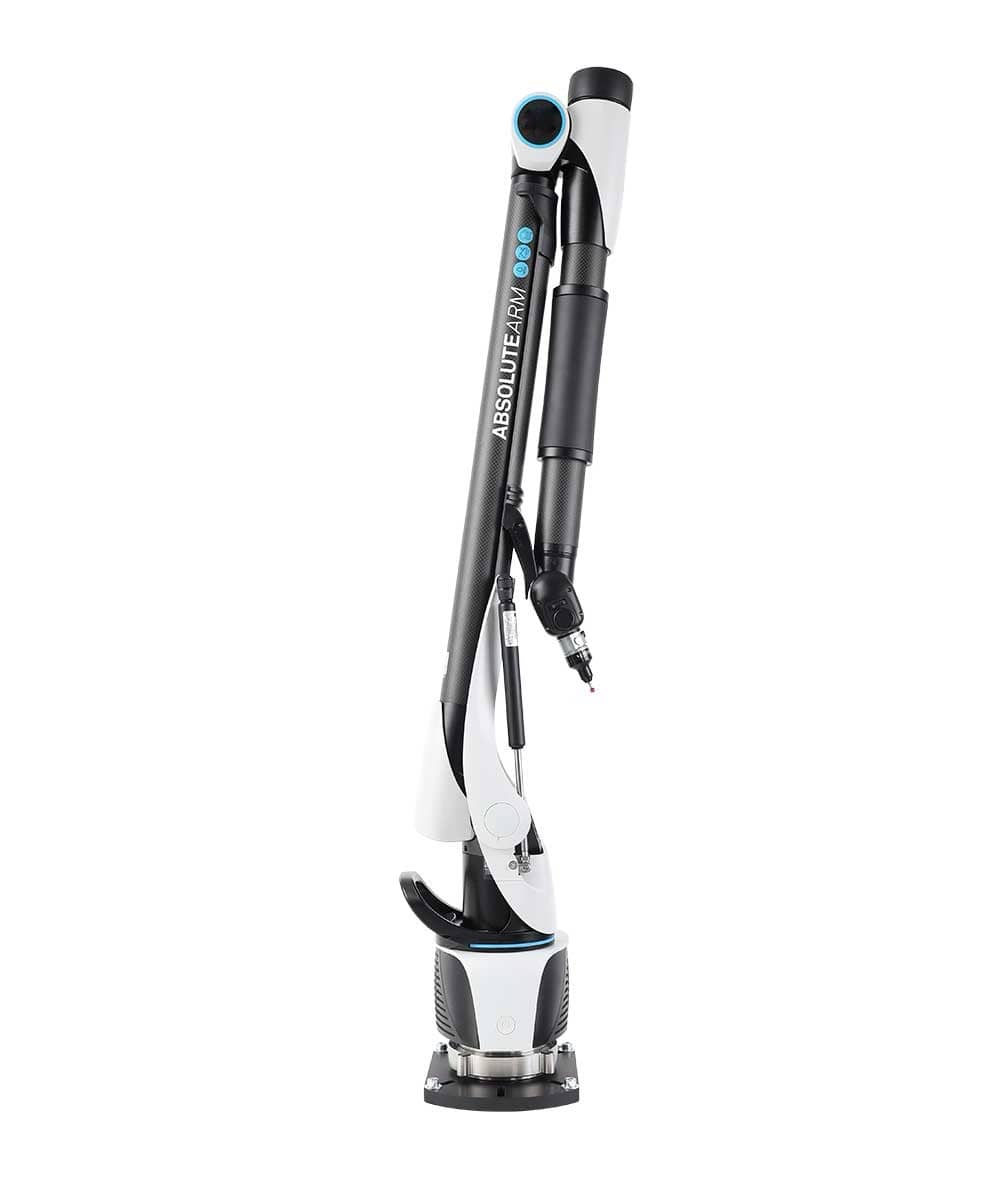

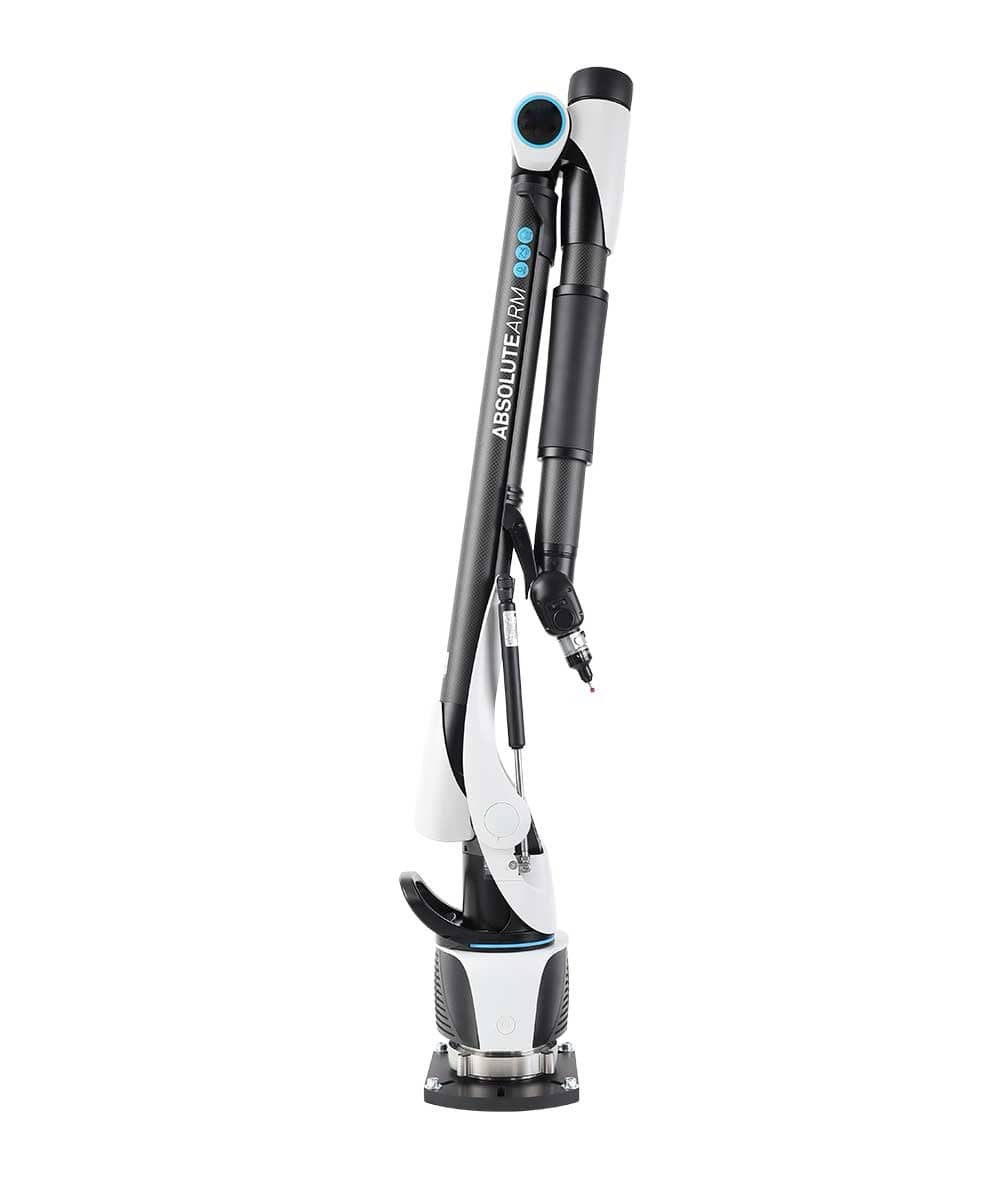

The Hexagon Absolute Arm V3P 8545 6-Axis is a high-end portable coordinate measuring machine (CMM) from the advanced 85 Series, designed for ultra-precise tactile inspection of large-scale components and assemblies.

This configuration (Model 8545) offers a 4.5 m measuring range (4.73 m max reach), making it the largest and most capable model in the 85 Series. It combines extended reach with enhanced measurement accuracy, making it ideal for demanding applications such as aerospace structures, large tooling, automotive body inspection, energy infrastructure, and heavy industrial assemblies.

The 6-axis configuration is optimized for tactile probing, delivering highly accurate and repeatable point measurements for dimensional inspection, alignment, and quality assurance. Equipped with patented Absolute Encoder technology, the system requires no warm-up or referencing, allowing immediate and reliable operation.

The arm’s carbon-fiber construction ensures exceptional rigidity and thermal stability, even in challenging environments. The Zero-G counterbalance system significantly reduces operator fatigue and improves control when working across large measurement volumes.

Fully compatible with industry-leading metrology software such as PolyWorks, SpatialAnalyzer, and PC-DMIS, the Absolute Arm integrates seamlessly into advanced inspection workflows and digital manufacturing processes.

Key features include:

* Model-specific configuration: V3P 8545 (85 Series)
* Measuring range: 4.5 m (4.73 m max reach)
* High-accuracy tactile measurement (6-axis)
* Maximum precision within the 85 Series
* Absolute encoders – no warm-up or referencing required
* Carbon-fiber structure for maximum rigidity and stability
* Zero-G counterbalance system for ergonomic operation
* Portable CMM for large-volume precision inspection
* IP54-rated for industrial environments
* Compatible with leading metrology software platforms
