Trimble X7 Review – “Next‑Generation Scanner”

Introduction

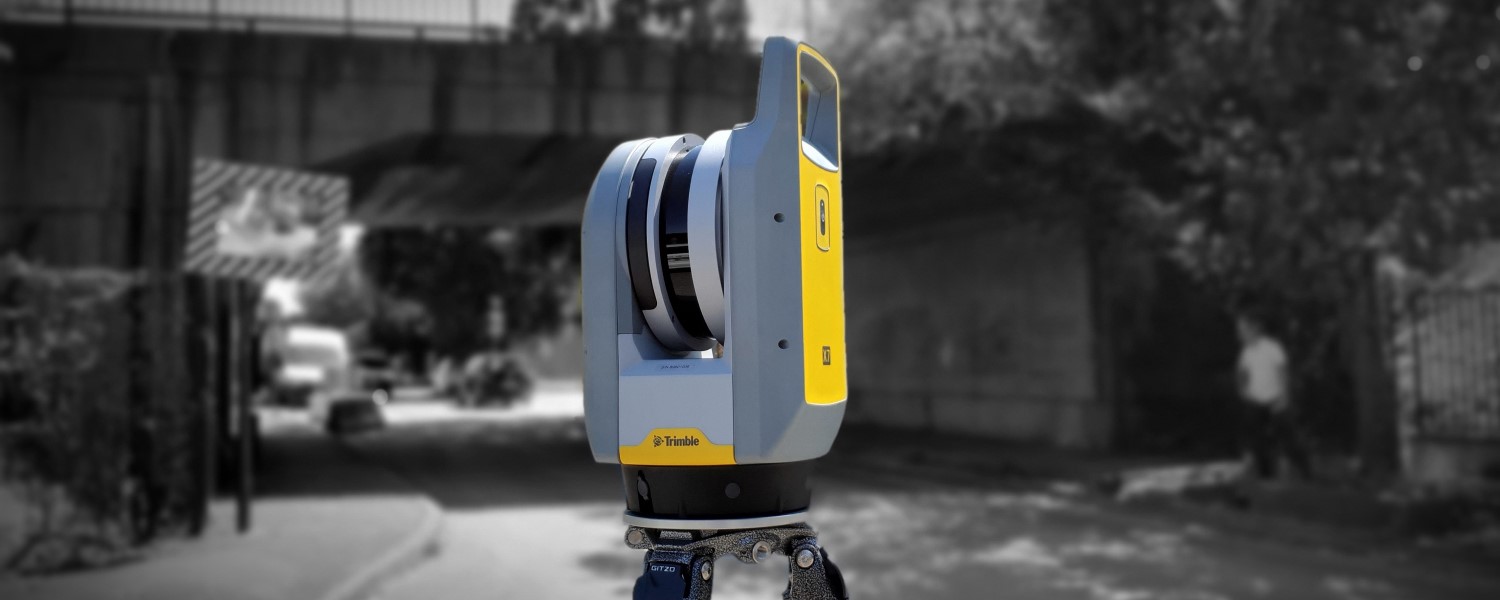

In recent years, laser scanning technology has made a qualitative leap: users demand tools that deliver accurate data while minimising preparation and processing time. The Trimble X7 is one such tool. It combines optical technology with automated processing and is positioned as a “smart” scanner that fits into a backpack. Weighing around 5.8 kg and supplied with a T10 tablet, the X7 is suitable for single‑operator field work. The Trimble Perspective software provides live control, viewing and verification of data.

Next‑Generation Technologies

Automatic calibration and X‑Drive

The main difference between the X7 and previous models is the X‑Drive system, which introduces a dual vertical drive. This assembly combines a survey‑grade servo drive and a sealed high‑speed scanning mirror, allowing the instrument to automatically calibrate itself before each survey without operator input. According to the manufacturer, this automatic calibration works without targets, so the user has no downtime for instrument maintenance. Such automation increases accuracy and extends the instrument’s life.

Self‑levelling and accuracy

The X7 is equipped with an automatic levelling system with survey‑grade accuracy—it levels each setup and compensates tilt up to ±10° with accuracy better than 3 arc seconds. The measurement range is 0.6–80 m, suitable for most construction and engineering tasks, while scanning speed reaches 500 thousand points per second. According to a comparative table, the error is about ±2 mm at 10 m. With a weight of 5.8 kg and IP55 protection, the instrument operates reliably in temperatures from −20 °C to +50 °C. A high‑sensitivity EDM captures dark or reflective surfaces.

Registration Assist and Perspective integration

Beyond hardware innovations, the Trimble X7 stands out for its software. Registration Assist automatically registers, refines and aligns scans, producing a report in the field. This reduces office processing time and ensures that the object has been fully captured. The tool is integrated with the Trimble Perspective application, which provides intuitive workflows: the scanner can be controlled, point clouds viewed and data verified from the T10 tablet or via a single button. Users can assign tags, group scans and make annotations, and a built‑in laser pointer can indicate specific points on the object.

Applications and industry case studies

The Trimble X7 is positioned as a versatile scanner for medium‑range work. It is particularly useful for:

• Construction and BIM. The instrument allows precise as‑built models, checks the geometry of structures and monitors verticality, flatness and deformations. Thanks to Registration Assist, repeat site visits can be avoided and data can be transferred directly into a BIM model.

• Industrial facilities and infrastructure. In High Sensitivity mode the scanner captures details under dark or reflective surfaces—important when inspecting pipelines, factories and platforms. The temperature range and IP55 rating enable both outdoor and indoor work.

• Topographic and land surveying. X7 helps collect data quickly for cadastral and land measurements. Its compactness and self‑levelling make it easy to carry and set up in hard‑to‑reach places.

• Heritage, cultural projects and forensics. The scanner is eye‑safe (laser class 1) and provides detailed data without contact, important in museums, historic sites and crime scenes.

Example: a large housing project

The practical benefit of the X7’s automation was demonstrated in a project for the Danish housing association AAB, which manages around 20 000 apartments. A contractor needed to digitise thousands of dwellings, and traditional methods would have taken a long time. They chose the Trimble X7: the automatic cloud registration in the field reduced both the scanning time and virtually eliminated office processing. With a speed of 500 thousand points per second and on‑tablet registration, 3D models were ready faster, reducing apartment downtime and accelerating maintenance planning.

Advantages and limitations

Advantages

• Ease of use. Thanks to automatic calibration and levelling, the X7 requires little preparation; the start‑up from cold takes about two minutes and the initial calibration is performed automatically.

• Time savings. Registration Assist allows scan registration to be completed on site, minimising trips and office work.

• Portability and reliability. Weighing around 5.8 kg with compact dimensions, the unit can be carried with tripod in a soft backpack. IP55 protection and a wide temperature range extend its use.

• Software compatibility. The X7 integrates well with Trimble Perspective and other CAD/BIM systems, and data can be exported to LAS, E57, RCP and more.

Limitations

• Range. The maximum distance of 80 m limits its use on large infrastructure projects or when scanning tall structures. For longer‑range tasks, models like Trimble X9 or X12 are better suited.

• Speed. A speed of 500 thousand points per second is lower than that of flagship models (e.g., TX8 or X9, which scan up to 1 million pts/s). However, it suffices for most construction and topographic tasks.

• Cost. The retail price of a new X7 is around USD 35 000, although discounts and used units can be found at about 15–16 thousand USD. This makes the X7 more affordable than high‑end models yet still a significant investment.

Conclusion

Trimble X7 can rightly be called a next‑generation scanner. Automatic calibration, self‑levelling and Registration Assist dramatically reduce preparation and processing time, while compact size and ruggedness allow work in challenging conditions. In 2025, Trimble continues to release firmware updates: version 2.6.109 (June 2025) improved cybersecurity and compatibility with Perspective 2025. The X7 is ideal for medium‑size projects in construction, industry and surveying where accuracy, speed and reliability are essential. With a reasonable budget, this scanner can become the backbone of a digital workflow and provide a quick return on investment.
