EQUIPMENT DETAILS

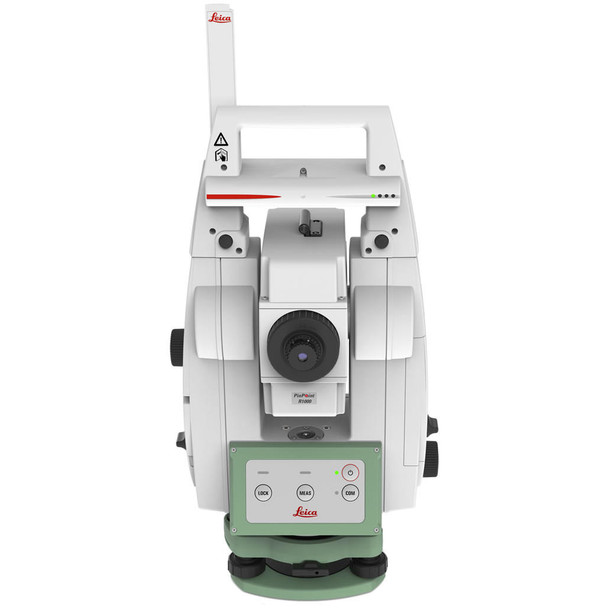

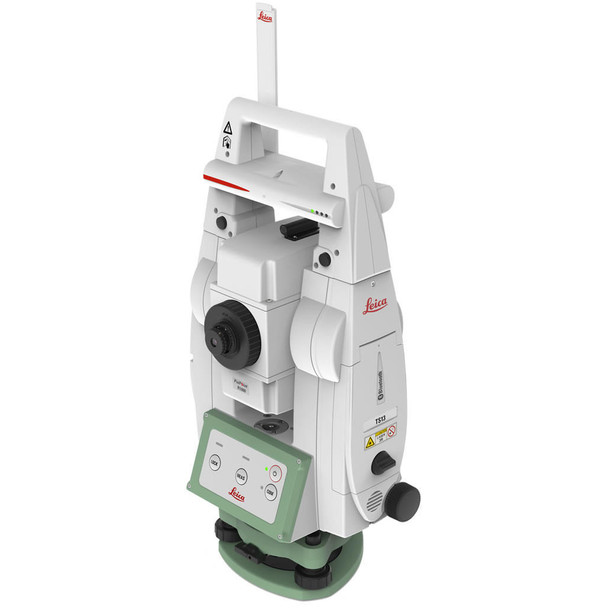

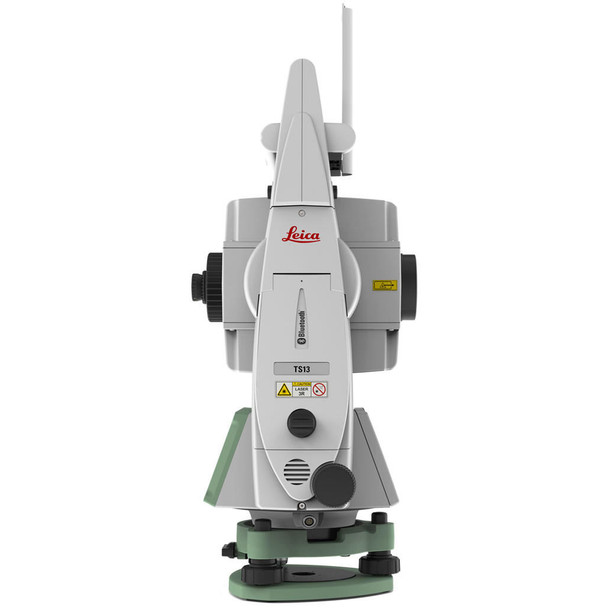

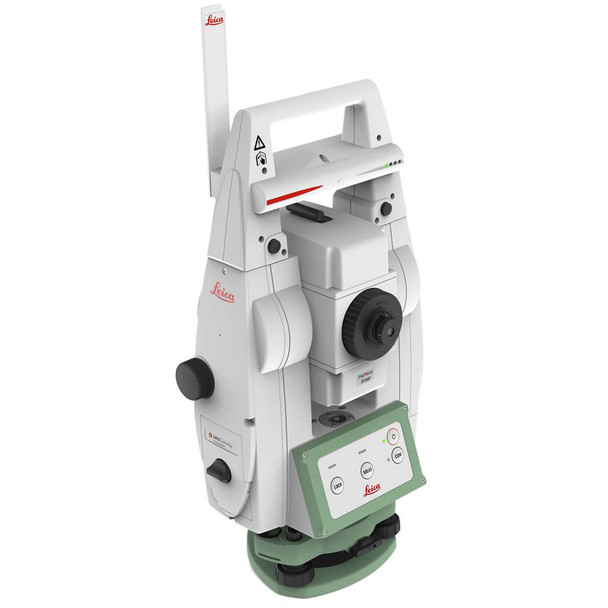

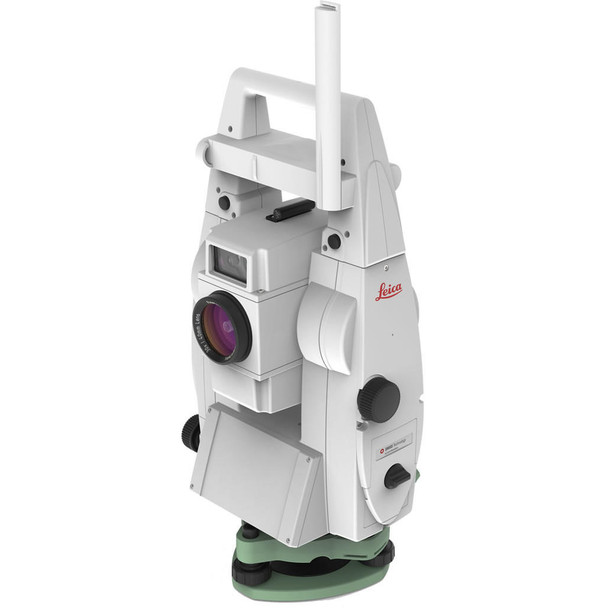

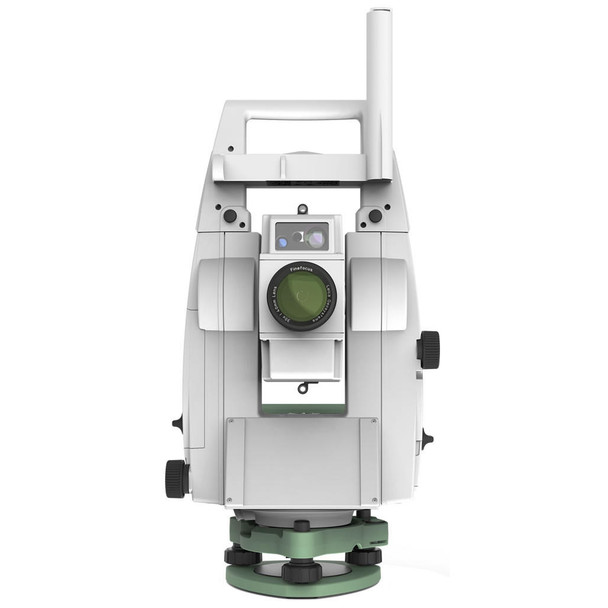

Leica TS13 is a scalable robotic total station designed for professional surveying and construction layout applications. Positioned as a mid-range solution in the Leica portfolio, the TS13 combines reliable measurement performance with flexible upgrade capabilities and modern field software.

The instrument provides angular accuracy of 5 arcseconds and reflectorless distance measurement up to 500 metres. Equipped with Leica Automatic Target Recognition (ATR) technology, the TS13 automatically detects and measures prisms with high precision, improving productivity in surveying operations.

Leica TS13 can be upgraded with additional automation features such as prism lock and robotic functionality, allowing users to scale the instrument according to project requirements. The system works seamlessly with the Leica CS20 field controller and Leica Captivate software, providing a modern 3D measurement interface for efficient field operations.

One of the key innovations of the TS13 is Leica AutoHeight technology. With a simple button press, the instrument automatically measures its height, eliminating manual measurements and reducing the risk of setup errors.

Captured data can be transferred directly to Leica Infinity office software for processing, analysis and integration with CAD and BIM workflows.

Key features include:

• 5″ angular measurement accuracy
• reflectorless distance measurement up to 500 m
• Automatic Target Recognition (ATR) technology
• scalable robotic functionality with upgrade options
• AutoHeight automatic instrument height measurement
• compatibility with Leica CS20 field controller
• Leica Captivate field software integration
• efficient data transfer to Leica Infinity office software

Leica TS13 robotic total station is widely used for construction layout, land surveying, infrastructure projects, and engineering measurement tasks where reliable automation and flexible instrument configuration are required.
