EQUIPMENT DETAILS

Professional LED lighting for high-quality color scans!

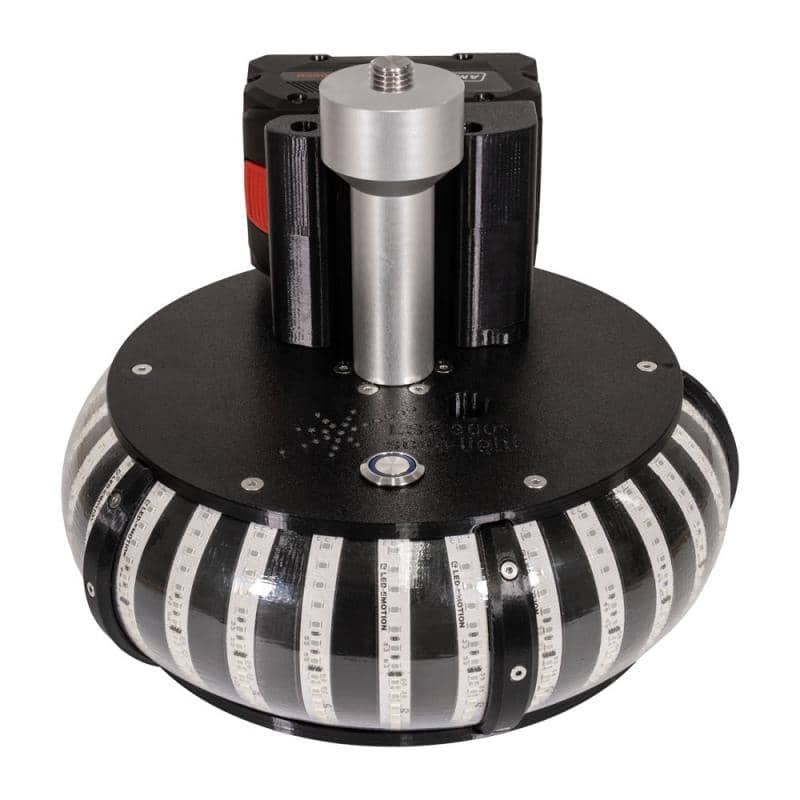

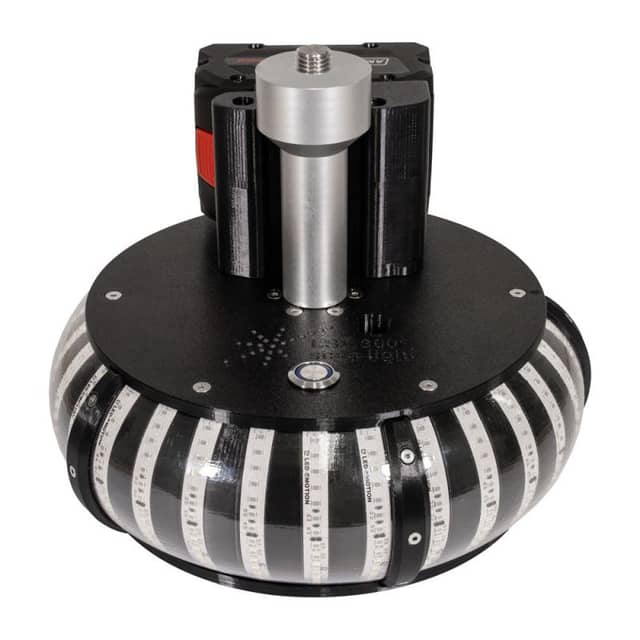

In poorly illuminated environments, the color quality of laser scans often suffers significantly. The 360° scan light was specially developed to reliably solve this problem by ensuring homogeneous illumination and enabling high-quality color scans.

With its powerful light output, the 360° scan light “turns night into day” and creates ideal conditions for high-quality color images. It is perfectly suited for scanning applications in:

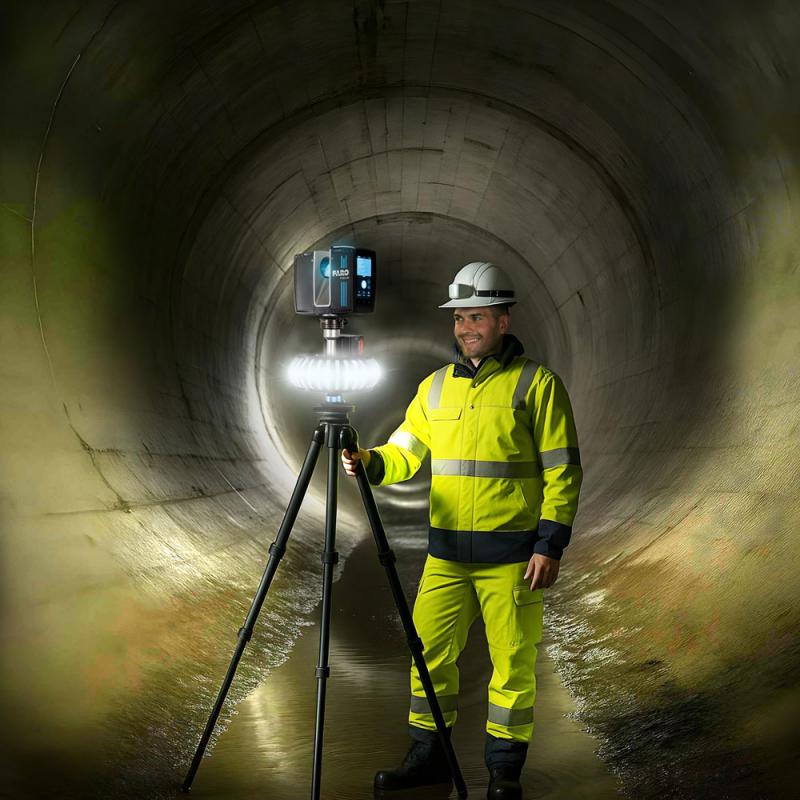

• Caves and tunnels
• Technical facilities and industrial areas
• Dark rooms
• Outdoor areas in the dark

The light is designed for temperatures from –20°C to +50°C and, thanks to its IP42 protection rating, can be used indoors and in protected outdoor areas.

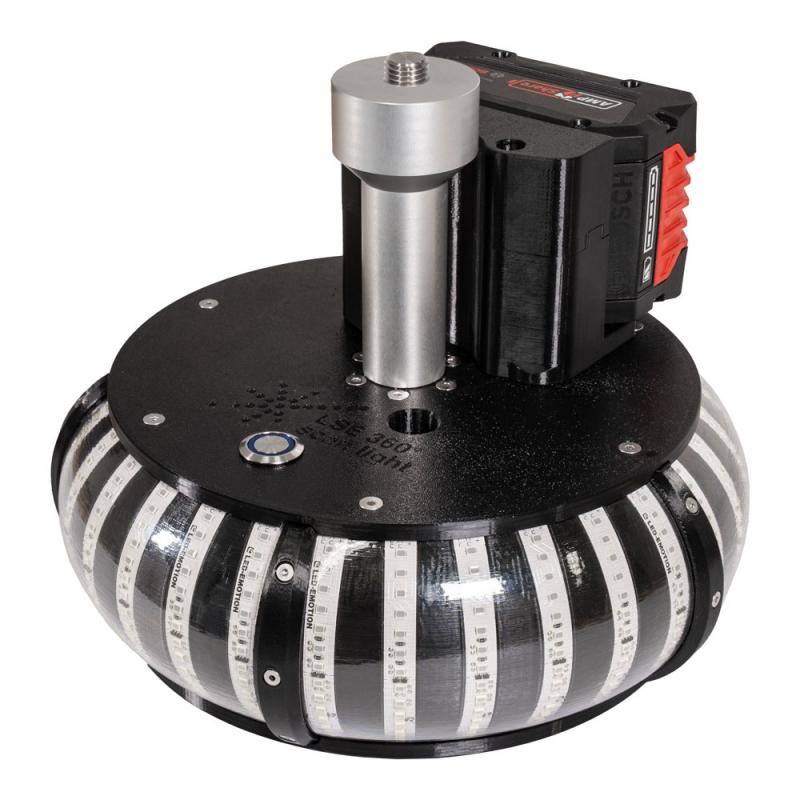

Its compact design and operation with an external Bosch GBA 18V battery make it highly mobile and travel-friendly.

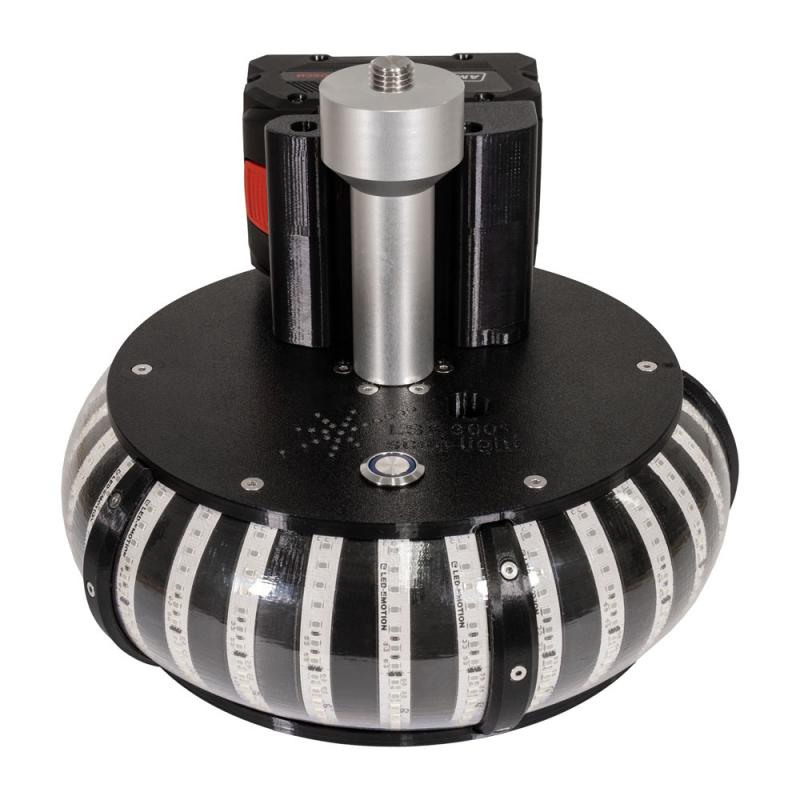

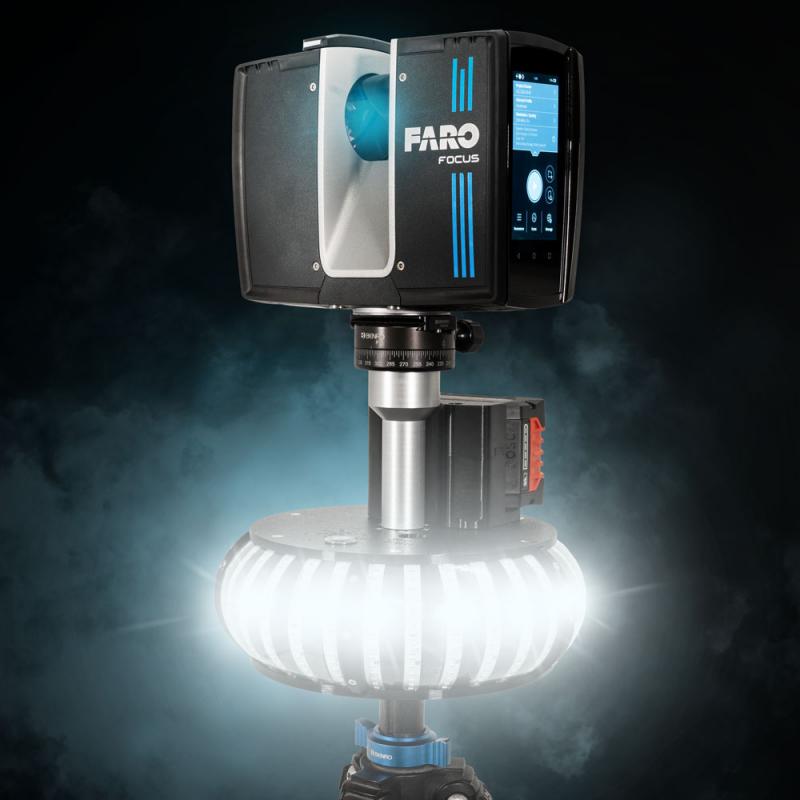

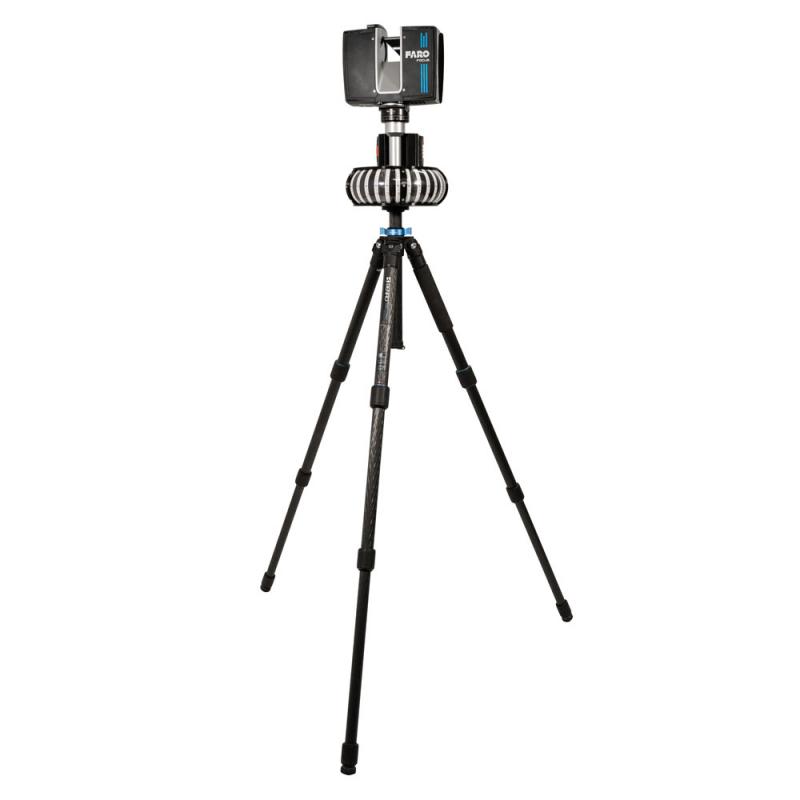

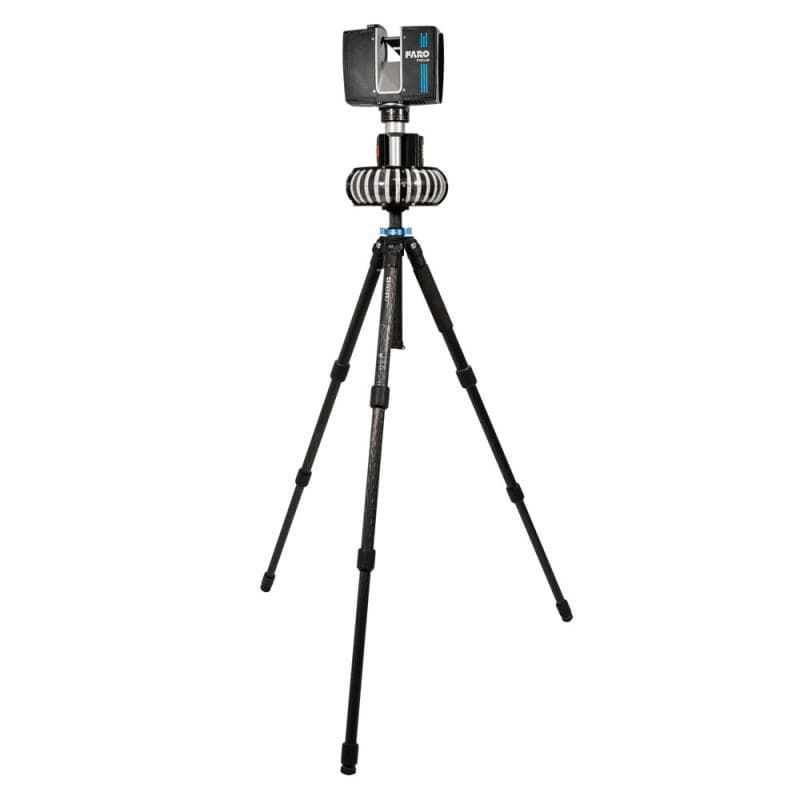

The robust 360° scan light is mounted between the 3D laser scanner and tripod and is compatible with:

• Tripods with 5/8” or 3/8” external threads (including adapter)
• 3D laser scanners with:

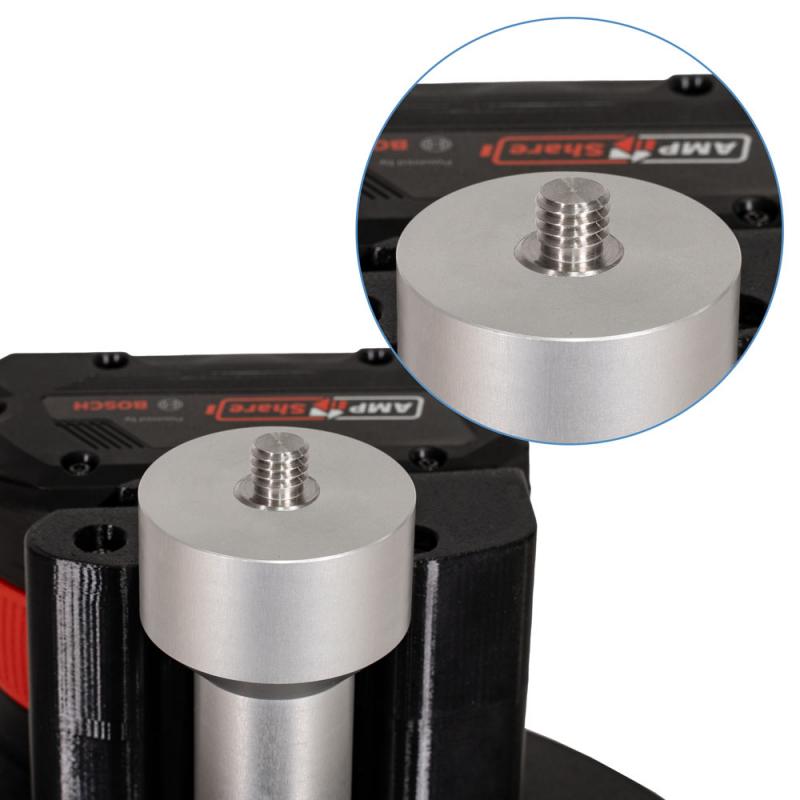

• 5/8” female thread
• 3/8” female thread
• 1/4” female thread

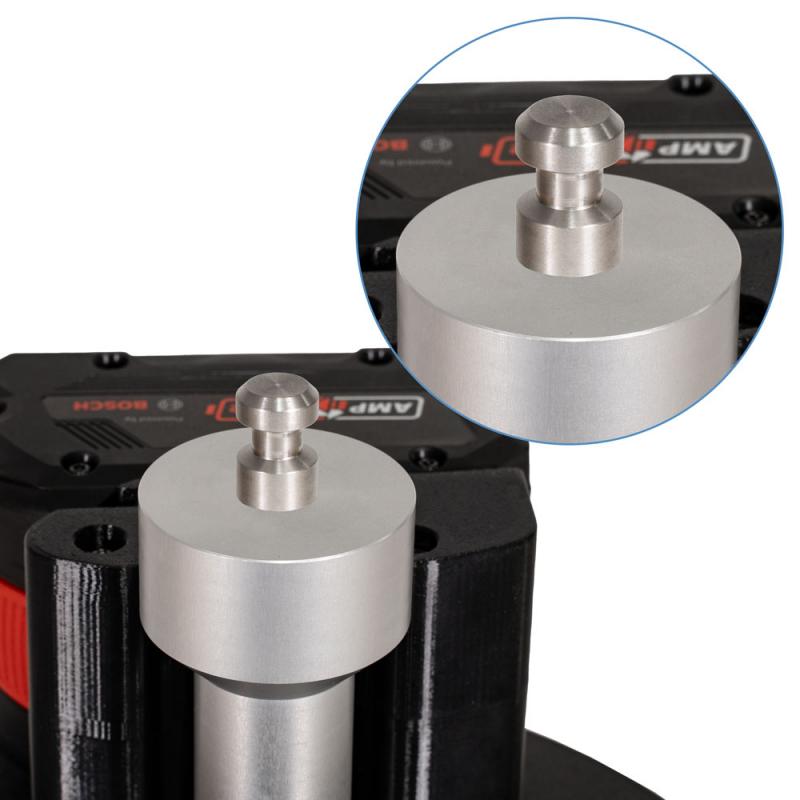

• Leica pin (RTC360)
• Trimble pin (X7, X9)

Designated use

• Better illumination in poor lighting conditions
• Realistic color reproduction in coloured point clouds

Product characteristics

• Weight including adapter: 2.2 kg (without battery)
• Material: PET / aluminum core
• Tripod connection: 5/8” internal thread (reducible to 3/8”)
• Scanner connection: optional 3/8”, 5/8”, Leica pin, Trimble pin
• Light color: neutral white 4000 K
• Luminous flux: 2,976 lm per field — total 14,880 lm
• Operates with Bosch 18V 8.0Ah battery (not included)
• Power consumption: 30 W
• Voltage: 24 V
• Efficiency: 172 lm/W
• Battery model: Bosch 18V

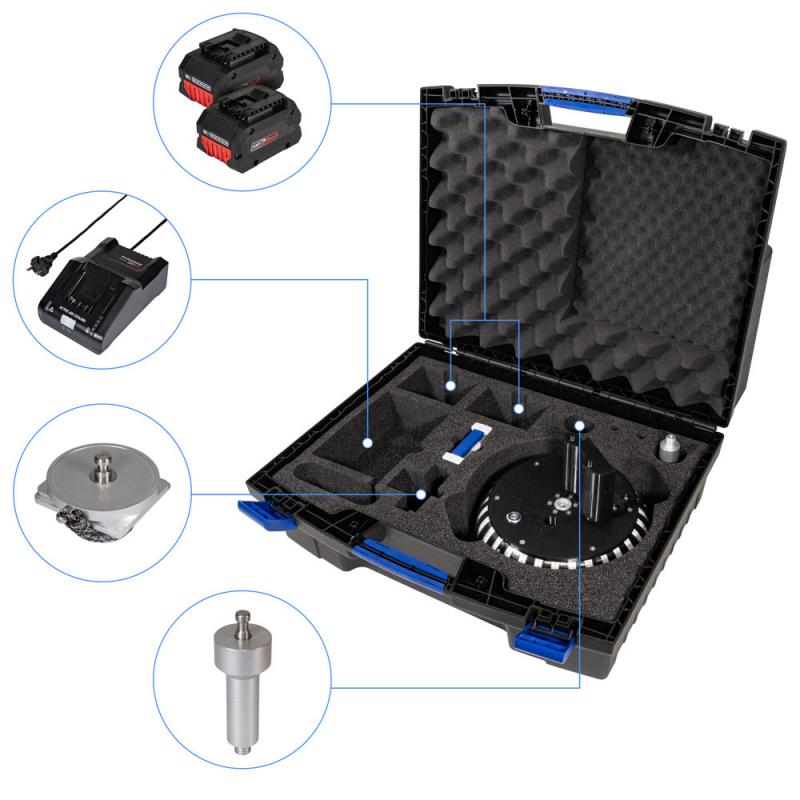

Delivery content

• Light
• Spacer with adapter for laser scanners
• 5/8” to 3/8” adapter

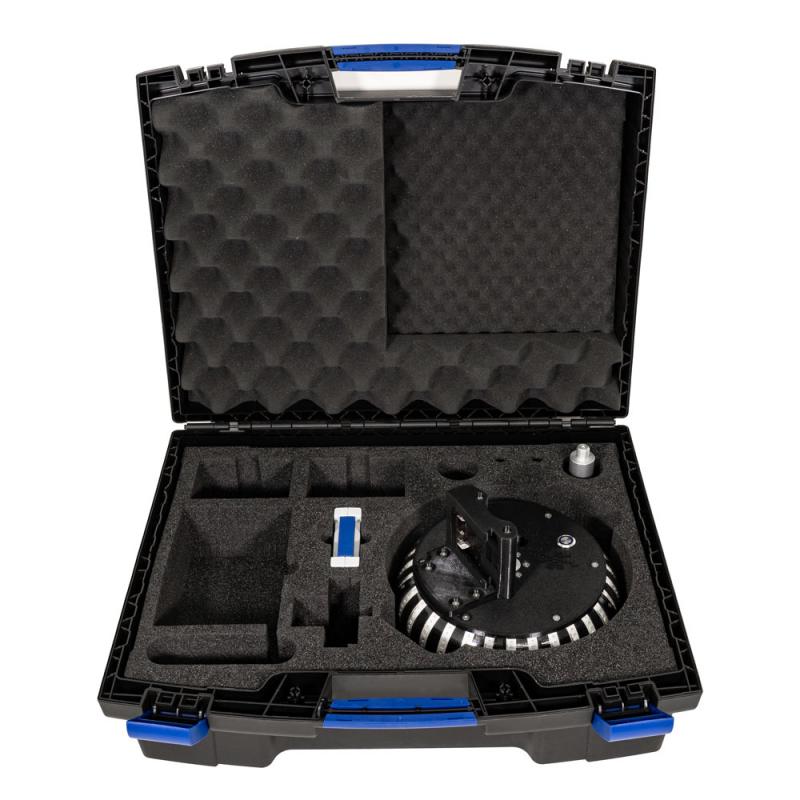

• Case with fitting inlay
• NOT included: Bosch batteries and charger
