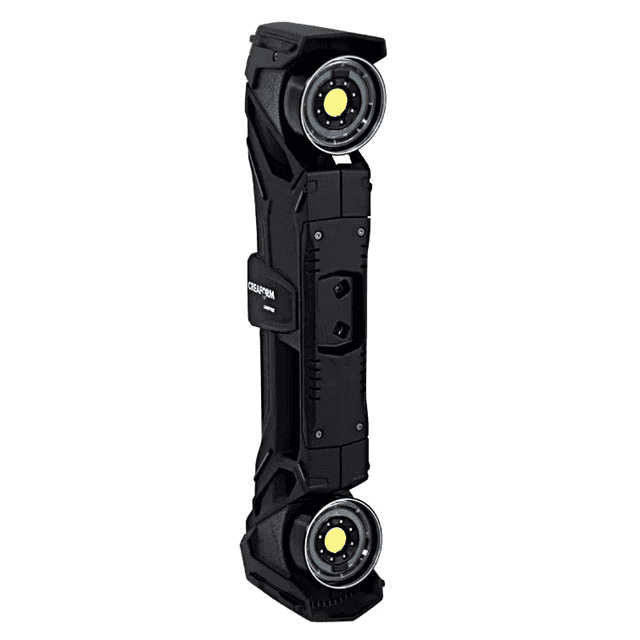

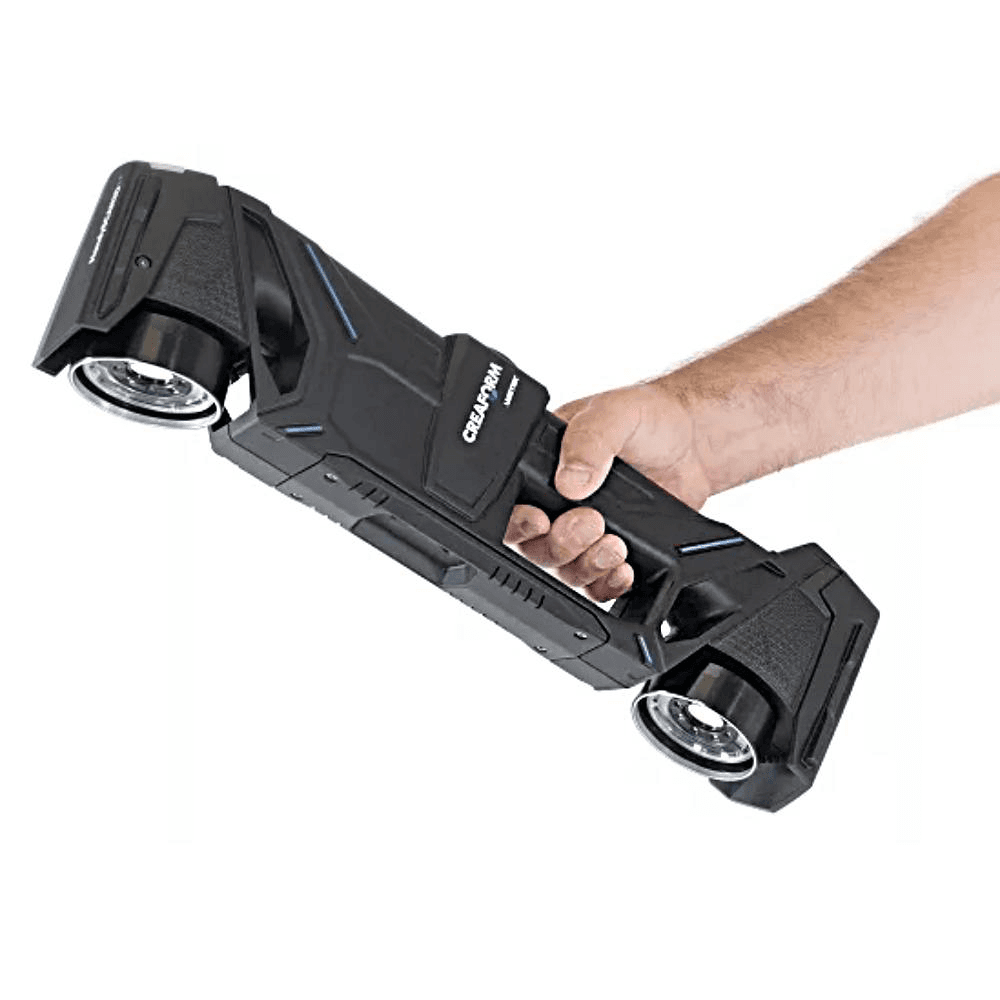

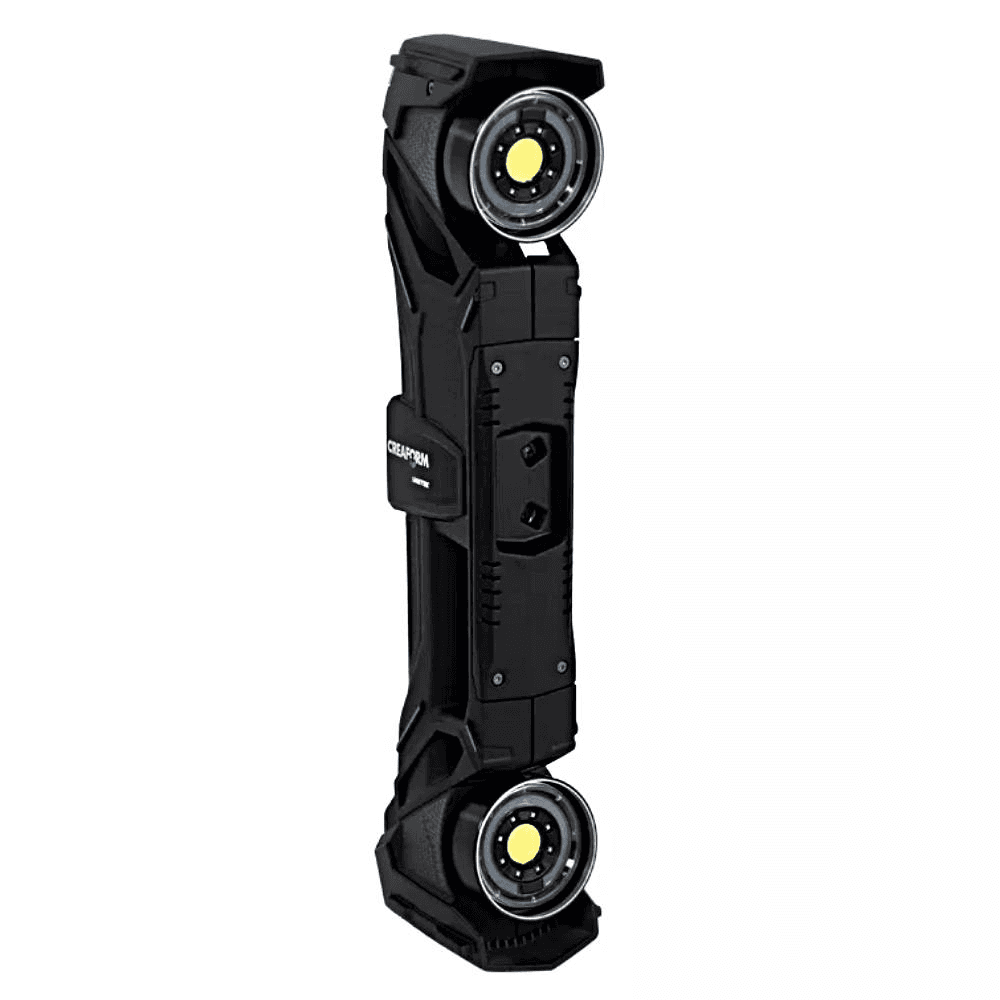

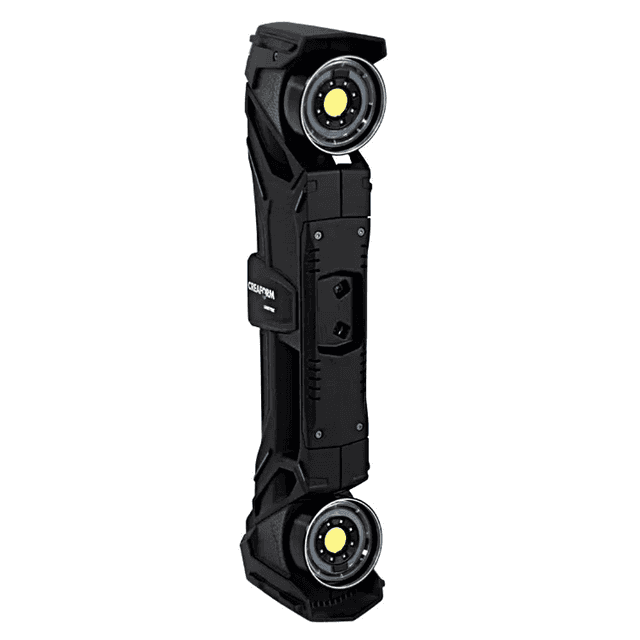

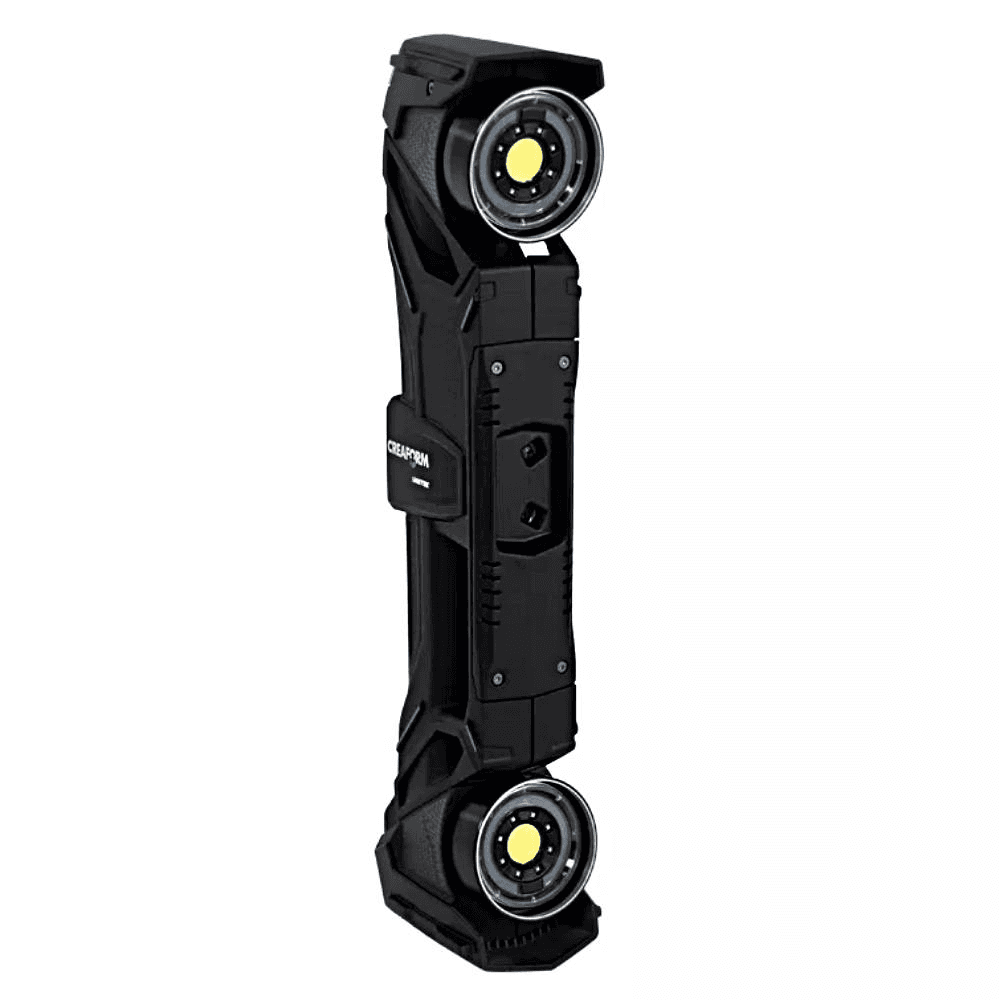

Creaform HandySCAN MAX | Elite is a portable metrology-grade 3D laser scanning solution engineered for highly accurate measurement of large and complex parts up to 15 meters.

Part of the HandySCAN 3D™ MAX Series, this Elite version is ISO 17025 accredited and compliant with VDI/VDE 2634 Part 3 standards. It combines high volumetric accuracy, large working distance, and integrated photogrammetry to ensure stable and repeatable measurements in industrial environments.

The MAX | Elite is optimized for aerospace, transportation, energy, mining, heavy industry, and MRO applications where large assemblies and complex geometries must be digitized with certified accuracy.

This configuration includes Scan-to-CAD Pro and Inspection modules, delivering a complete workflow for reverse engineering, CAD reconstruction, deviation analysis, and quality control.

Technical Specifications

• Scanner Type: Portable Laser 3D Scanner
• Accuracy: 0.075 mm
• Volumetric Accuracy: 0.075 mm + 0.010 mm/m
• Acceptance Test: ISO 17025 accredited
• Standard Compliance: VDI/VDE 2634 Part 3
• Light Source: 38 blue laser lines
• Working Distance: 0.30 – 2.50 m
• Recommended Part Size Range: 1 – 15 m
• Integrated Photogrammetry: Included
• Data Acquisition Speed: up to 2,250,000 points/sec
• Weight: 1.22 kg
• Laser Class: 2M (eye safe)

Included Software

VXelements Platform:
• Real-time mesh visualization
• Live meshing
• Flex Volume scanning
• Integrated photogrammetry
• Automatic alignment and optimization

Scan-to-CAD Pro:
• Feature extraction
• Parametric surface reconstruction
• Solid modeling
• Direct CAD export

Inspection Module:
• CAD-to-scan comparison
• Color deviation maps
• GD&T analysis
• Automated reporting
