EQUIPMENT DETAILS

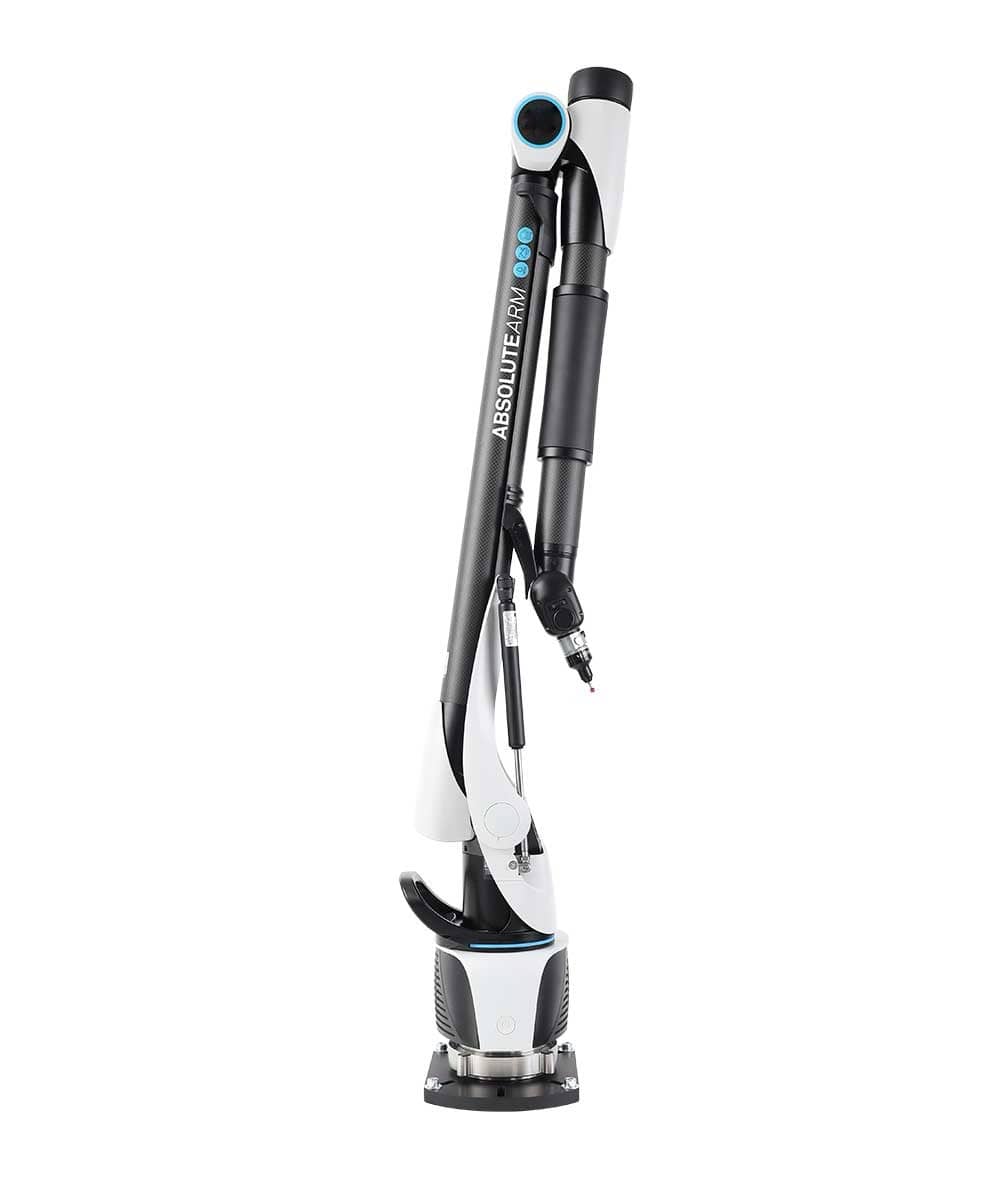

The Hexagon Absolute Arm V3P 8530 6-Axis is a high-precision portable coordinate measuring machine (CMM) from the advanced 85 Series, engineered for accurate tactile inspection of medium-to-large components in industrial environments.

This configuration (Model 8530) offers a 3.0 m measuring range (3.23 m max reach), providing an ideal balance between extended reach and high measurement accuracy. It is well-suited for applications such as assembly inspection, alignment, tooling verification, and quality control across industries including aerospace, automotive, and heavy manufacturing.

The 6-axis configuration is optimized for tactile probing, delivering precise and repeatable point measurements for dimensional inspection. The integrated Absolute Encoder technology eliminates the need for warm-up or referencing, allowing immediate operation and consistent measurement performance.

Constructed from high-strength carbon-fiber materials, the arm ensures excellent rigidity and thermal stability under varying environmental conditions. The Zero-G counterbalance system enhances ergonomics by reducing operator fatigue and improving measurement control during extended workflows.

The Absolute Arm integrates seamlessly with leading metrology software platforms such as PolyWorks, SpatialAnalyzer, and PC-DMIS, enabling efficient inspection processes and advanced reporting capabilities.

Key features include:

* Model-specific configuration: V3P 8530 (85 Series)
* Measuring range: 3.0 m (3.23 m max reach)
* High-accuracy tactile measurement (6-axis)
* Enhanced precision compared to 83 Series
* Absolute encoders – no warm-up or referencing required
* Carbon-fiber structure for stability and durability
* Zero-G counterbalance system for ergonomic operation
* Portable CMM for precision industrial inspection
* IP54-rated for industrial environments
* Compatible with leading metrology software
