EQUIPMENT DETAILS

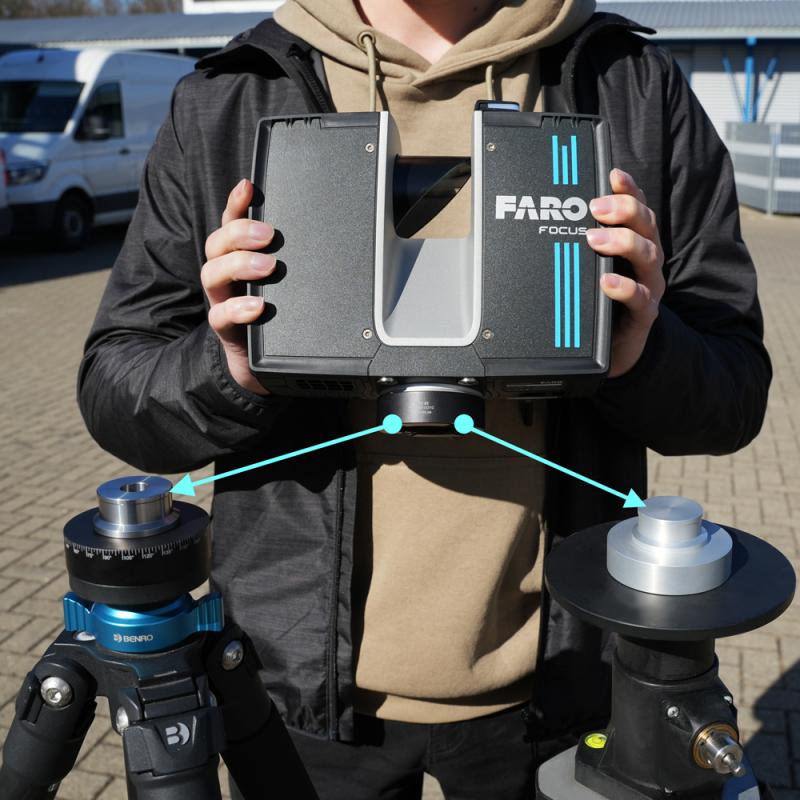

Do you use your FARO Focus scanner with an ATS quick-release system? Would you like to use the scanner with other tripods, such as telescope tripods, without changing the quick release? Then screw this adapter onto the tripod so that you can easily switch the scanner from one tripod to another.

Intended use

• Use of scanners with original FARO/ATS quick release (original FARO item number ACCSS6040 and ACCSS8031)

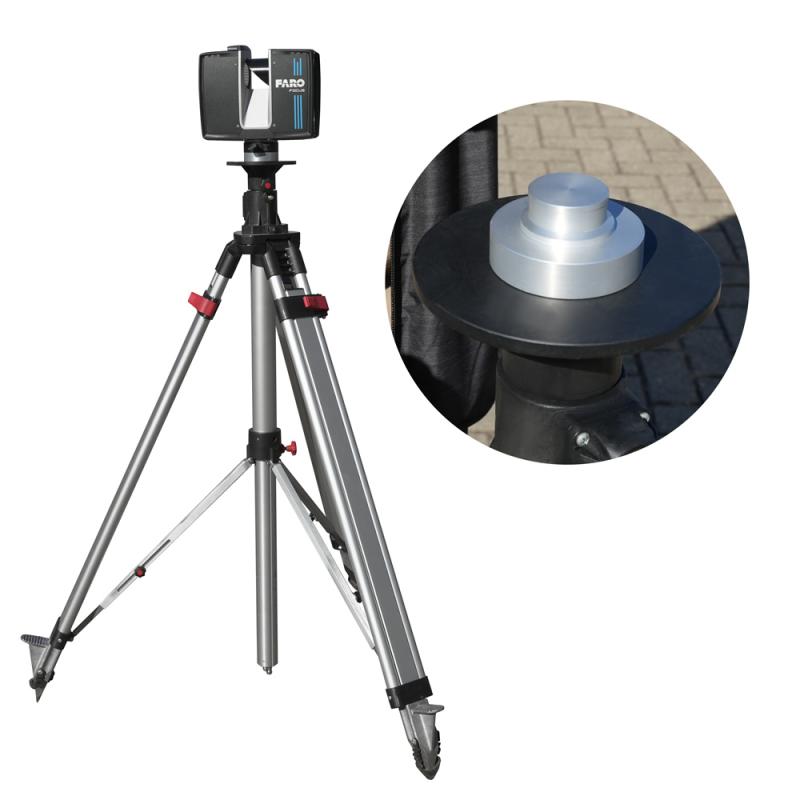

• Attachment to telescope tripods with 5/8” threaded connection to mount FARO scanners with ATS quick release
• When using tripods with 3/8” thread, the adapter 030-13578 is also required

Product characteristics

• Dimensions: Ø 69mm; height: 36mm
• Weight: 220g
• Material: anodized aluminum
• Connection for adapter: Ø 35mm suitable for FARO/ATS quick-release

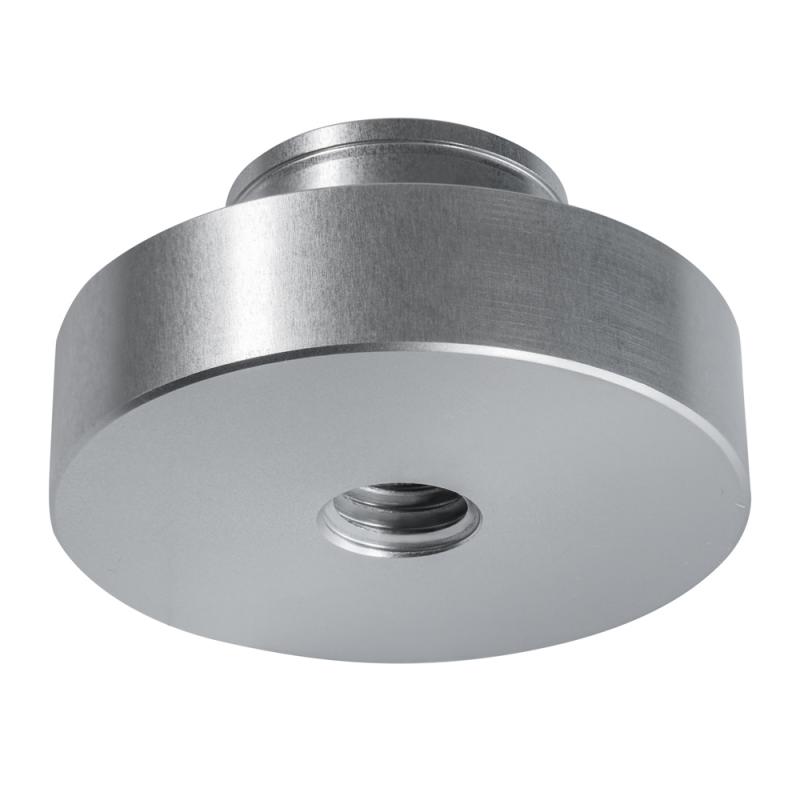

• Tripod connection: 5/8” female thread

Compatibility

• All FARO scanners with an ATS/FARO quick release

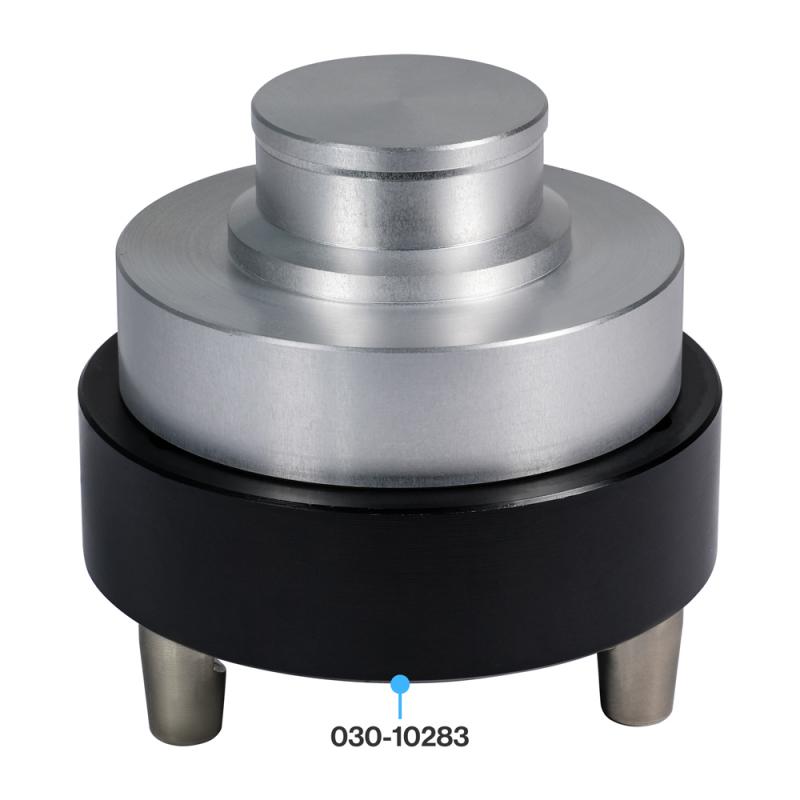

• Universal tribrach adapter 030-10283

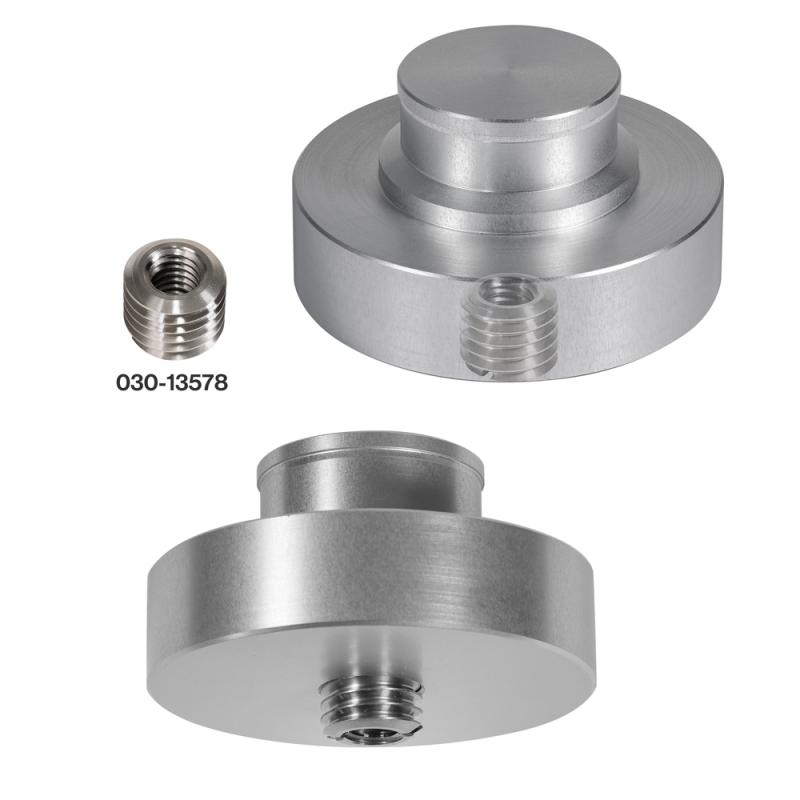

• Adapter 3/8” female thread to 5/8” male thread 030-13578

Delivery content

• 1 tripod adapter with ATS quick release adapter

Synonym: Claw insert
